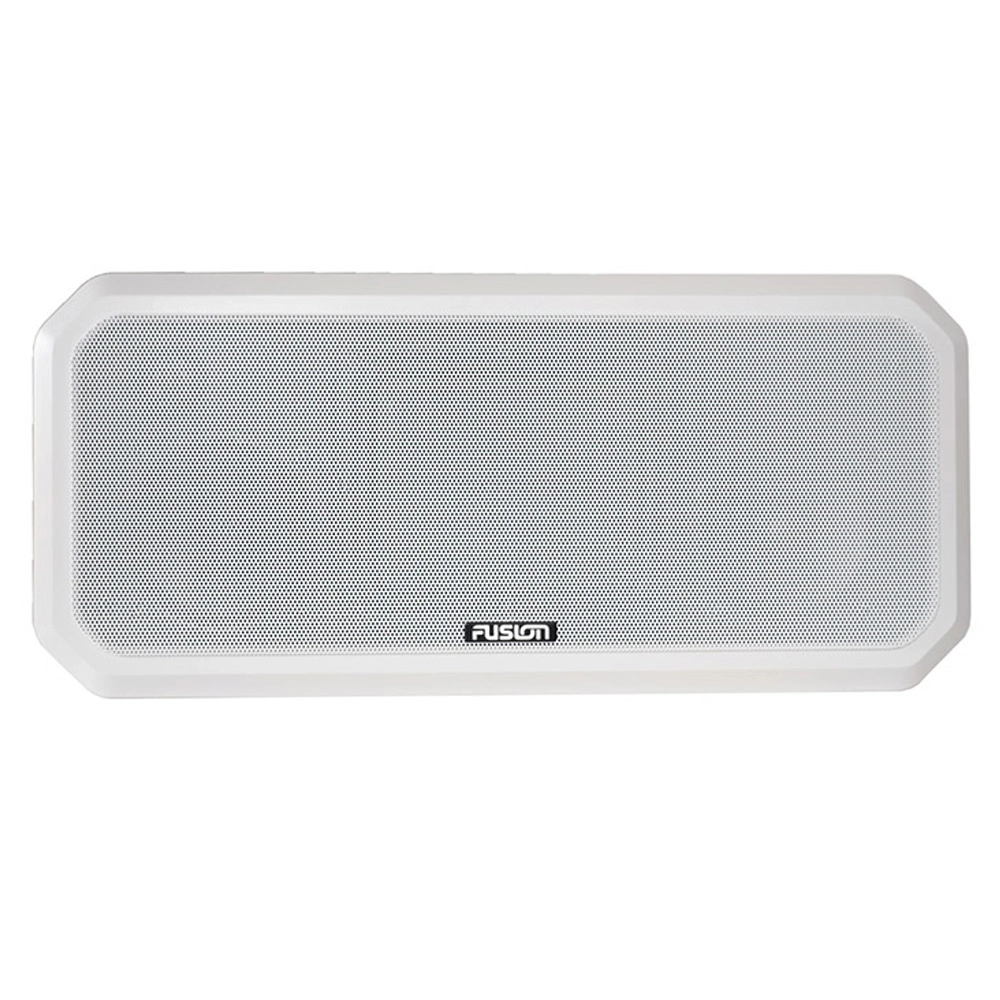

Fusion Sound-Panel All-in-One Shallow Mount Speaker System White

Professional sound quality meets quick and simple installation

The new Fusion Sound-Panel All-in-One Shallow Mount Speaker System solves the age-old problem of delivering professional sound quality from the limitations of shallow mounting depths often required in many installations. Designed for easy installation, both the left and right speaker wires from the source unit or amplifier only need to be wired to one location for connection, saving time and money.

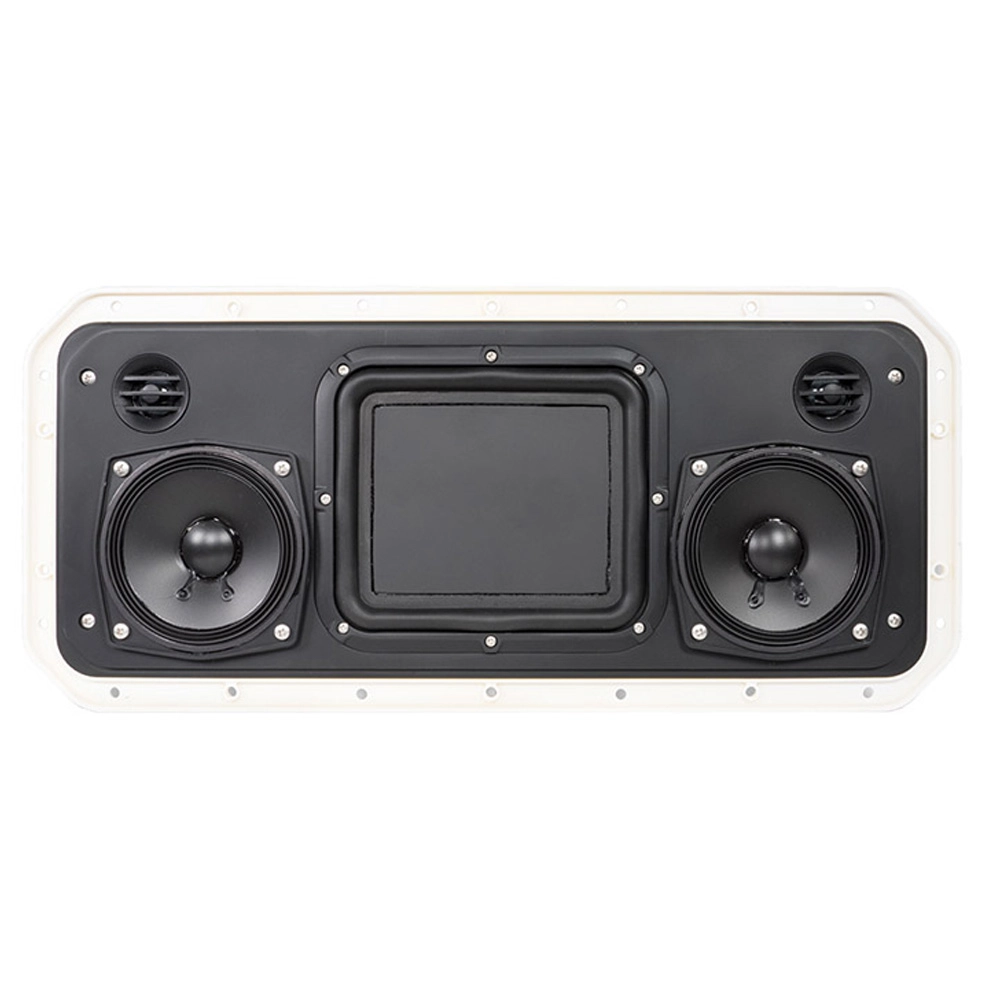

The Sound-Panel boasts two silk dome tweeters, two custom 4" speaker drivers and a bass radiator, all perfectly tuned to the Sound-Panel enclosure. Together this delivers 200 Watts of powerful and high quality audio to your vessel. It's rated IP65 for protection in harsh environments. Perfect for installation on the outside or inside of a boat or RV.

Quick and simple installation
The RV-FS402W is designed for easy installation, saving time and money. The Sound-Panel incorporates a pair of speakers, tweeters and passive radiator. Both the left and right speaker wires from the source unit or amplifier only need to be routed to one location for connection. Only a single cut out is required.

Tuned enclosure
The sealed design protects all drivers and components from being damaged if mounted in cupboards or cavities or outside exposed to the elements. It is perfectly tuned to the tweeters, drivers and bass radiator to deliver high quality audio reproduction in any mounting situation.

Large surface bass radiator
The Sound-Panel utilises a large surface bass radiator design. This design ensures high quality low frequency response in any mounting location. Where others fall short on low end frequency, the Sound-Panel is an all inclusive solution.

Custom 4" speaker drivers
The 2 x 4" custom speaker drivers are designed to deliver full range mids and tuned specifically to the air volume in the enclosure.

Silk dome tweeters
The silk dome tweeters provide a smooth upper frequency response to the sound stage of the Sound-Panel. Matched with the increased efficiency of the high grade materials used in the speaker design, the silk dome tweeter plays a critical role in delivering the Sound-Panel's "Sound Revolution".

Stainless hardware
Stainless steel mounting hardware is included with the RV-FS402W. This limits corrosion and tea staining and keeps the RV-FS402W looking great season after season. The RV-FS402W is an all inclusive solution. The sealed design protects all drivers and components from being damaged if mounted in cupboards or cavities or outside exposed to the elements.

IP65 Weatherproof
The front and rear of the Sound-Panel is rated IP65 and tested against UV, salt fog, dust and water ingress for protection from the harsh marine environments. This makes it perfect for installation on the outside of a vessel.

Four mounting options available (Mounting Spacers available here)

• Flush – With only a 41mm required depth the RV-FS402W will fit flush in most locations.

• 19mm wall depths – With new technology available in construction the RV-FS402W can be semi mounted into the cavity by using the 22mm spacer.

• 25mm wall depths – By using the 16mm spacer the RV-FS402W will semi mount into normal construction panels.

• Surface mount – Installs directly onto any flat surface with no cut out required.

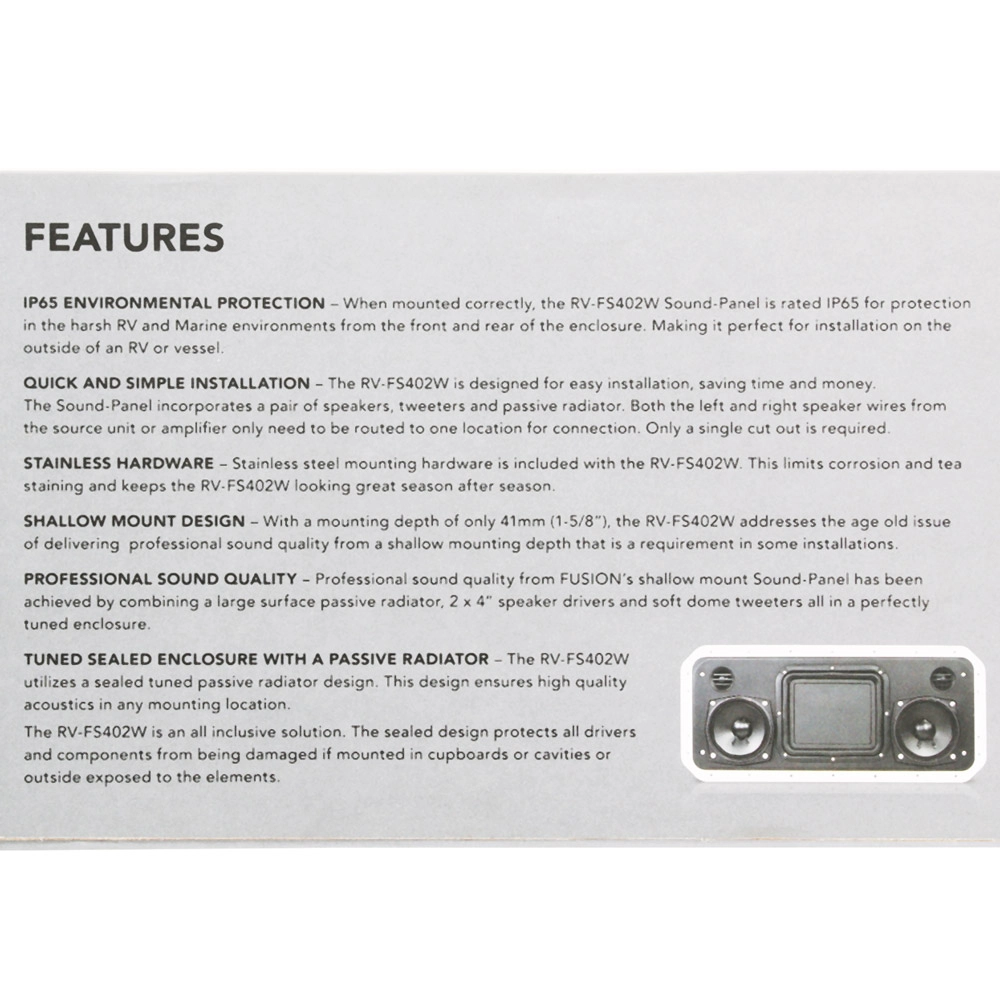

Fusion Sound-Panel All-in-One Shallow Mount Speaker System Features:

• Designed for easy installation

• Left and right speaker wires from the source unit or amplifier only need to be wired to one location for connection

• Two silk dome tweeters, two custom 4" speaker drivers and a bass radiator in one enclosure

• 200 Watts of powerful and high quality audio

• IP65 rated for protection in the harsh marine environment from the front and rear of the enclosure

• Colour: White


Fusion Sound-Panel All-in-One Shallow Mount Speaker System Specifications:

• Tweeter type: Soft dome

• Max power (watts): 100w (per speaker connection)

• RMS power (watts): 25W (per speaker connection)

• Efficiency (1W/1M): 87dB

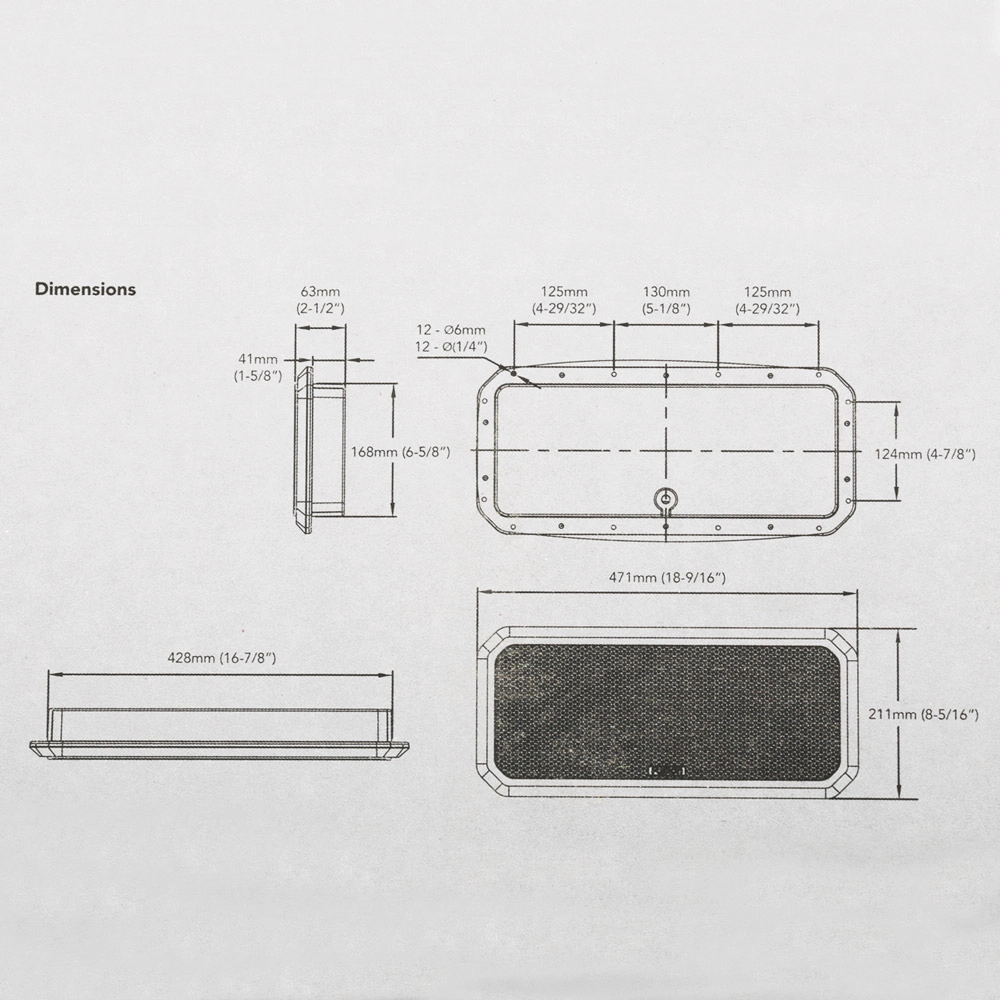

• Minimum mounting depth (clearance): 41mm (1-5/8")

• Mounting dimension (clearance) 431mm x 171mm (17" x 6-3/4")

• Impedance: 4 Ohms

• Frequency response: 67Hz - 20kHz


Fusion Sound-Panel All-in-One Shallow Mount Speaker System Mounting Template
