Garmin ECHOMAP UHD2 65sv 6'' GPS/Fishfinder with GT54 Transducer NZ/AU

Know the water better than a local

When it comes to catching more fish, they say, "talk to a local." The Garmin ECHOMAP UHD2 65sv 6'' GPS/Fishfinder offer's best-in-class sonar and mapping, and premium touchscreen display with keyed-assist. Get navigation and sonar technology with an intuitive interface that combines advanced technology and connectivity to meet the needs of any angler. You'll know the water even better than they do.

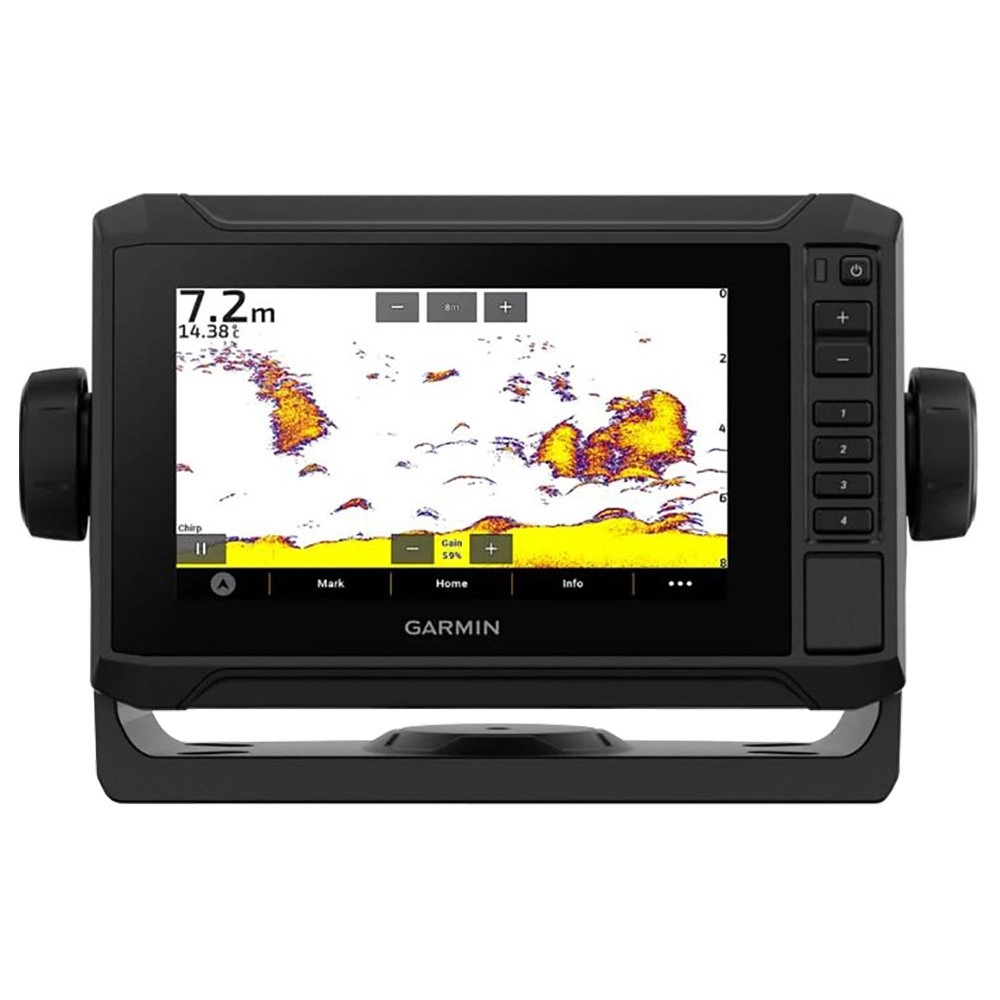

Sonar Support

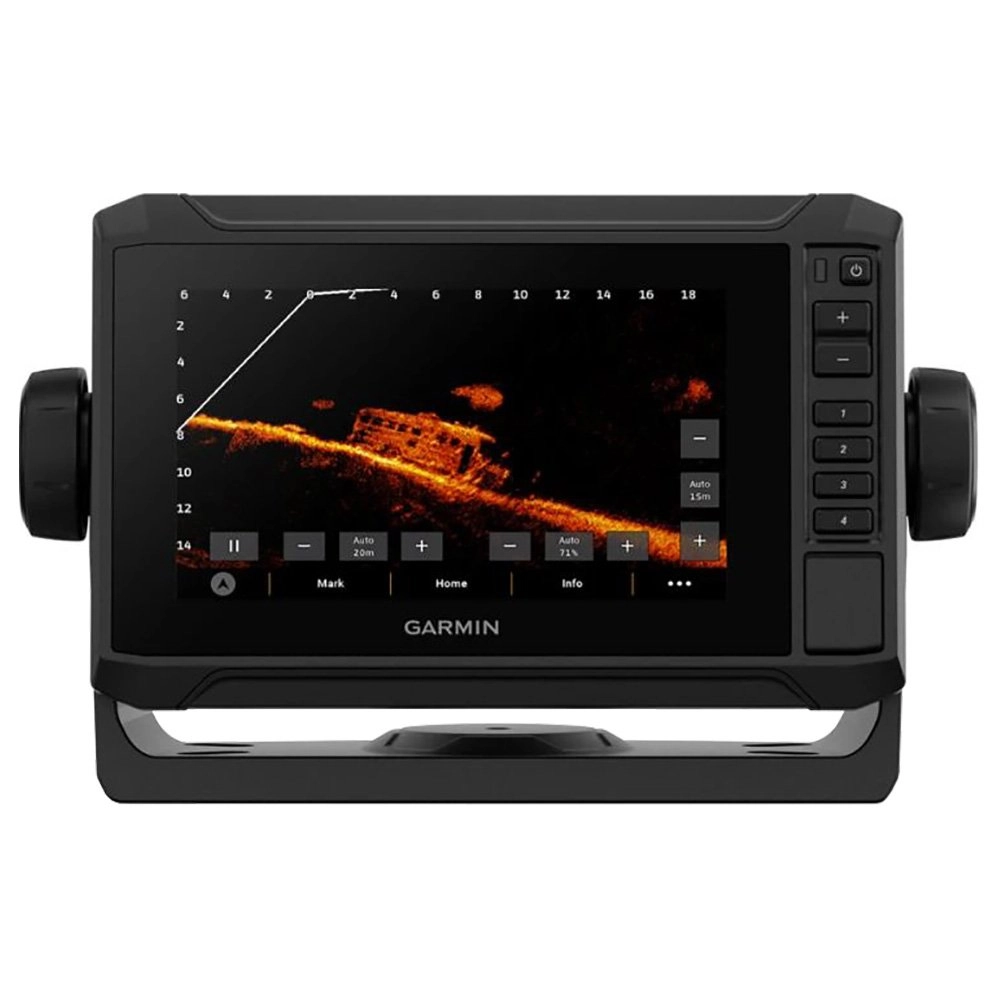

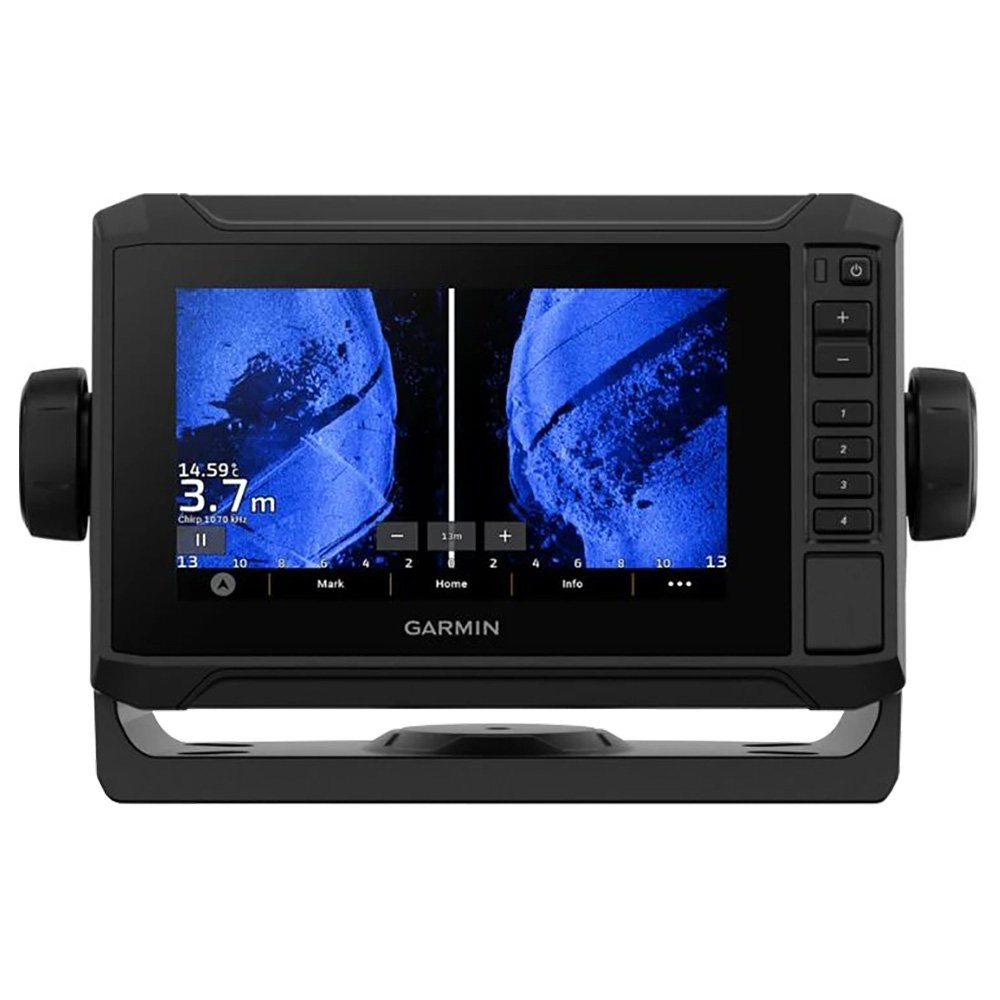

With crisp, clear traditional sonar and brilliant ClearVü and SideVü scanning sonars, fish will have nowhere to hide. Your ECHOMAP UHD2 also supports LiveScope live-scanning sonar.

Vivid Colour Palettes
High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.

Preloaded Charts
You've never seen Garmin cartography like this before. Select chartplotters come with built-in Garmin Navionics+ cartography which includes a 1-year subscription for daily updates, raster cartography and more.

Wireless Networking
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar, waypoints and routes — with them.

ActiveCaptain App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin QuickDraw Community data and more.

Auto Guidance+ technology
Chartplotters with built-in Garmin Navionics+ charts include downloadable Auto Guidance+ technology with the ActiveCaptain app.

Troll with Force
Your ECHOMAP UHD2 wirelessly connects to your Force trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more.

Power-Pole Shallow Water Anchor
By networking select Garmin chartplotters with a Force trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and auto guidance5 end-of-route anchoring. Spend more time fishing, less time positioning.

CHARGE Integration from Power-Pole
Your CHARGE Marine Power Manager from Power-Pole integrates with compatible Garmin chartplotters to help keep your battery power going longer and stronger on the water. You're able to charge batteries on the run, monitor power use, select where power is allocated, control emergency starts and even transfer power between battery banks — all from your chartplotter display.

Multi-band GPS
Get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS.

Garmin ECHOMAP UHD2 65sv 6'' GPS/Fishfinder Features:

• The bright 6" touchscreen display with keyed-assist is user-friendly and easy to read
• Crisp, clear traditional sonar and brilliant ClearVü and SideVü scanning sonars
• High-contrast vivid colour palettes for improved detail and distinguished targets
• Wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter
• Built-in Garmin Navionics+ cartography
• Built-in Wi-Fi connectivity pairs with the free all-in-one ActiveCaptain App
• Includes downloadable Auto Guidance+ technology
• Wirelessly connect to your Force trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life and more
• CHARGE Marine Power Manager integrates with compatible Garmin chartplotters to help keep your battery power going longer on the water
• Includes GT54 Transducer

Garmin ECHOMAP UHD2 65sv 6'' GPS/Fishfinder Specifications:

General

• Product code: 010-02682-20
• Dimensions: 20.6 x 13.1 x 6.7 cm (8.1 x 5.2 x 2.6 in)
• Weight: 0.8kg
• Waterproof: IPX7
• Touchscreen: Yes
• Display type: WVGA, TN
• Display size: 13.8 x 7.8 , 15.7 cm) (5.4 x 3.1, 6.2 in)
• Display resolution: 800 x 480 pixels
• Mounting options: Bail or flush
• Input: Touchscreen with Keyed Assist

Maps and Memory

• Accepts Data Cards: 1 microSD card; 32GB maximum size
• Waypoints: 5000
• Track points: 50000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Sensors

• GPS: Yes
• GLONASS: Yes
• Galileo: Yes
• BeiDou: Yes
• Has built-in receiver: Yes
• Receiver: 10 Hz: Yes
• NMEA 2000 Compatible: Yes
• Supports WAAS: Yes
• Supports multi-band, multi-constellation GPS: Yes

Built-in Maps

• Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)
• Garmin Navionics+ Inland and Coastal: Yes
• Garmin Navionics+ (Coastal): Yes
• Garmin Navionics+ (Inland): Yes
• Tide tables: Yes

Chartplotter

• AIS: Yes
• DSC: Yes
• Supports Fusion-Link compatible radios: Yes
• ActiveCaptain Mobile Planning Compatible: Yes
• Sailing Features: Yes

Electrical

• Power Input: 9 to 18 VDC
• Typical current draw at 12 VDC: 1.53 A
• Maximum current draw at 12 VDC: 3.2 A
• Maximum power usage at 10 VDC: 18.4 W

Sonar

• Displays sonar: Yes
• Power output: 500W
• Traditional sonar (dual frequency/beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
• ClearVü: Built-in 260/455/800/1000/1200 kHz
• SideVü: Built-in 260/455/800/1000/1200 kHz
• Panoptix sonar: Yes
• LiveScope: Yes

Connections

• NMEA 2000 ports
• Garmin Marine Network Ports: 1
• 12-pin transducer ports: 1
• BLUETOOTH pairing: Yes
• ANT+ (Connectivity): Yes
• Garmin Wi-Fi network (local connection): Yes

What's in the Box:

• ECHOMAP UHD2
• GT54-TM transducer
• Power cable
• Tilt/swivel mount with quick release cradle
• Protective cover
• Hardware
• Documentation
