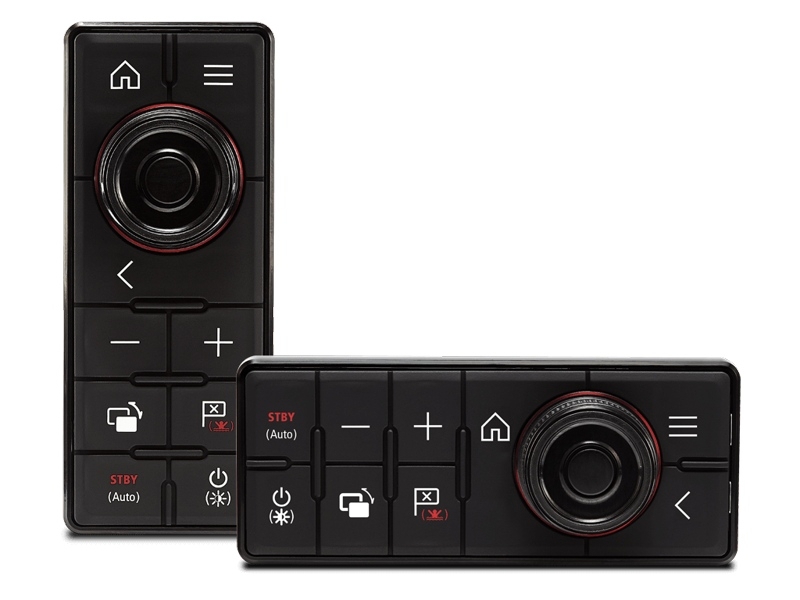

Raymarine RMK-10 with Portrait and Landscape Keypad

So you can have full control

The new Raymarine RMK-10 with Portrait and Landscape Keypad is an ultra-compact wired keypad accessory that provides full control of aSeries, cSeries, eSeries, eS Series and gS Series Multifunction Displays (MFDs) from any mounting location. The fully backlit RMK-10 includes dedicated keys for home, menu, zoom in/out, window control, waypoint management, power/brightness, as well as Evolution autopilot control. RMK-10 also features the same multifunction rotary controller with the integrated cursor pad found on eS Series multifunction displays

The Raymarine RMK-10 with Portrait and Landscape Keypad can be surface-mounted or flush-mounted and is available with key mats for horizontal or vertical installation. This gives you the flexibility to install the RMK-10 just about anywhere. Utilising Raymarine's RayNet high-speed networking, the RMK-10 can be set up to control a single multifunction display or multiple displays mounted at the same location. When controlling multiple displays on the same helm, the RMK-10 provides seamless control across all of the displays.

When used with aSeries or gS Series Multitouch displays, the RMK-10 brings full HybridTouch control capability to these products. The RMK-10 integrates seamlessly with the LightHouse II user interface and allows the navigation system to be operated solely by touch, by keypad, or any variation between.

Raymarine RMK-10 with Portrait and Landscape Keypad Specifications:
Power

• PoE class: Class 1
• Nominal supply voltage: 12 / 24 V dc
• Operating voltage range: 10.8V dc to 31.2V dc
• Power consumption: 3.84W
• Power supply: 12V power in

Environmental:

• Operating temperature: -25 degrees C to +55 degrees C (-13 degrees F to 131 degrees F)
• Storage temperature: -30 degrees C to +70 degrees C (-22 degrees F to 158 degrees F)
• Relative humidity: Maximum 75%
• Waterproof rating: IPX6

Wired Connections:

• Network / power: 1 x RayNet connector / (gS Series - 1000 Mb/s plus PoE) / (aSeries , cSeries, eSeries - 100 Mb/s)
• Alternate power: 1 x power connector

What's in the box:

• Keypad
• Landscape keypad mat
• Portrait keypad mat
• Mounting gasket
• 4 x mounting fixings
• Documentation pack
• Right angled power cable 2m (6.6ft)
• RayNet network cable 2m (6.6ft)
