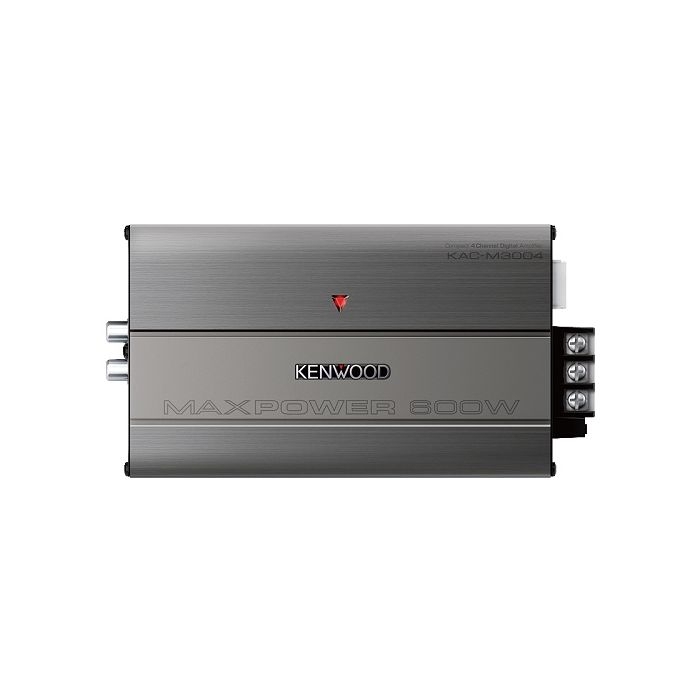

Kenwood KAC-M3004 Compact 4-Channel Digital Amplifier 400W

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Fusion MS-AM402 Marine Amplifier 400W

Fusion MS-AM402 Marine Amplifier 400W
Why pay $329.00
ONLY $309.00
SAVE $20.00!
Details

Details

Designed to last

The Kenwood KAC-M3004 Compact 4-Channel Digital Amplifier is designed for compact performance so it can fit even the most limited installation areas. This amplifier also uses a conformal coated main PCB (printed circuit boards) which offers extra layers of protection to help prevent moisture or damp air from damaging the product.

Kenwood KAC-M3004 Compact 4-Channel Digital Amplifier Features:
  • CEA-2006 Compliant
  • Class D
  • 2 Ohms Load Capability
  • Speaker Level Input
  • Signal Sensing Turn-on
  • Power MOS-FET Switching Power Supply
  • Extruded Aluminium Heat Sink Design

    • Kenwood KAC-M3004 Compact 4-Channel Digital Amplifier Specifications:
    • Power Output: 50 Watts RMS x 4 at 4 Ohms and ≤1%THD+N
    • Signal-to-Noise Ratio: 76dBA (Reference: 1Watt into 4Ohms)
    • Maximum Power Output: 600W
    • Signal to Noise Ratio: 89dB (Reference: Rated Power into 4Ohms at 14.4V)
    • Frequency Response: 20Hz-20kHz (+0dB, -1dB)
    • Input Impedance: 10k ohm
    • Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
    • Bridged connection: 4Ω to 8Ω allowable
    • Dimensions(WxHxD): '6-1/2 X '1-3/4 X '3-7/8 inch
    • Operating Voltage: 14.4V（11-16V allowable）
    • Current Consumption: 22 A

    Audio Section
    • Low-Pass Filter: Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct)
    • High-Pass Filter: Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct)
    • Filter Selector 1: LPF-OFF-HPF
    • RCA Input Sensitivity: 0.2 V - 5.0 V
    • Speaker Level Input Sensitivity: 4.0 V - 12.0 V

    Terminals
    • Battery & Ground: Screw Type Terminal Block (Ni) (M4)
    • Speaker Output: MOLEX Connector with AWG16 200mm Wire
    • Line In: RCA (Ni)
