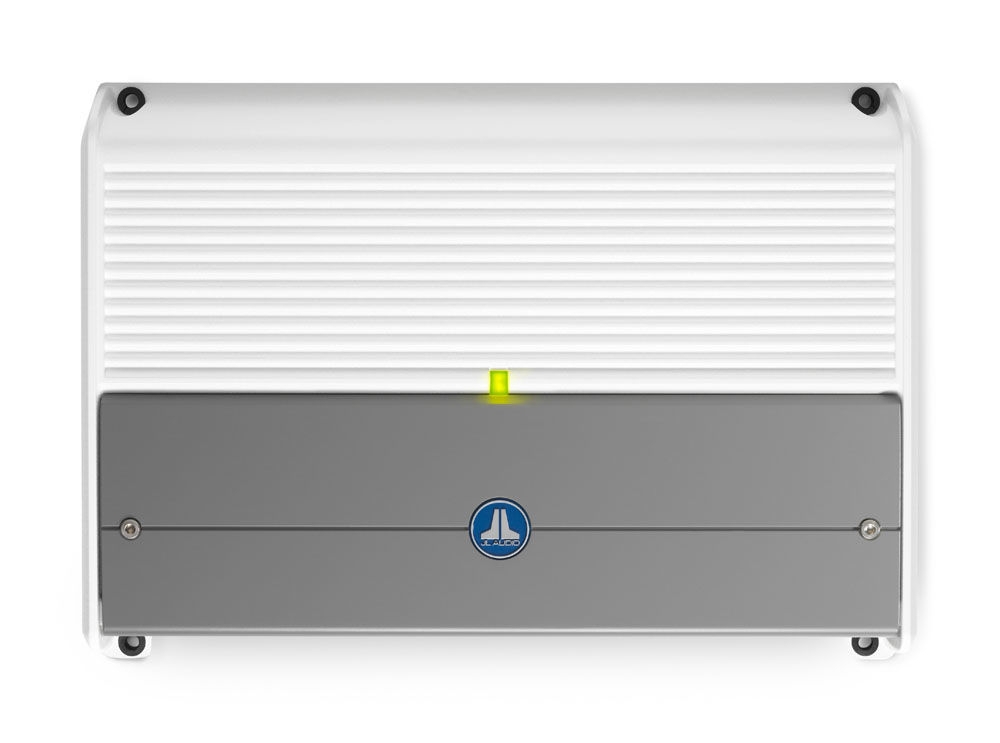

JL Audio M600/6 6-Channel Class D Full-Range Marine Amplifier 600W
JL Audio M600/6 6-Channel Class D Full-Range Marine Amplifier 600W
Deliver to:
Auckland 0626,
NZ
Estimated:
$0.00
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Compact and powerful
The JL Audio M600/6 6-Channel Class D Full-Range Marine Amplifier is an incredibly flexible amplifier that packs a serious full-range punch and delivers a staggering 100 watts to each of its six channels into 2 Ω (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is NexD ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.
With the M600/6, you have lots of great options. Use it as a six-channel satellite amplifier with 75 W x 4 @ 4 Ω, or bridge four of its channels to create a staggered power four-channel amplifier with 200W x 2 @ 4 Ω to one pair of satellites and 75 W x 2 @ 4 Ω to a secondary pair of satellites. You can also drive two subwoofers with 200 W each, plus a pair of satellites with 75W x 2. The M600/6 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an HD-RLC remote level control (sold separately), you have the ability to control the level of two, four or all six of the amplifier's channel levels from a remote location.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
JL Audio M600/6 6-Channel Class D Full-Range Marine Amplifier Specifications:
- Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power: >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W: >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω: >150 / 50 Hz
- Damping Factor @ 2 Ω: >75 / 50 Hz
- THD+N (Total Harmonic Distortion plus Noise) @ Rated Power: <1% @ 2 Ω per Ch.
- Input Voltage Range @ RCA Inputs: 100 mV - 4 V RMS
- Min.Copper Power / Ground Wire Gauge: 4 AWG wire
- Fuse Rating: 50 A (AFS, AGU or MaxiFuse)
- Dimensions (HxWxD): 2.05 x 10.23 x 7.09in (52 x 260 x 180mm)
- Net Weight: 5.8 lb / 2.63 kg
