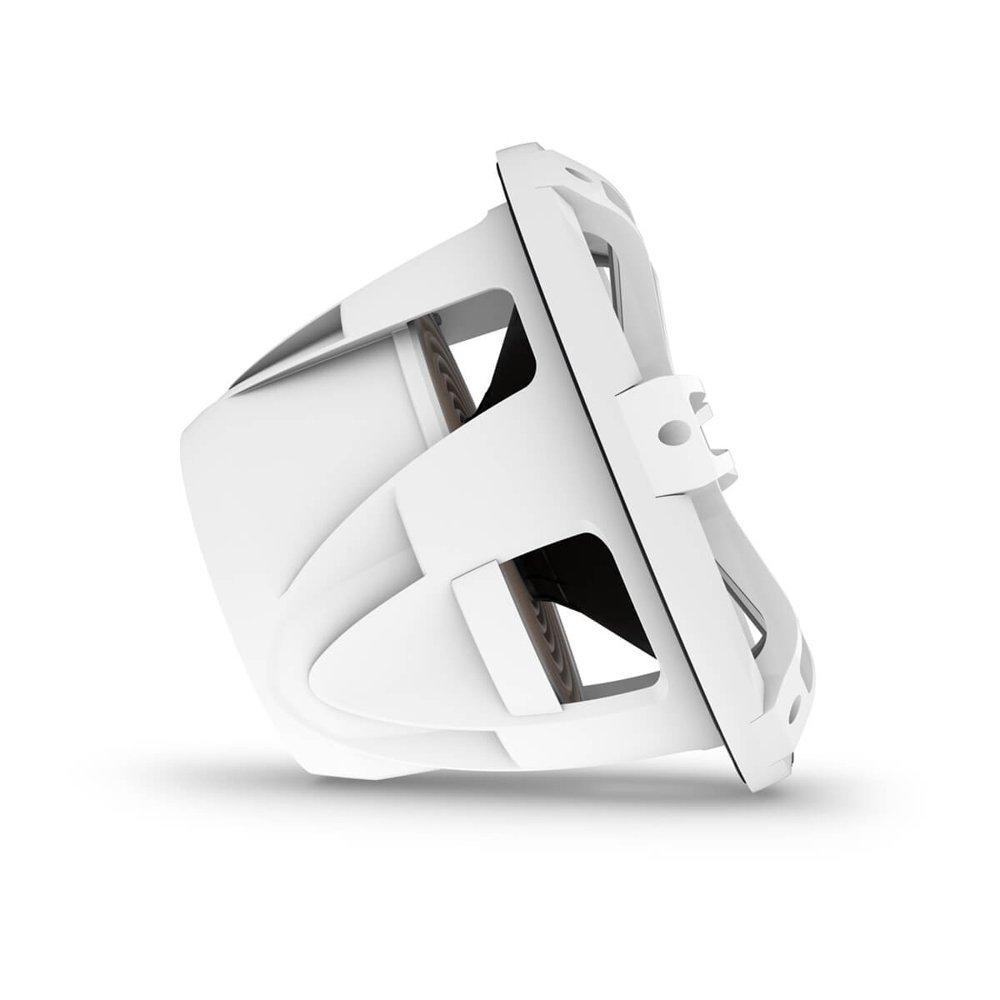

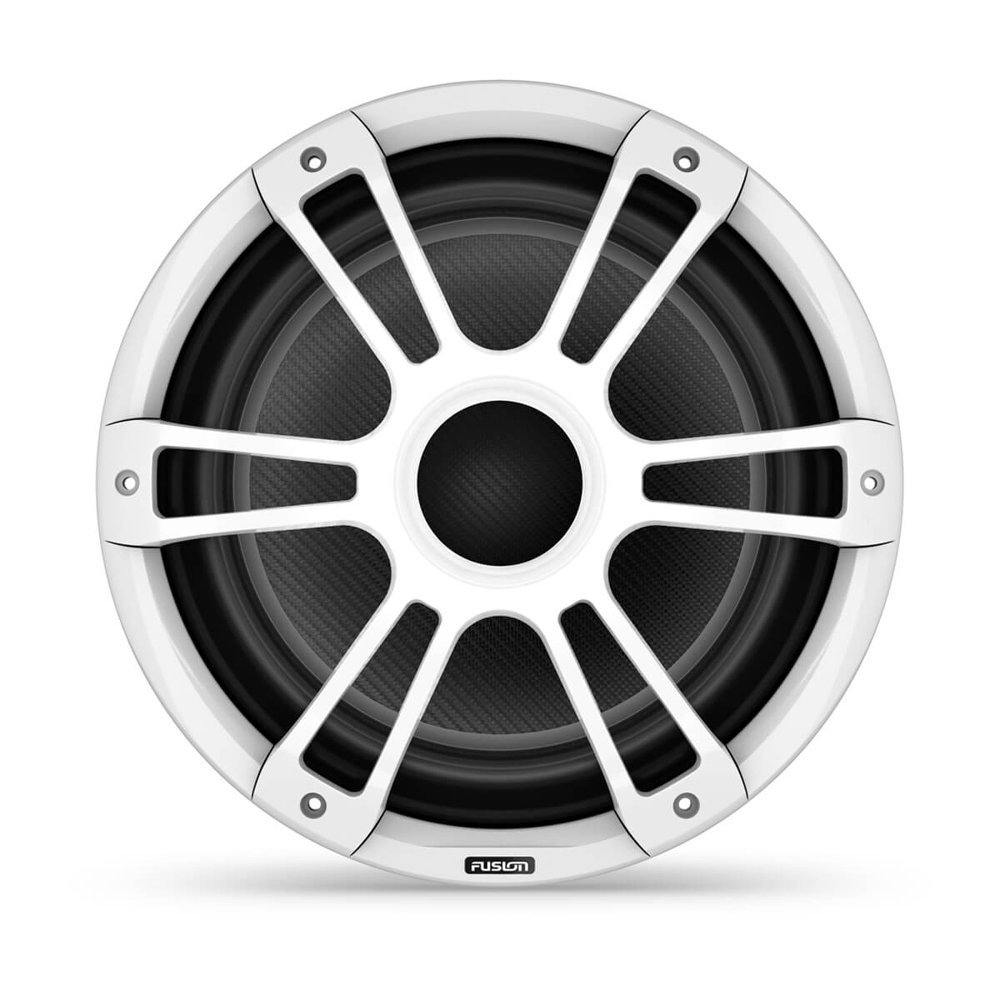

Fusion Signature 3i Sports LED Marine Subwoofers White 12in 1400W

Premium onboard audio experience

Fusion Signature 3i Sports LED Marine Subwoofers deliver top-of-the-line audio with premium low frequencies to enhance your listening experience. These subwoofers bring the thunder for your aquatic expeditions like never before. The marinised design has been rigorously tested and rated to IP65 for the utmost defence against the elements. Plus, water-resistant connectors provide simplified installation and superior protection. Backed by a 3-year warranty, Fusion Signature 3i Sports LED Marine Subwoofers are built to last season after season.

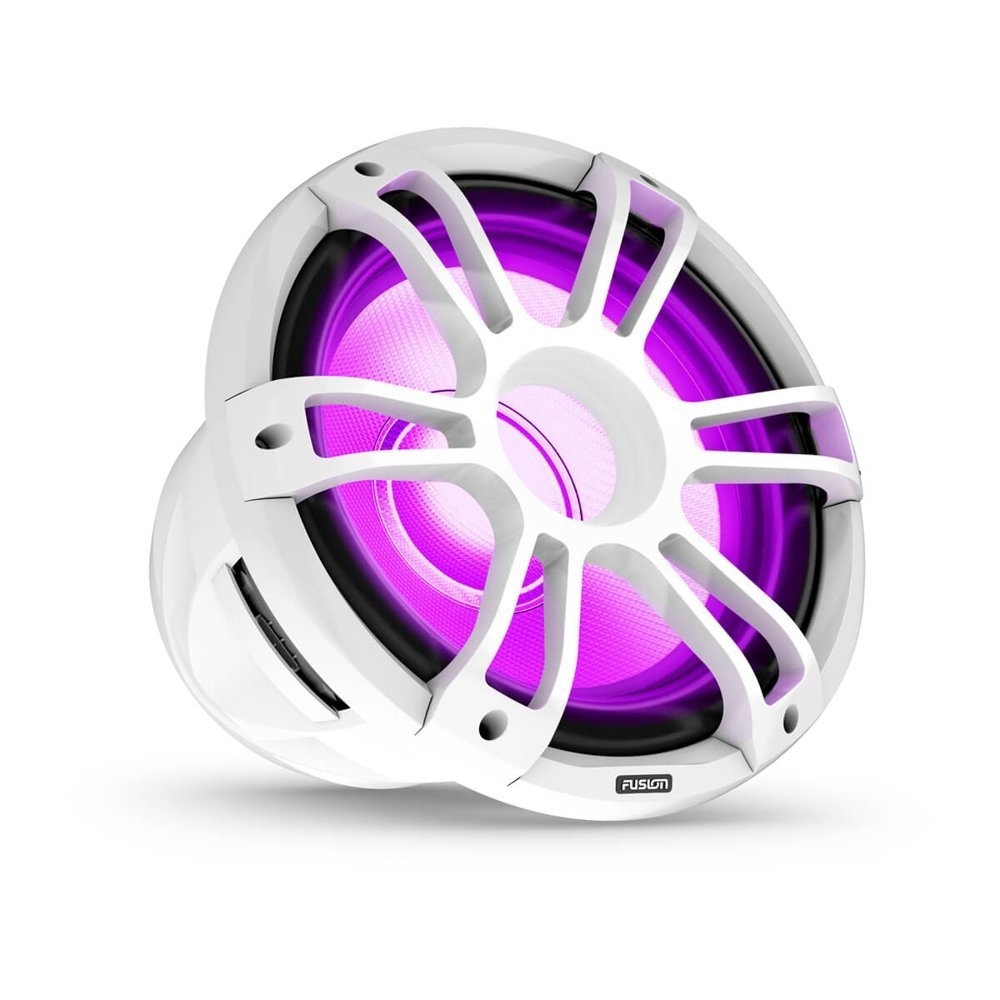

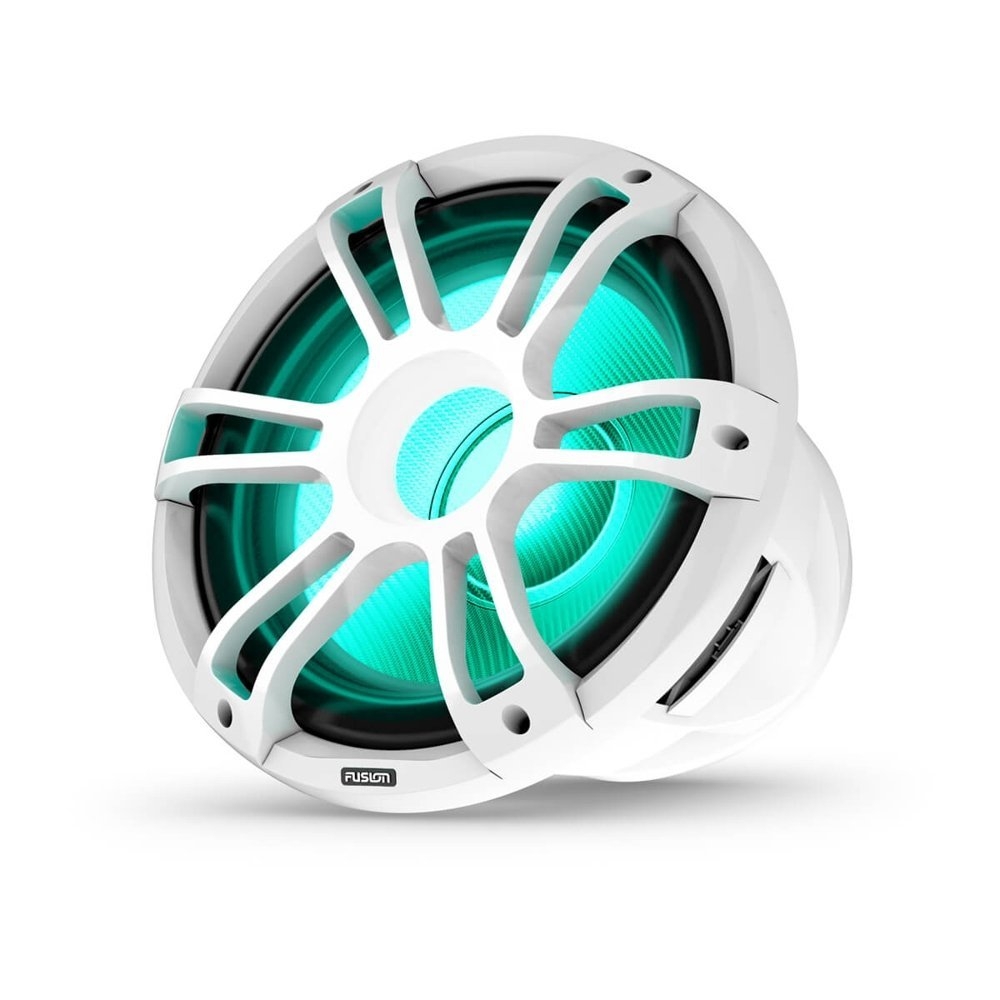

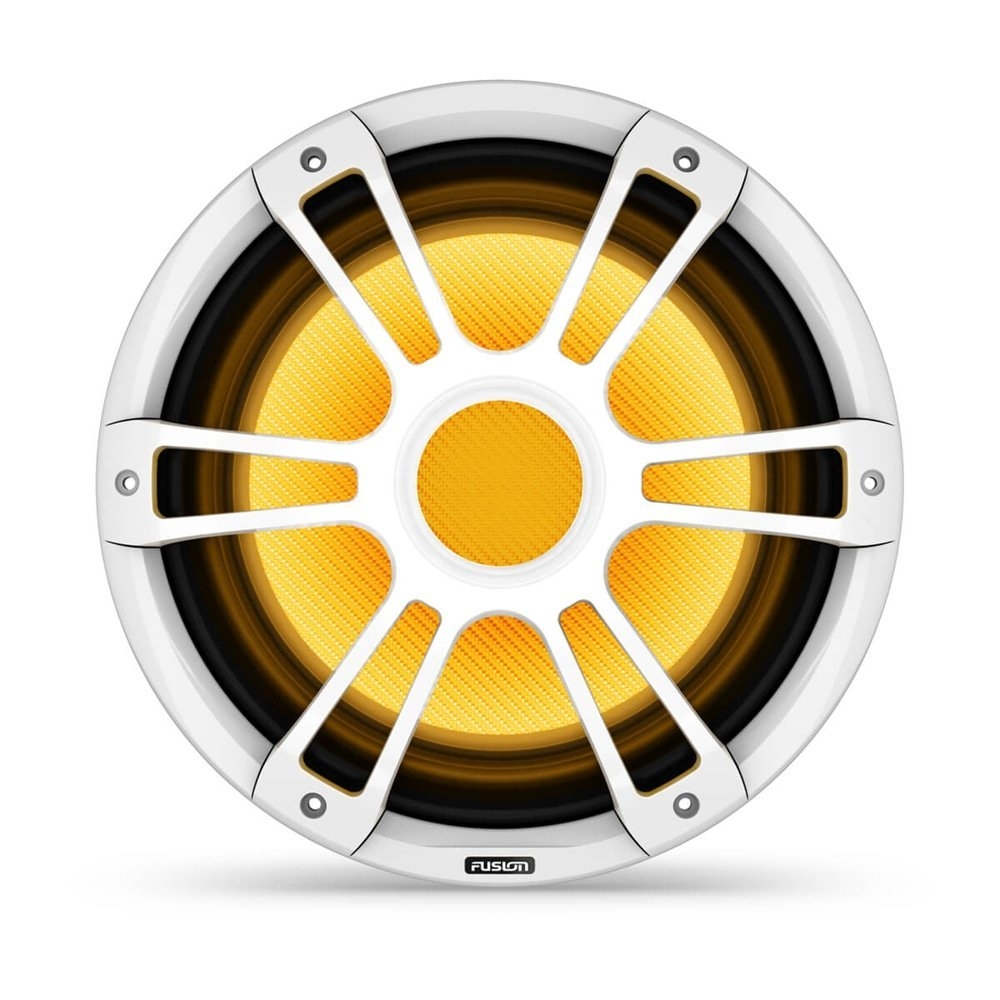

LED Illumination
This CRGBW LED sports-style version of the Signature Series 3i lets you set the scene on your boat with colourful LED illumination. You can choose a colour to match the mood of your music - cool white, red, green, blue or warm white.

Marinised Connectors
New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.

Redesigned Grille
Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.

True-Marine Philosophy
Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.

Polypropylene Cone Technology
This technology provides exceptional self-dampening, high-fidelity and bass reproduction to give you the most premium onboard listening experience imaginable.

System Integration
These subwoofers are designed to work optimally with Fusion stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion Audio smart-device app for setup.

Fusion Signature 3i Sports LED Marine Subwoofers Features:

• LED illumination
• CRGBW light colour choices
• Sports style grille
• Suited for the marine environment
• Water-resistant connectors
• Simplified installation
• IP65 protection rating
• Polypropylene cone technology
• Exceptional self-dampening, high-fidelity and bass reproduction
• Works optimally with Fusion stereo systems and amplifiers (sold separately) with custom DSP profiles
• Backed by a 3-year warranty
• Sold as pair

Fusion Signature 3i Sports LED Marine Subwoofers Specifications:

• Dimensions (diameter x depth): 14.02 x 10in (356 x 254 mm)
• Weight: 10.93 kg
• Protection rating: IP65
• Peak power: 1400 watts
• RMS power rating: 700 watts
• Sensitivity (1 watt @ 1 metre): 86 dB
• Magnetic structure: 114 oz
• Frequency response: 20 Hz-2 kHz
• Nominal impedance: 4 ohm
• Recommended amplifier power (watts RMS): 200-1000 watts
• LED lighting: Yes, CRGBW
• LED supply voltage: 10.8-16 VDC
• LED load current @14.4 VDC (max): 300 mA
• Operating temperature range: 32-122 degrees F (0-50 degrees C)
• Voice coil diameter: 4in
• Cone material: Polypropylene cone with rubber surround
• Compass-safe distance: 181in (460 cm)
• Subwoofer connection: Flying lead with water-resistant 2-way connector 5.9in (150 mm)
• LED connection: Flying lead with water-resistant 6-way connector 5.9in (150 mm)
• Warranty: 3 years
• Mounting diameter clearance: 12.05in (306 mm)
• Mounting depth clearance: 8.15in (207 mm)
• Optimum enclosure recommendations:

  • Sealed enclosure volume (fully filled with absorption material): 2.12 cubic ft (60 L)
  • Ported (vented) enclosure volume (lined with absorption material): 8.83 cubic ft (250 L)
  • Port diameter: 4in (101.6 mm)
  • Port length: 5in (127 mm)

What’s in the box:

• 1 x Pair of Fusion Signature 3i Sports LED Marine Subwoofers
• 6 x Phillips stainless steel mounting screws 4.8 x 50 mm (10 gauge x 2)
• 1 x Water-resistant cable assembly with 2-pin connector 5.9in (150 mm)
• 1 x Water-resistant cable assembly with 6-pin connector 5.9in (150 mm)

Fusion Signature 3i Sports LED Marine Subwoofers Product Data Sheet
