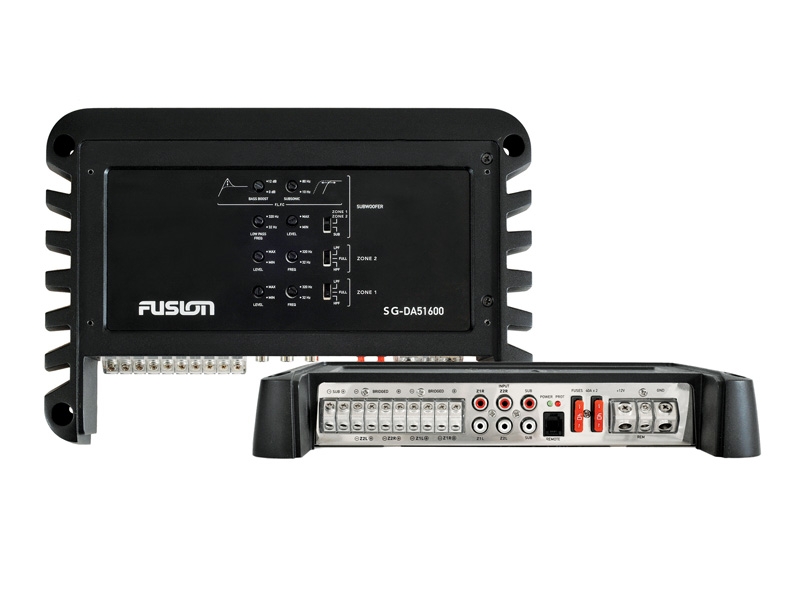

Fusion SG-DA51600 Signature Series 5-Channel Marine Amplifier 1600w

Powerful amps that let your subs hit loud and proud

The Fusion SG-DA51600 Signature Series Marine 5-Channel Amplifier 1600w is purpose-built for the marine environment, boasting some of the most impressive environmental protection available, to deliver a Signature performance on the water like never before. Introducing Fusion's most efficient, stunning and powerful marine amplifier, the stainless steel SG-DA51600 will resist corrosion and the incredible 1600 watt output (peak) will power 4 speakers and 1 subwoofer with ease.

The SG-DA51600 is FUSION's first 5 Channel Class-D Hi-Fi Marine amplifier; the key benefit of a Class-D amplifier is low battery drain with a high output, making this the perfect amplifier for the marine environment. The SD-DA51600 has conformal coated PCB's for maximum product life and performance plus the amplifier chassis acts as a heat sink; reducing component core temperature and increasing efficiency.

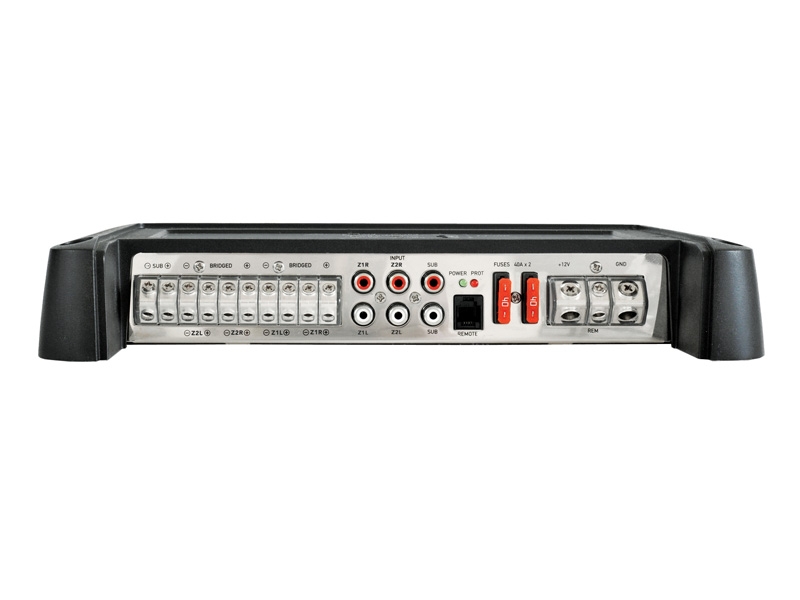

Undeniably a stand out piece; the stunning stainless steel mirror install panel offers practical confinement of all cable connections and tuning controls, while delivering good looks that complement any installation. Outputs include Subwoofer plus four speaker channels for sound front and rear. RCA line-level inputs are included, for easy connection to new or existing systems.

Fusion SG-DA51600 Signature Series Marine 5-Channel Amplifier 1600w Features:

• Designed for the marine environment

• Stainless steel housing

• Incredible 1600w peak output will power 4 speakers and 1 subwoofer

• 5-channel Class-D Hi-Fi Marine amplifier

• Low battery drain with a high output

• Heat-tempered and conformal coated PCB's for maximum product life

• Stainless steel mirror install panel

• Outputs include Subwoofer plus four speaker channels for sound front and rear

• RCA line-level inputs are included, for easy connection to new or existing systems


Fusion SG-DA51600 Signature Series Marine 5-Channel Amplifier 1600w Specifications:

• Frequency Response: 10Hz - 50kHz

• Peak Power: 1600 Watts

• Rated Power: 80 Watts RMS x 4 + 250W RMS x 1 @ 4 Ohm 1% THD+N

• Rated Power: 130 Watts RMS x 4 + 330W RMS x 1 @ 2 Ohm 1% THD+N

• Rated Power: 250 Watts RMS x 2 @ 4 Ohm Bridged 1% THD+N + 250W RMS x 1 @ 4 Ohm 1% THD+N

• Mounting Dimensions:
  Depth: 210mm
  Height: 50mm
  Length: 300mm


Fusion SG-DA51600 Signature Series Marine 5-Channel Amplifier 1600w User Manual
