Smoother and more efficient than ever

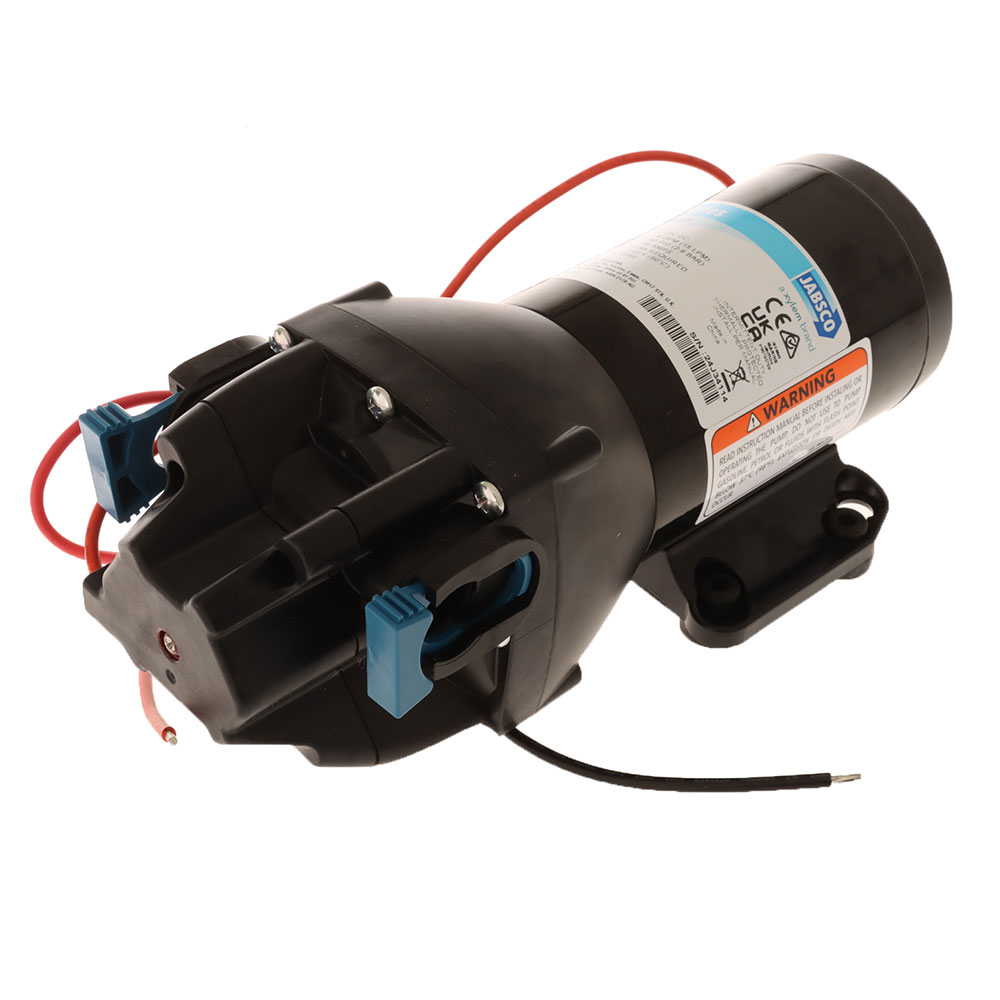

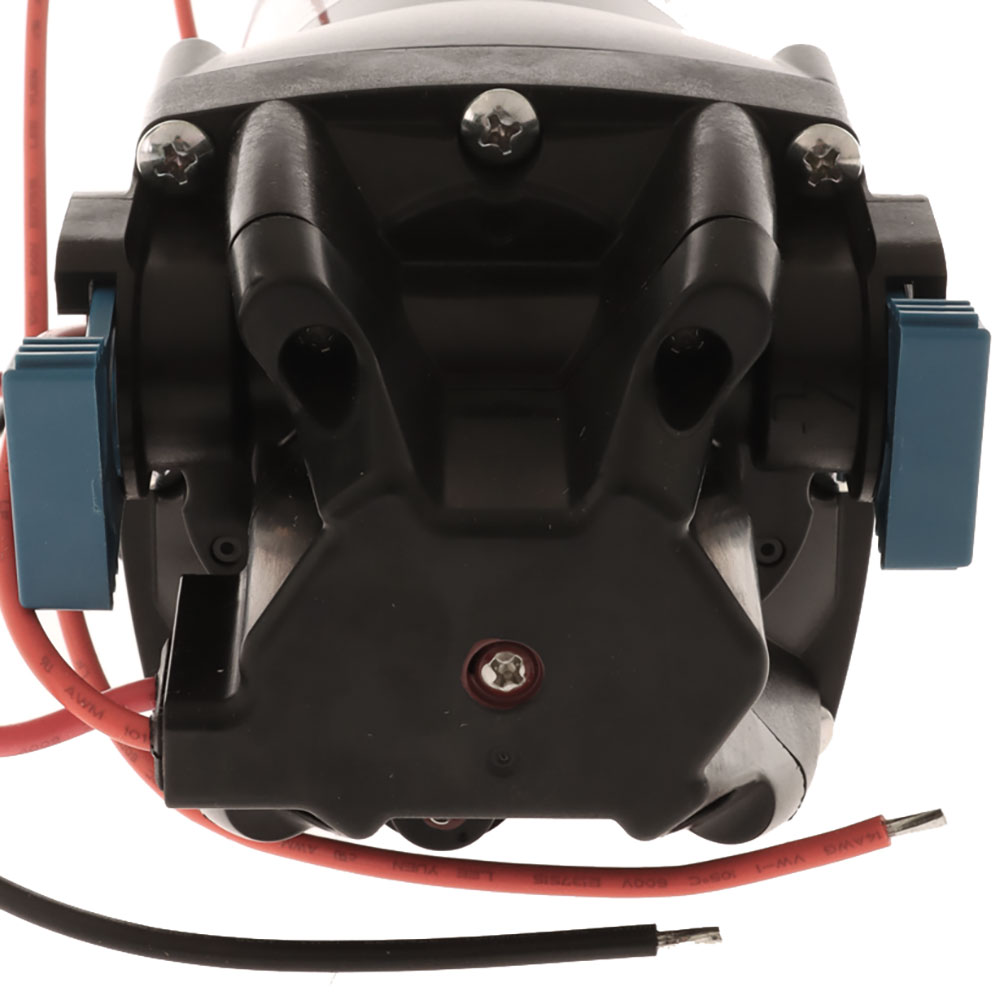

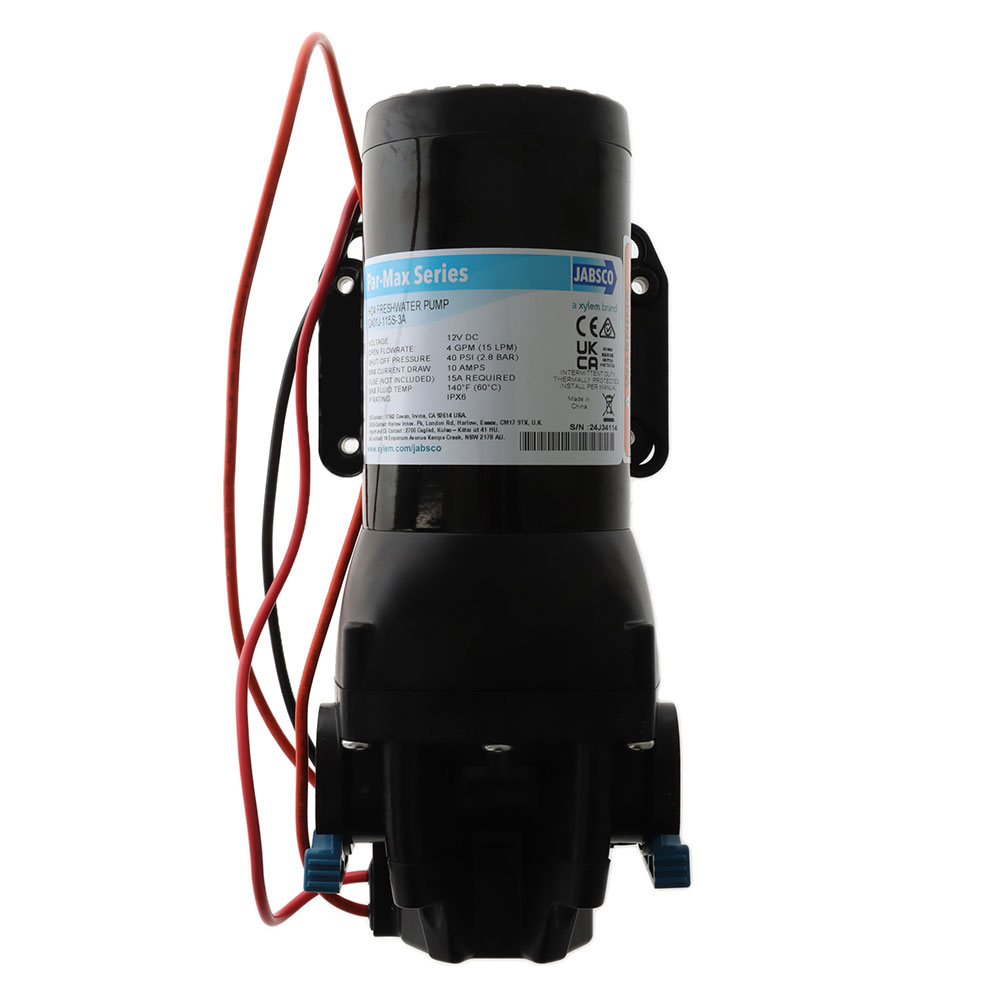

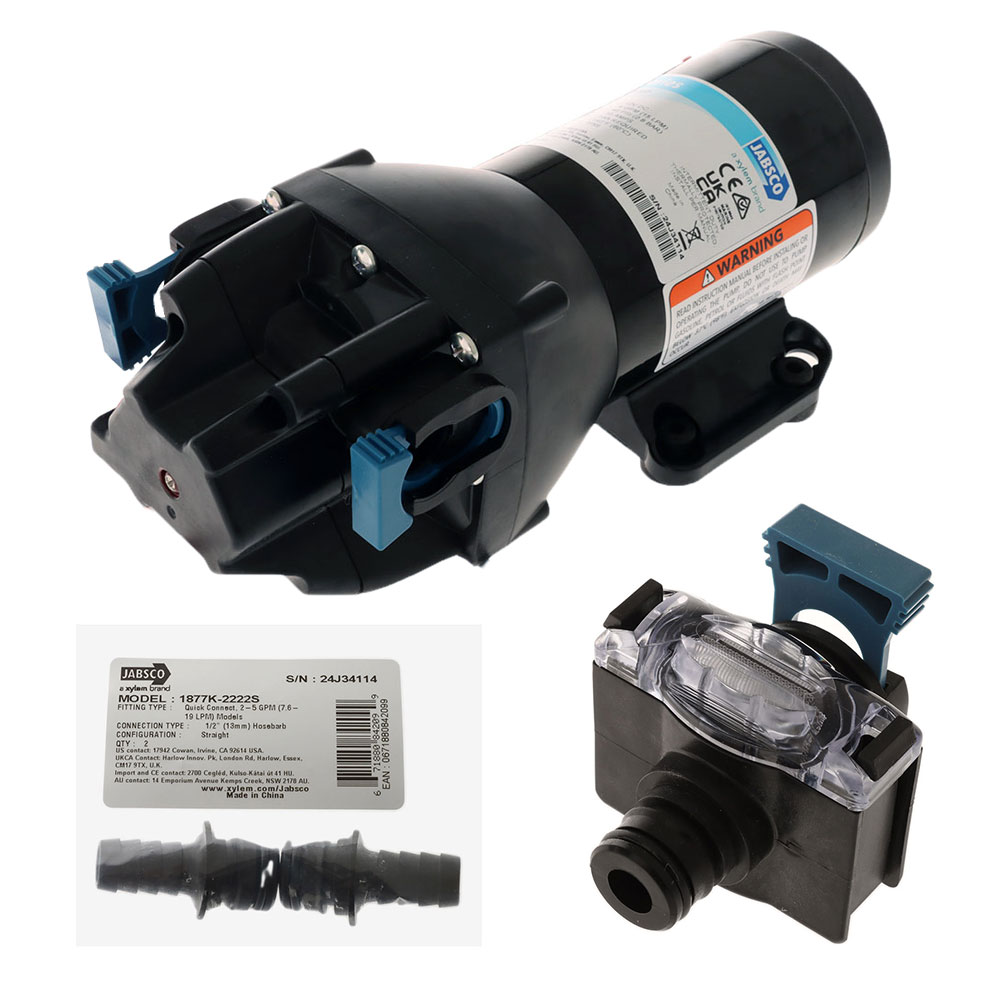

The new and improved Jabsco PAR-Max HD4 Water Pressure System Pump takes inspiration from the previous version and enhances its capabilities even further. Continuing Jabsco’s dedication to producing top-quality products, this robust water pressure system pump features a heavy-duty motor that’s protected by an automatic thermal overload cut-out for enhanced longevity. The multi-diaphragm design self-primes to 1.5m vertical lift and can run dry without damage.
The bypass feature ensures smooth and quiet flow, while the integrated pressure switch allows for on-demand operation. Get the smooth, constant flow of pressurised water without the added noise. Grab and install your very own Jabsco PAR-Max HD4 Water Pressure System Pump today!
Jabsco PAR-Max HD4 Water Pressure System Pump Features:
- Efficient, high-flow, self-priming pump serving 2 or more outlets
- Multi-diaphragm design self primes to 1.5m vertical lift
- Can run dry without damage
- Motor protected by automatic thermal overload cut-out to prevent overheating
- Integrated, sealed pressure switch

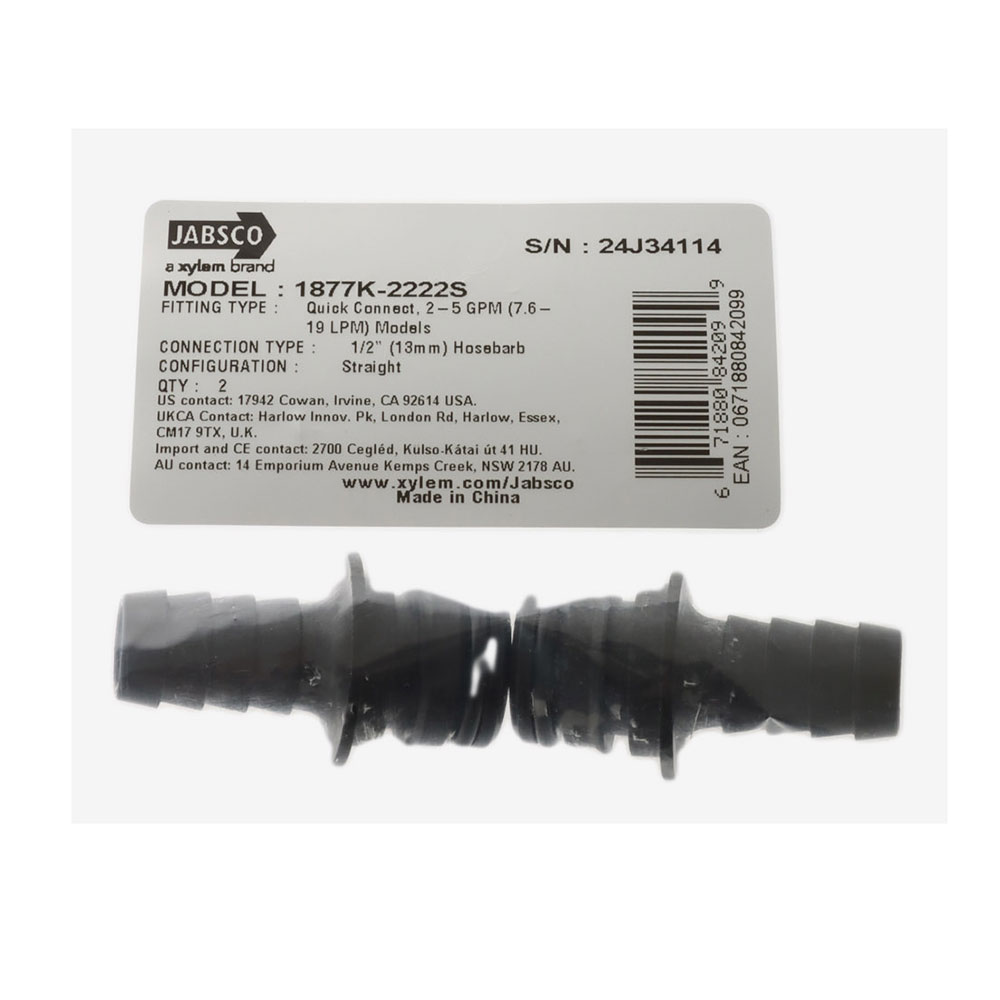

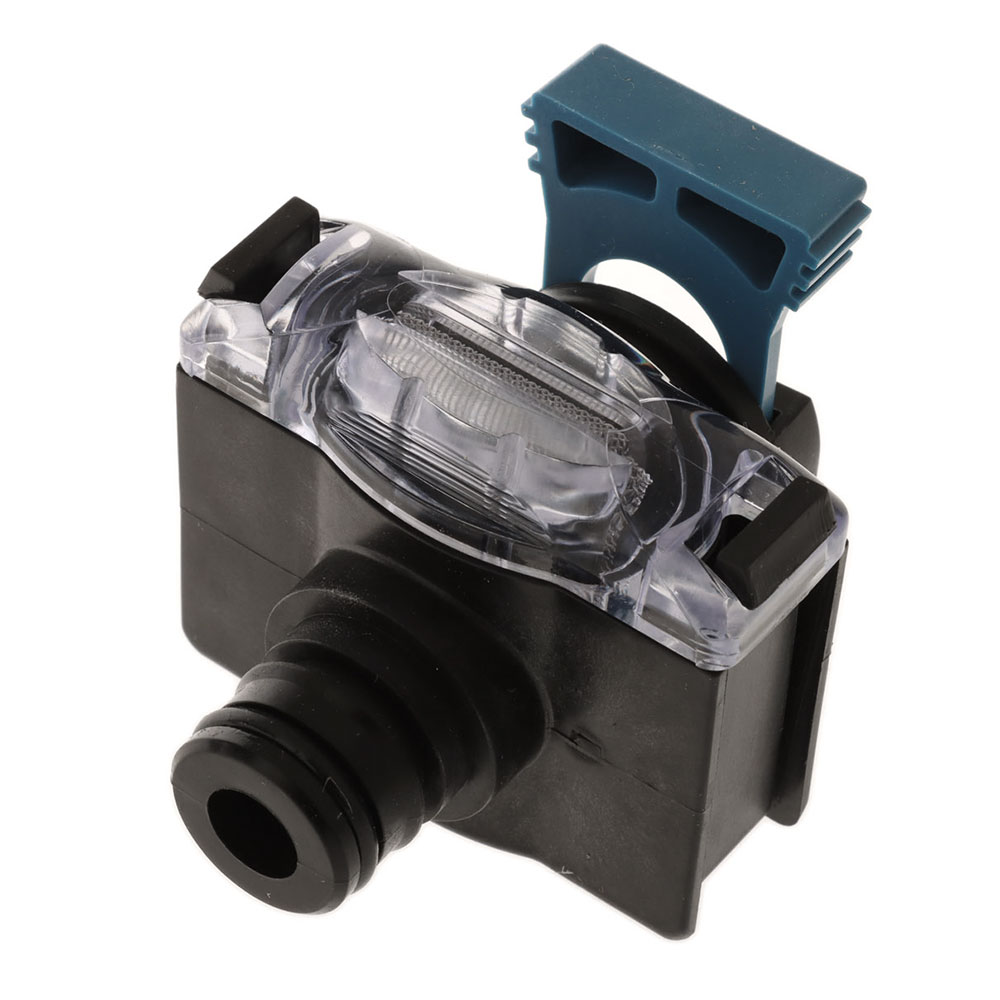

- Supplied with snap-in ports for hose 1/2in (13mm) and strainer
Jabsco PAR-Max HD4 Water Pressure System Pump Specifications
General
- Part number: Q401J-115S-3A
- Application: Marine water pressure system
- Ambient temp range: 32 - 140F (0 - 60C)
- IP rating: IPX6
- Packed dimensions: 394 x 152 x 140mm
- Weight: 2.5kg
Materials
- Upper housing: Fibre reinforced polypropylene
- Lower housing: Cast aluminium
- Check valve retainer: Polypropylene
- Diaphragm: Santoprene
- Check valves: EPDM
- Switch diaphragm: EPDM
- Byprass diaphragm: EPDM
- PH seals: EPDM
- PH fasteners: Stainless steel
- Baseplate: Plastic with rubber feet
- Motor casing: Cast aluminium, coated steel
Hydraulic Performance
- Open flowrate: 15.1 LPM / 4 GPM
- Pressure switch cut-off: 40 PSI (2.8 BAR)
- Max operating pressure: 40 PSI (2.8 BAR)
- Max inlet pressure: 30 PSI (2.1 BAR)
- Internal bypass: Yes
- Fluid temperature range: 32 - 140F (0 - 60C)
- Self-Priming capability: Up to 8ft (2.4m) dry prime
- Run-dry capable: Yes
Electrical Performance
- Nominal voltage: 12VDC
- Voltage range: 9 - 13VDC
- Max current draw: 10A @ 40 PSI (2.8 BAR)
- Fuse size: 15A (not included)
- Duty cycle: Intermittent
- Leads: 12in (305mm), 14 AWG (2.5mm^2)
- Wire connection: Stripped wire
Compliance
- CE: Yes
- RCM: Yes
- ISO 8846 ignition protected: Yes
