Xantrex Freedom XC1000 1000W Inverter 50A Charger

#9191715
Warranty Badge - 12-Months
Ships Dec 17 - Jan 15
Calculate Shipping
Australia Wide
includes any items in cart
ONLY $1,439.00

Seen a lower price? Ask us to beat it

Add Items to Cart

💬 Report incorrect product information

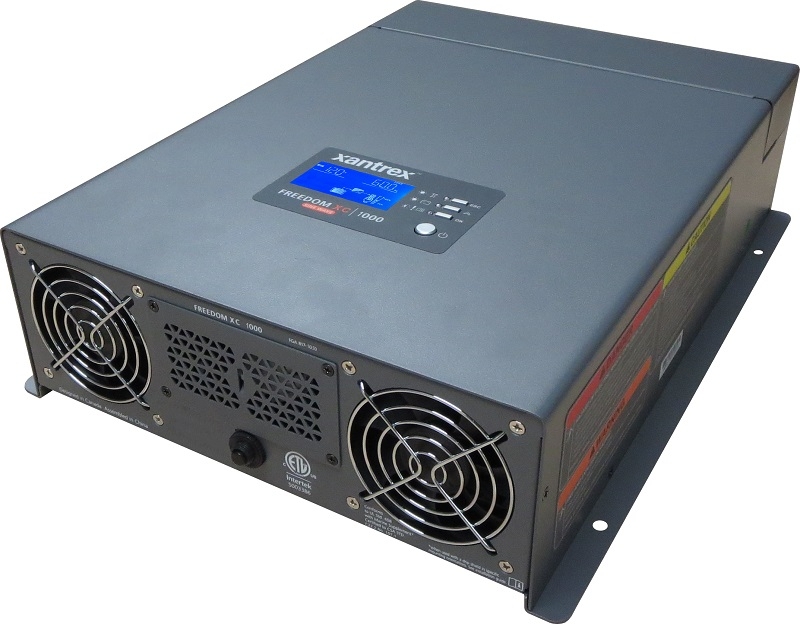

Xantrex Freedom XC1000 1000W Inverter 50A Charger

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Mastervolt AC Master Pure Sine Wave Inverter 1000W 24V with AU/NZ Plug

Mastervolt AC Master Pure Sine Wave Inverter 1000W 24V with AU/NZ Plug
Why pay $899.00
ONLY $739.00
SAVE $160.00!
Details

Details

Xantrex Freedom XC 1000 Watt True Sinewave Inverter, 50Amp Charger

Model: 817-1050

Features:
  • Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
  • True Sine Wave AC Power: For operation of sensitive and motor loads
  • Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
  • Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
  • Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
  • Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring
  • Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
  • Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
  • Battery Equalization: Maximizes flooded battery life
  • Dead Battery Charging Down to 0 Vdc
  • Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting

The Freedom XC inverter/charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -4 degrees F - 104 degrees F for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Specifications
Electrical Specifications - Inverter
Operating voltage120, 110, 108 VAC
Continuous powerContinuous Power 1000 W @40 C True sine wave
Continuous current8.4 Amps
Surge power2000 watts
Frequency60 Hz
Peak efficiency91%
Full load efficiencyGreather than or equal to 87.3%
Operating voltage range85-140 VAC
Safe Non-Operating voltage rangeUp to 240VAC
General Specifications
Operating temperature range-4 to 140 F (-20 to 60 C), with output derated above 104 F (40 degrees C)
Storage Temperature Range-40 to 158 F (-40 to 70 C)
Humidity5 to 95% RH, non-condensing
Transfer Relay Rating30Amp
Operating voltage rangeLBCO voltage - 18.0 VDC
Maximum Non-Operating Voltage24.0 VDC
Nominal Voltage (Inverting)12 VDC
Nominal Current at Full Load100ADC
Electrical Specifications - Battery Charger
Min Battery Voltage for Charging0.0 VDC
Max Output Voltage18.0 VDC (custom battery type)
Nominal Output CurrentUser selectable: 5 - 50A
Dimensions14.2(360mm) x 10.6(270mm) x 3.7(95mm)

What's in the Box:
  • Freedom XC unit
  • Pre-installed ground lug
  • Documentation

Advisory on the images used for this listing: The images used in this product listing are based on information provided to us by our suppliers and may represent a product range, or be for illustration purposes only, and may not be an exact representation of the product, and therefore should be used as a general guide only.
