Xantrex Freedom XC PRO 2000 2000W Inverter Charger 12vDC in 120vAC Out

#9191720
Warranty Badge - 12-Months
Ships Dec 17 - Jan 15
Calculate Shipping
Australia Wide
includes any items in cart
ONLY $2,389.00

Seen a lower price? Ask us to beat it

Add Items to Cart

💬 Report incorrect product information

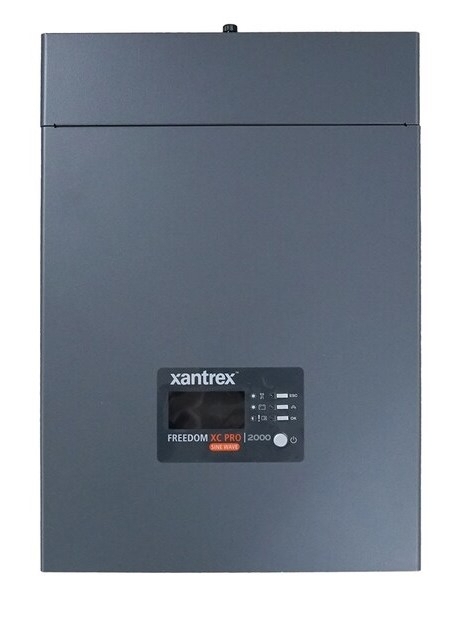

Xantrex Freedom XC PRO 2000 2000W Inverter Charger 12vDC in 120vAC Out

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Mastervolt Mass Sine Pure Sine Wave Inverter 12VDC to 230VAC 2000W

Mastervolt Mass Sine Pure Sine Wave Inverter 12VDC to 230VAC 2000W
Why pay $3,669.00
ONLY $1,999.00
SAVE $1,670.00!
Details

Details

Xantrex Freedom XC Pro 5000 Watt Inverter, 100A Charger

Model: 818-2010

Features:
  • Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
  • True Sine Wave AC Power: For operation of sensitive and motor loads
  • Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
  • Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
  • Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
  • Easily configurable settings to charge any lithium ion battery
  • Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
  • Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
  • Battery Equalization: Maximizes flooded battery life
  • Dead Battery Charging Down to 0 Vdc
  • Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting

The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 100 amp battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4 degrees F (-20 degrees C) - 104 degrees F (40 degrees C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Specifications
Inverter Specifications
AC Output Operating Voltage Options120, 110, 108 Vac
Continuous Output PowerContinuous Power 2000 W @40 C True sine wave (TSW)
Continuous AC Output Current16.7A
Surge Power4000 W ( ≤5 sec)
Frequency (Configurable)60 (or 50) Hz
Peak Efficiency91%
Full Load Efficiency≥ 86%
Operating Input AC Pass-Through Voltage Range85-140 Vac
Safe Non-Operating Input AC Voltage RangeUp to 240 Vac RMS
Power Factor at Full Charge Rate> 98%
Battery Charger Specifications
Min Battery Voltage for Charging0.0 Vdc
Max DC Output Voltage18.0 Vdc (custom battery type)
Selectable DC Output CurrentUser Selectable: 5 - 100 A
Full Load Max AC Input Current24 Arms
Max DC Charge Current10A
General Specifications
Operating Temperature Range4 to 140 F (-20 to 60 C), with output derated above 104 F (40 degrees C)
Storage Temperature Range-40 to 158 F (-40 to 70 C)
Operating Humidity Range5 to 95% RH, non-condensing
Transfer Relay AC Current Rating30 A surge, 24 A continous
DC Input Operating voltage range10.1 - 18.0 VDC
DC Input Max Non-Operating Voltage25.2 Vdc
DC Input/Output Nominal Voltage (inverting/ Charging)12.0 Vdc
DC Nominal Current at Full Load192Adc
L x W x H (without flanges)5.4(390 mm) x 10.8(275 mm) x 4.9(125 mm)
L x W x H (with flanges)16.0(406 mm) x 12.0(305 mm) x 4.9(125 mm)

What's in the Box:
  • Freedom XC Pro 2000
  • Owners Manual
  • Pre-installed DC ground enclosure lug
  • Plastic bushings for large DC cables
  • 2 AC knockout hole plugs
