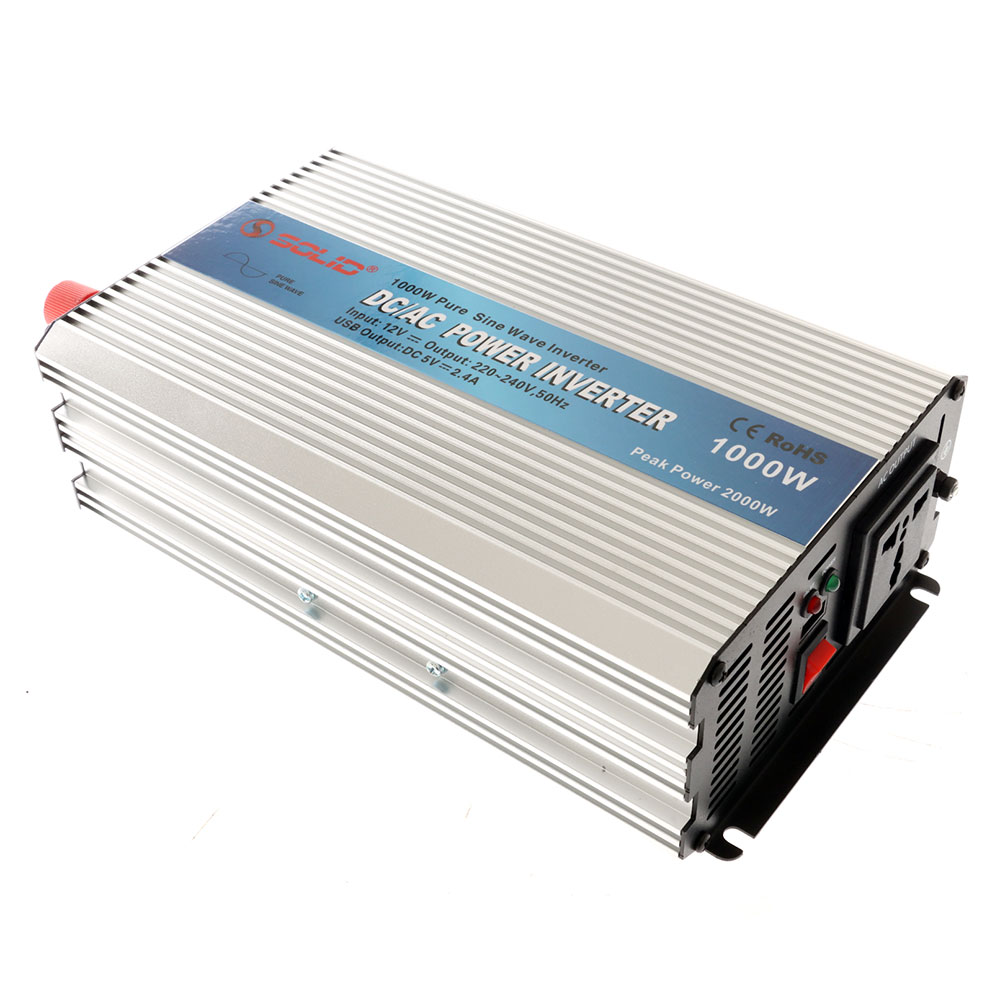

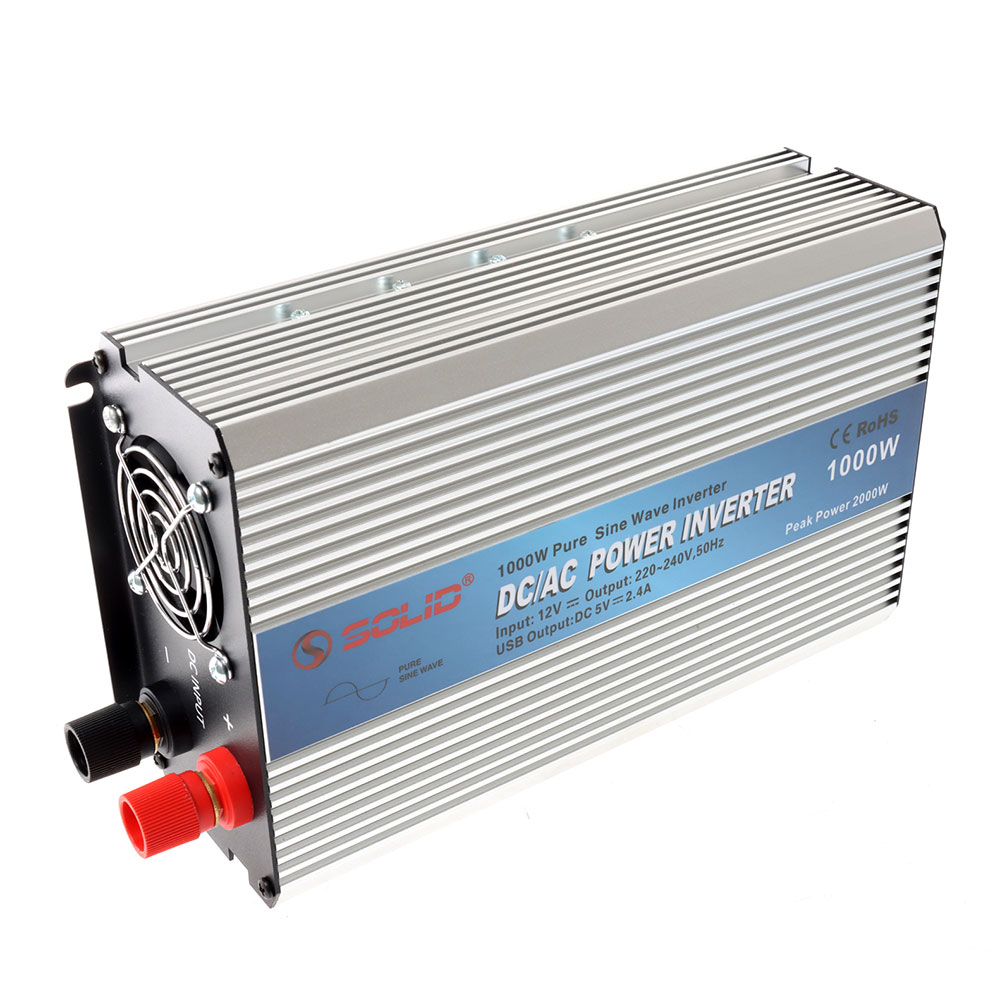

Pure Sine Wave Inverter 12VDC 230VAC 1000W

Convert DC to AC power

This Pure Sine Wave Inverter is designed and built to deliver much-needed AC power to fulfil your electrical requirements. Boasting a continuous power of 1000W with a peak of 2000W, it produces cleaner, smoother, quieter, and more reliable electricity for operating your appliances and electronics. The unit also features low voltage, over-voltage, over-temperature, overload and short circuit protection for added safety. A quality product that’s sure to bring lots of value for your money!

Pure Sine Wave Inverter Features:

• Continuous power: 1000W, Peak power: 2000W
• Frequency: 50Hz/60Hz
• Efficiency: >88%
• Low voltage/Over voltage/Over temperature/Overload/Short circuit protection

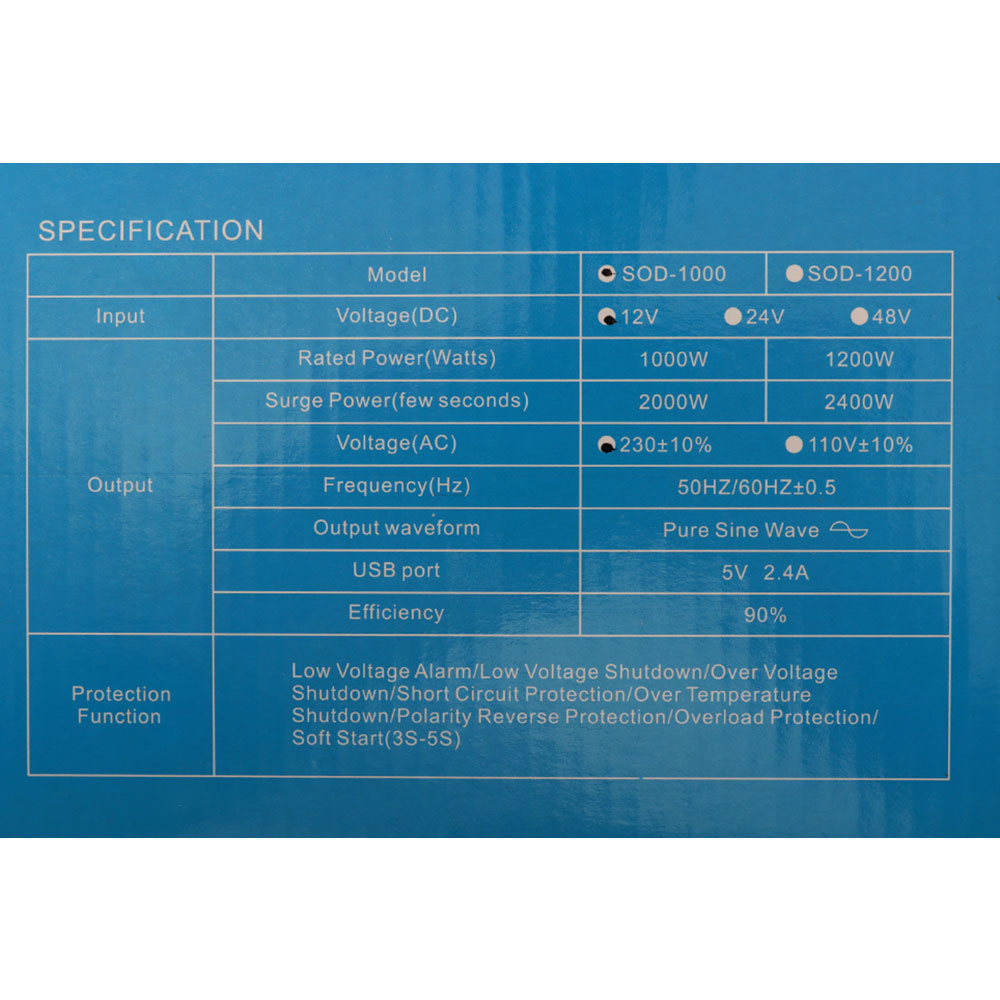

Pure Sine Wave Inverter Specifications:

General

• Dimensions: 280 x 180 x 100mm
• Net weight: 4.2 ± 0.1kg
• Soft start: 3-5 sec
• USB output: 5V, 1A current
• Certificate: CE-EMC, CE-LVD, FCC, RoHs, ISO9001:2008

Output

• Continuous power: 1000W
• Peak power: 2000W
• AC voltage: 100/110/120/220/230/240V AC
• Frequency: 50/60Hz
• Waveform: Pure sine wave output

Input and Protection

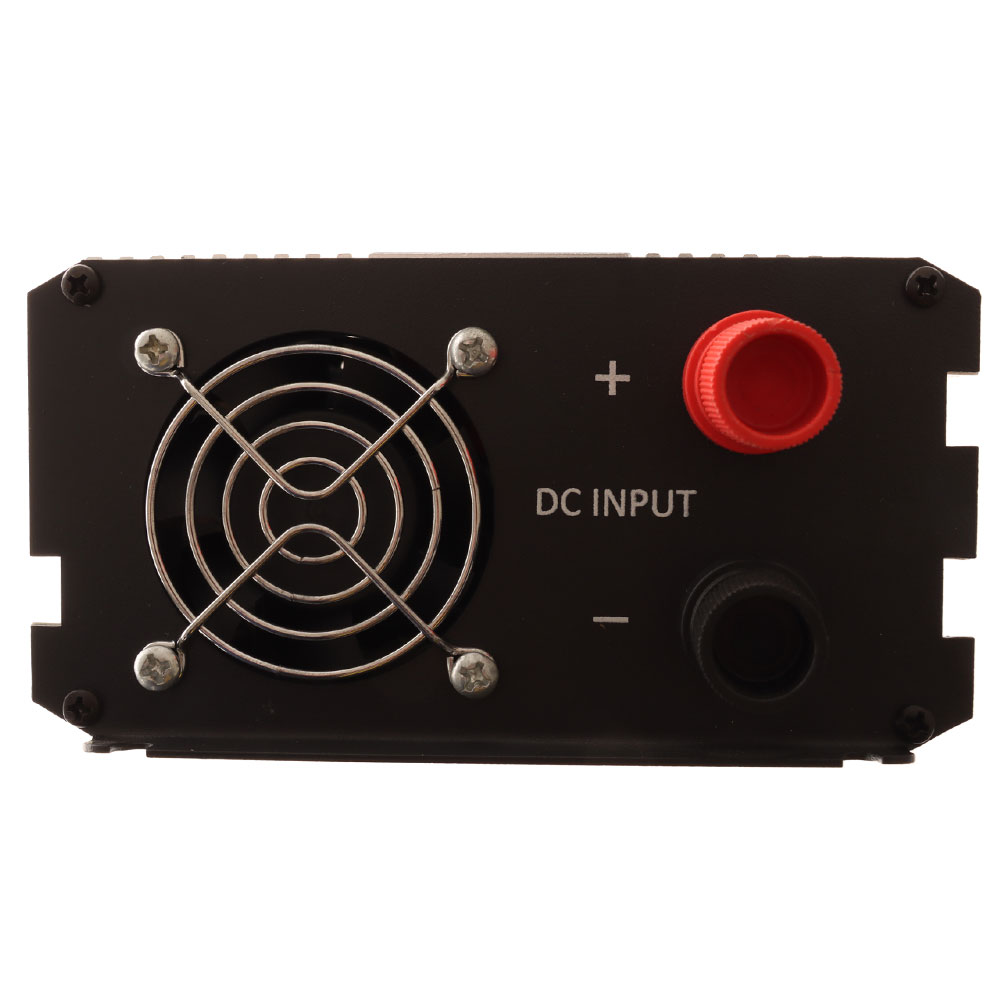

• DC voltage: 12V
• DC voltage range: 10 - 15V
• Low battery alarm: 10.5 ± 0.2V
• Low battery shutdown: 10 ± 0.5V
• Over voltage shut down: 15 ± 0.5V
• Out-build fuses: 35A*4
• Over temperature: The inverter will shut down when heating over 75 C
• Over load: The inverter will shut down when the power over 360W for 10 sec, then it will restart in seconds
• Short circuit: The inverter will shut down when short circuit,then it will will restart in seconds

Environment

• Working temperature: Between -10 C and +50 C
• Working humidity: 20% ～ 90% RH non-condensing
• Storage temperature: Between -30 C and +70 C
