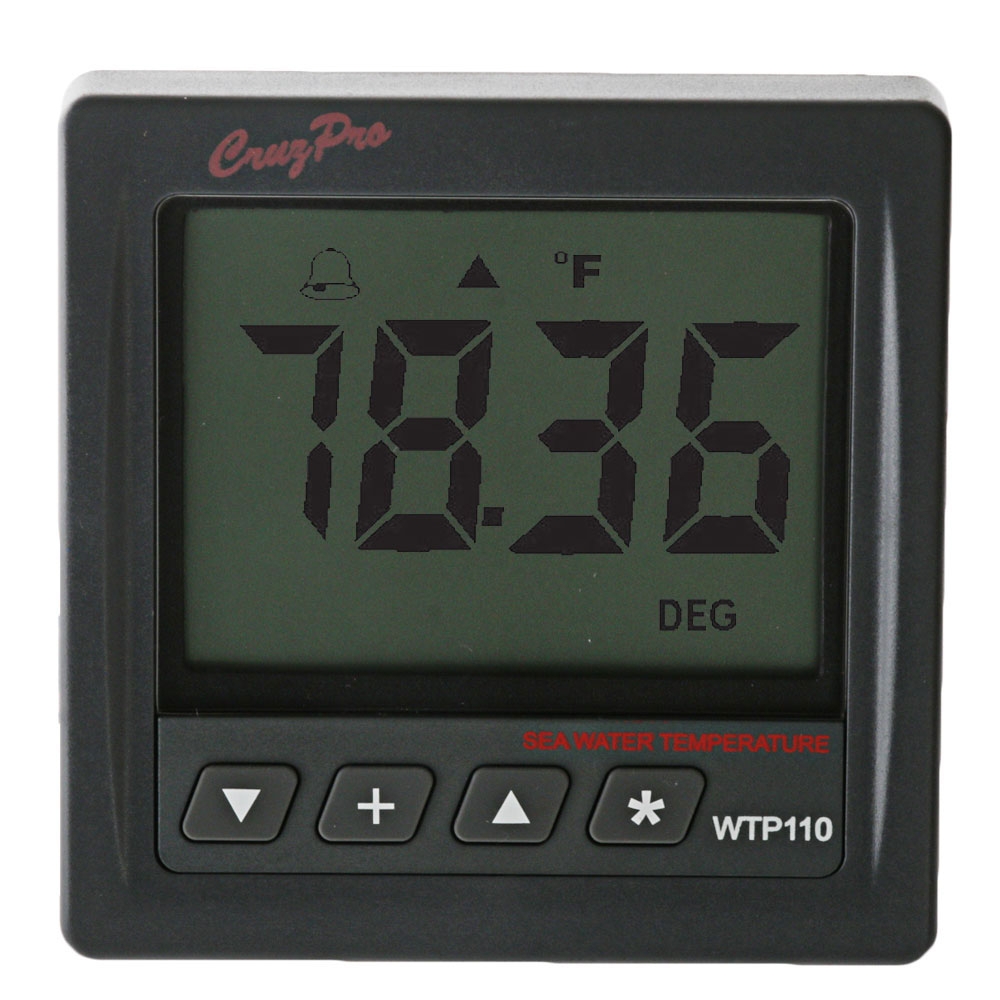

The CruzPro WTP110 provides accurate digital instrumentation for sea water temperature with a resolution of 0.01 degree Fahrenheit or Celsius.
The unit displays sea water temperature from 32.00 deg F (0.00 deg C) to 99.99 deg F. (37.77 deg C) in hundreths of a degree. The units of display are easily selected from the front panel.
For maximum accuracy, the displayed temperature may be calibrated using the front panel keys to compensate for slight differences in temperature transducers.
You can set high and low temperature alarms and a temperature, trend arrow lets you know with a glance if the sea temperature is getting warmer, cooler or constant.
Five levels of backlighting can be selected and remotely switched ON/OFF.
The WTP110 works with both 10Kohm and 30Kohm temperature senders and is fully compatible with the popular Dytek temperature probe.
With its large display digits, the WTP110 draws only .035 amps and only .055 amps with full backlighting.
The WTP110 outputs NMEA 0183 serial data sentences of temperature in both degrees F and degrees C. This information can be used to log performance or repeat the display information at a remote location on the matching CruzPro RP60,Rp110 and/or MaxRp110 data repeaters
Requires a transducer sold separately. THT-2 or TMT-1
Specifications:- Operating Voltage: 9.5 - 33.0 VDC
- Current Drain: 0.045 amps nominal (depends on backlight level)
- Display: 4 digit LCD, red LED backlighting Temperature Trend Arrows Alarm bell 5 levels of backlighting including OFF External backlight ON/OFF control
- Trend Indicator: User Settable Temperature Trend Sensitivity
- Alarms: User Settable Hi and Low Temperature Alarms
- Memory: Resettable Min. and Max. Temperature Seen Memories
- Resolution: +/- 0.01 deg F or C (adjustable by user)
- Range: 32.00 deg F (0.00 deg C) to 99.99 deg F (37.77 deg C)
- Sensor: Standard 10Kohm or 30Kohm (Dytek) NTC thermister. Bronze and plastic versions available separately (see below).
- Data Output: NMEA 0183 serial 4800 BAUD, $VWMTW, $IIXDR
- Size: 4.3'' x 4.3'' (110m x 110mm)
- Mounting: 2-1/8'' (55mm) round hole
