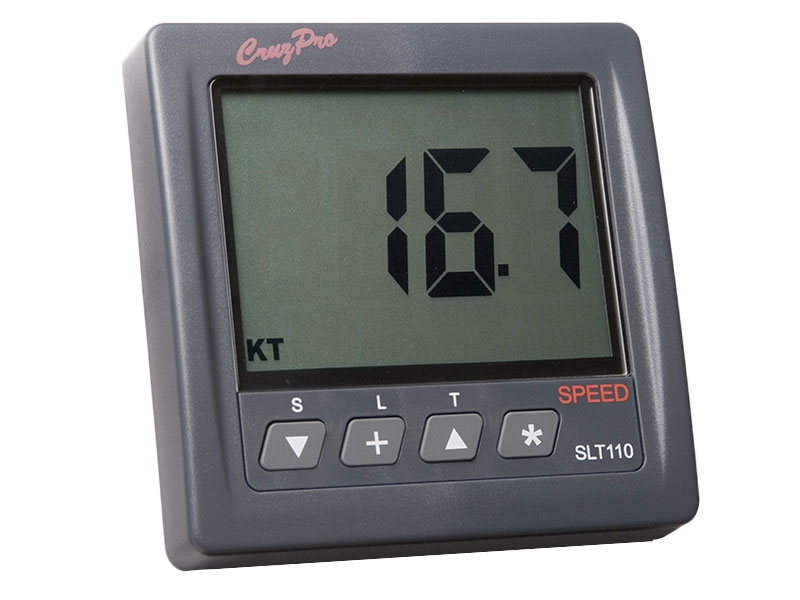

CruzPro SLT-110 Speed Log and Race Timer

Stay in the race with the CruzPro SLT110.

The SLT110 displays speed and average speed up to 50.0 Knots (58 M.P.H.) in tenths, very accurate water temperature in degrees F or C, trip log to 999.9 miles, permanent log to 9,999 miles and elapsed time in Minutes/Seconds and Hours/Minutes. A race timer that can be started with one of two pre-settable start times.

The downcounting race timer has two presettable start points from 1 to 99 minutes each and beep off the minutes and last ten seconds before reaching zero.

The SLT110 outputs NMEA 0183 data records of boat speed, logs, and water temperature. This ASCII information can be used to log performance or repeat the display information at a remote location on the CruzPro RP30 and/or RP110 data repeaters. If NMEA 0183 serial data is not required, then the output terminal can be programmed as an external alarm output pin.

Intelligent CruzPro gauges regulate the battery feed voltage to get highly accurate sender readings free from voltage fluctuation errors.

Up to five levels of back-lighting.

All setups and calibration constants are saved to a non-volatile memory. will not be lost if power is turned off.

NMEA 0183 serial data output line or an external alarm output that can be used for transfer pump control.

Operating voltage 9.5 to 33 volts and draws only 0.037 amps.

NOTE: Requires a Transducer, transom and thru-hull speed/temperature transducers available separately.

• Operating Voltage: 9.5 - 33.0 VDC
• Current Drain: 0.037 amps nominal
• Display: Large 4 digit LCD, 5 levels of backlighting with external backlight on/off control
• Data: Speed - 0.0 to 50.0 knots/mph/kph Average Speed - 0.0 to 50.0 knots/kph/mph Trip Log - 0.0 to 999.9 miles/km/n. miles Total Log - 0 - 9999 miles/km/n miles Temp. 32.0 to 90.0 deg. F (0.0 to 32.0 C) Race Timer - Two separate programmable start times (1-99 minutes) Elapsed Time - 59Min/59 Sec. in seconds then up to 59Hrs/59Minutesin minutes.
• Data Ouput: NMEA 0183 serial 4800 BAUD, $VWVHW, $VWMTW, $VWVLW
• Alarms: Built-in 85 dB audible alarm.
• Size: 4.3'' x 4.3'' (110m x 110mm) 2-1/2' min. depth, 3-1/2' max depth (See case drawing)
• Mounting: 2-1/8'' (54mm) round hole
