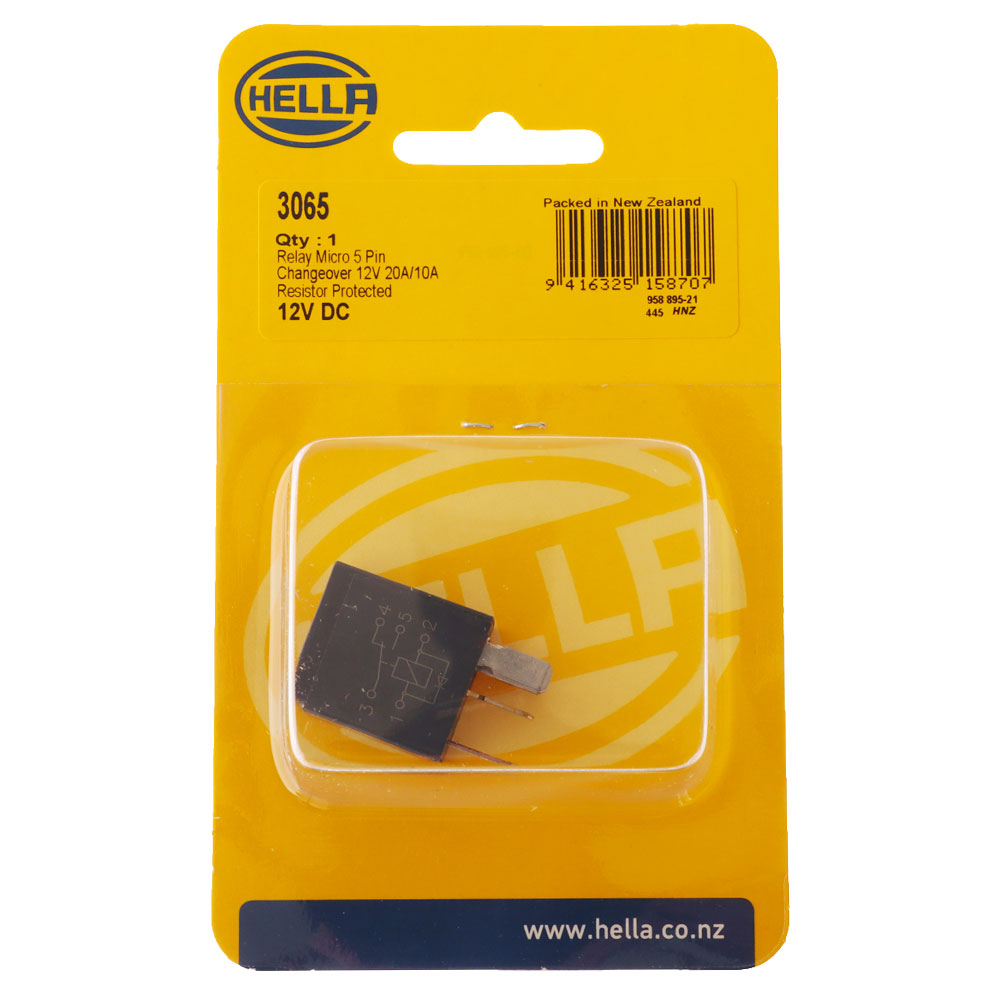

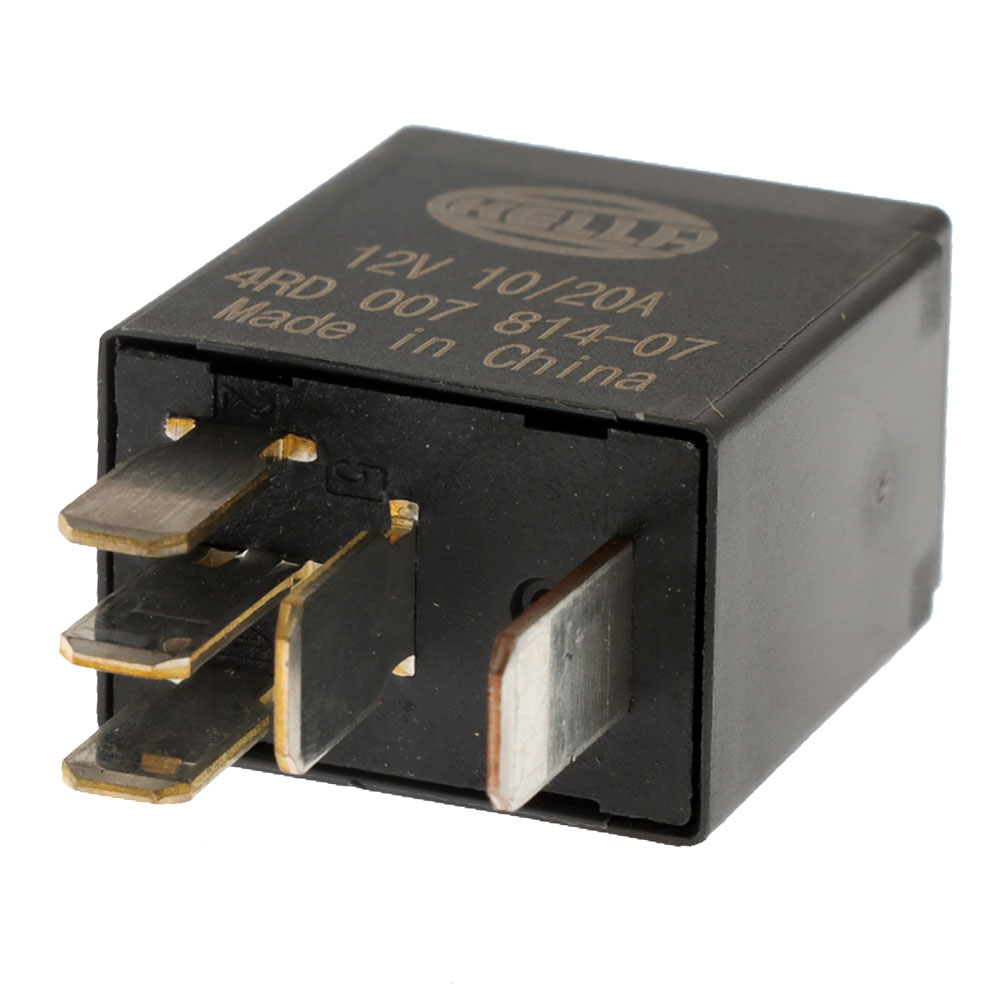

Hella Marine 12V 5 Pin Change-over Micro Relay - 20/10A - Resistor

Click on the image above to view full picture

More Views

Details

Details

Durable and reliable

ISO micro relays are, as the name suggests, smaller than ISO mini relays and designed for use in applications where space is at a premium. The Hella Marine Change-over Micro Relay with Parallel Resistor features three 4.8mm and two 6.3mm blade terminal contacts.

Hella Marine Change-over Micro Relay with Parallel Resistor Specifications:
  • Part number: 3065
  • Voltage: 12V
  • Pins: 5 Pin
  • Function: Change-over
  • Protection: Resistor
  • Maximum Load (Terminals: Amperage): 3-5:20A, 3-4:10A
  • Current Draw: 140mA
  • Bracket: No
  • Includes 3 x 4.8mm blade terminals (85 86 and 87a) and 2 x 6.3mm blade terminals

Pin Designations:

Terminal Number Connect to
85/2 Earth (end of winding to ground or negative).
86/1 Positive.
87/5 Output (to consumer e.g. driving lamp).
87a/4 Alternative output (1st output, break side).
30/3 Positive supply (Input from + battery terminal, direct).


Hella Marine 12V 5 Pin Change-over Micro Relay - 20/10A - Resistor Dimensions
