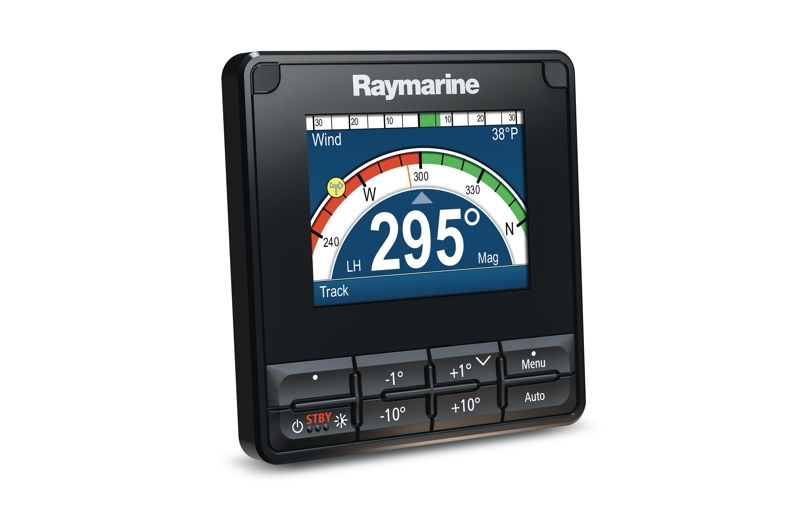

Raymarine p70s Autopilot Control Head

Complete your evolution autopilot system with a new control head. The Raymarine p70s autopilot control head is a push-button operation controller designed primarily for sailboats.

Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.

• 3.5in super bright oversized LCD for maximum visibility
• All weather, low power, optically bonded display technology delivers brighter colours, sharper contrast, and a wide viewing angle
• Button or rotary control options for sail and power applications
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Display the pilot information in different formats with automatic 3-step setup for leisure, cruising and performance
• Simple system and group dimming / illumination
• Easy to use Lighthouse user interface with sculpted rubber keypad for precise operation in all conditions
• SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000 networks
• New glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays
• Supplied with both black (eS Series style) and (e Series style) gunmetal bezels and protective suncover

• Model: Raymarine p70s Autopilot controller (button)
• Part Number: E70328
• Nominal voltage: 12v DC
• Voltage range: 9 to 16v DC
• Screen size: 3.5in
• Display: Sunlight readable optically bonded LCD
• Resolution: 320 x 240 QVGA
• Colours: 16 bit colour (64K colours)
• Colour Palettes: Four colour pallettes - two day, inverse and red / black
• LCD Brightness: 1200 nit
• Power consumption: 1.6 Watts
• Connections: SeaTalk & SeaTalkng compliant with NMEA2000 marine networks
• Operating temperature: -025 degrees C to 55 degrees C (-13 degrees F to 131 degrees F)
• Storage temperature: -030 degrees C to 70 degrees C (-22 degrees F to 158 degrees F)
• Relative humidity: 93% max
• Waterproofing: IPX6
• Conformance: Europe 2004/108/EC / Australia and New Zealand C-Tick compliance level 2
