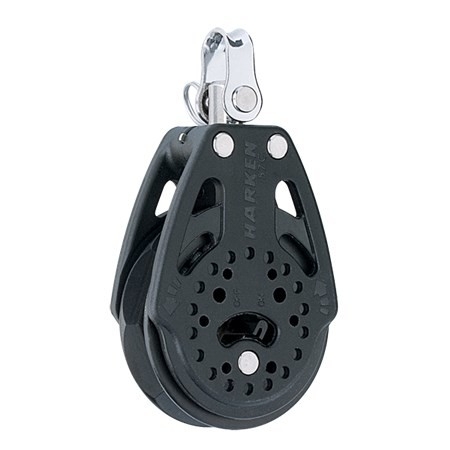

Harken Carbo Air Ratchet Block with Swivel 57mm

Effortlessly hold and ease lines

The Harken Carbo Air Ratchet Block allows you to hand-hold loaded lines, offering balance between holding power and controlled easing. It features an on/off switch which can be operated from both sides, making it easier to hold onto lines with higher loads. Great for main/jib/spinnaker sheets on dinghies and control lines on boats of all sizes! For effortless holding power, grab the Harken Carbo Air Ratchet Block.

Harken Carbo Air Ratchet Block Features:

• Allows you to hand-hold and ease loaded lines with control
• Glass filled nylon sideplates: load carrying curved bearing races
• Machined hardcoat-anodized aluminium sheaves
• Fast trim: free running ball bearings
• Faceted aluminium sheave grips line securely
• Multi-faceted power sheaves
• Ratchet on/off switch
• Cheek: line shedding, small mounting footprint and drain holes

Harken Carbo Air Ratchet Block Specifications:

• Part number: 2135
• Sheave diameter: 57mm / 2.25in
• Length: 103mm / 4.1in
• Weight: 85g / 3oz
• Shackle pin diameter: 5mm / 0.19in
• Maximum line diameter: 10mm / 0.375in
• Maximum working load: 227kg / 500lb
• Breaking load: 907kg / 2000lb
• Holding power: 10:1

Harken Carbo Air Ratchet Block Product Manual

Note: Do not apply a load greater than the maximum working load.
