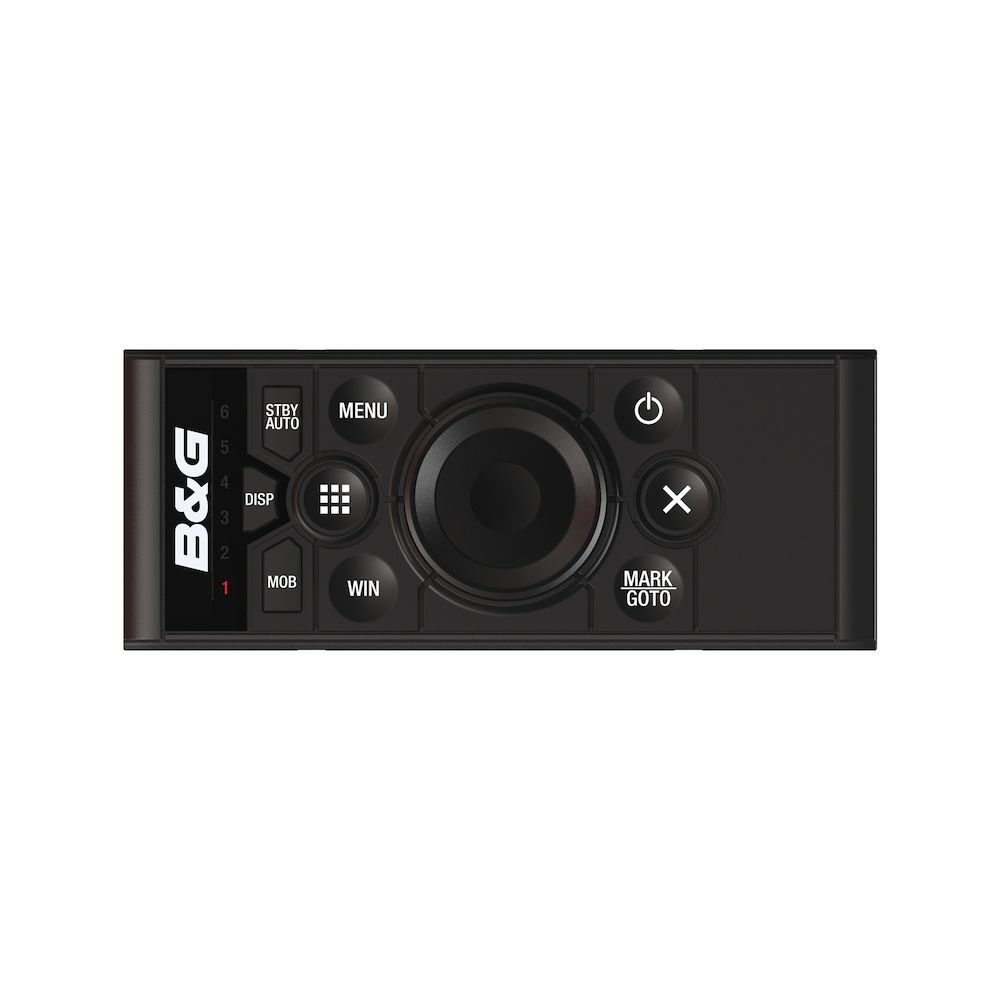

B&G ZC2 Remote Landscape

The BandG ZC2 Landscape Remote Controller provides intuitive keypad and rotary-dial command of up to six Zeus, Zeuscubic, Glass Helm or Vulcan multifunction displays.

Zeus3 Glass Helm

Zeus³ Glass Helm sits at the heart of the finest bluewater cruisers, multihulls and superyachts around the world. With a range of super-large 16, 19 and 24, full HD displays and powered by lightning fast internal processors, Zeus³ Glass Helm will compliment any vessel with its sleek, low profile look and advanced sailing features. Integrate with the full range of BandG instruments, radar, sonar and sensors for the ultimate large screen navigation solution for your boat.

Ultra-bright full HD Display

See the data you need, day or night, on Zeus³ Glass Helm's low-profile ultra-bright display. No matter if you're wearing polarised sunglasses or viewing from a wide angle, Zeus³ Glass Helm boasts the best screen available on any navigation system.

Sleek design for Multihulls and Superyachts

Complement the design of any stylish large yacht with Zeus³ Glass Helm's stunning low profile, all-glass multifunction display. Available in three sizes, from 16 to 19 and 24 inches, choose Zeus³ Glass Helm displays to suit any navigation and helm station and benefit from BandG's advanced sailing features.

Connected Vessel

Take charge of everything onboard from your Zeuscubic Glass Helm with full integration with Naviop. Control and monitor engines, lights, power and electronics, all from your stunning Glass Helm displays. You can also mirror and control your screen on a tablet or smartphone using the Link App to monitor your vessel and her surroundings when you're away from the helm.

Lightning-fast processor

Experience enhanced situational awareness with Zeus³ Glass Helm's lightning-fast integrated processors. The quad core processor has the power to run all its functions simultaneously: monitor Radar, Sonar, Charts, Instruments and Vessel integration with ease on the large multifunction displays for unmatched situational awareness and top-class performance.

The best charting on the best screen

Zeus³ Glass Helm's large screen gives unmatched views of the world's leading cartography, from C-MAP, Navionics and NV Digital. Take advantage of advanced mapping features including auto-routing, dynamic tides and currents, aerial photos and detailed harbour charts to ensure you know exactly what lies beneath your keel at all times.

Enjoy remote control with a ZC2 remote

Take full control of up to six displays from one ZC2 remote controller. A neat and stylish install with a knurled aluminium controller, the ZC2 minimises clutter and enables you to take full fingertip control from wherever it's mounted.

• Control up to six Zeus, Zeuscubic, Glass Helm or Vulcan multifunction displays
• Autopilot remote control via any networked display
• High-quality aluminium control dial with built-in cursor functions
• MOB function
• Landscape orientation (portrait version also available)
• Narrow design perfect for chart table mounting
• Dash mount with low 8mm profile
• Zero-profile flush mount with optional bracket
• Integrated high-decibel speaker for critical alarms
• Quickly switch displays with dedicated button and LED indicators
• Single NMEA 2000 connection

Specifications

Waterproofrating

IPx6

Weight

0.3 kg (0.66 Lbs)

Power Consumption min

0.5W

Power Consumption typical

0.6W

Power Consumption max

1.0W

Supply Voltage

12V DC (10-16V DC)

Operating Temperature Range

-15 degreesC to +55 degreesC (5 degreesF to 131 degreesF)

Dimensions W x H x D

150 x 60 x 45mm (5.9 x 2.4 x 1.8')

NMEA 2000 Connectivity

2 x NMEA2000 Micro-C port, 2 LEN

Warranty Period

2 years

Compass Safe

200mm (0.9')

Recommended Fuse Rating

5A

Mounting Type

Flush

Approvals Compliance

IEC/EN 60945

Interface

keypad

Humidity

Up to 95% RH
