Up (Fuse Holders, Blocks & Boxes) ▲

IP65 Sealed Polycarbonate Enclosures

#9032413
Warranty Badge - 12-Months
Ships Dec 6 - Dec 16

Seen a lower price? Ask us to beat it

Product Name Price Qty

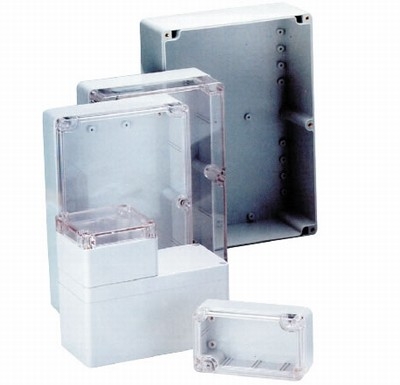

Sealed Polycarbonate Enclosures - 115 x 65 x 40mm

Ships Dec 6 - Dec 16

NOW $21.50
Sealed Polycarbonate Enclosures - 115 x 90 x 55mm

Ships Dec 6 - Dec 16

$23.99 NOW $17.99
Sealed Polycarbonate Enclosures - 171 x 121 x 55mm

Ships Dec 6 - Dec 16

NOW $31.50
Sealed Polycarbonate Enclosures - 222 x 146 x 55mm

Ships Dec 6 - Dec 16

NOW $46.99
Sealed Polycarbonate Enclosures - 171 x 121 x 80mm

Ships Dec 6 - Dec 16

$34.99 NOW $29.99
Sealed Polycarbonate Enclosures - 82 x 80 x 55mm

Ships Dec 6 - Dec 16

NOW $21.50

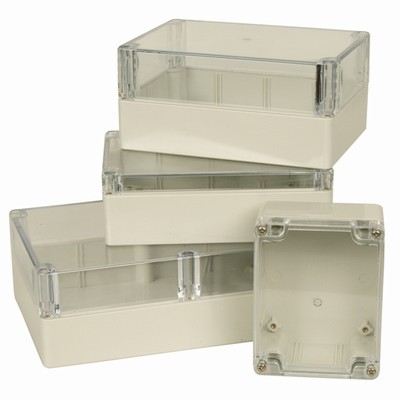

Sealed Polycarbonate Enclosures w/ Clear Lid - 171 x 121 x 55mm

Ships Dec 6 - Dec 16

NOW $31.50
Sealed Polycarbonate Enclosures w/ Mounting Flange - 115 x 65 x 40mm

Ships Dec 6 - Dec 16

$23.99 NOW $17.99

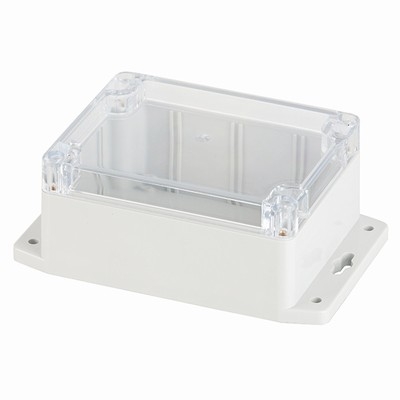

Sealed Polycarbonate Enclosures w/ Mounting Flange - 115 x 90 x 55mm

Ships Dec 6 - Dec 16

$26.99 NOW $21.99

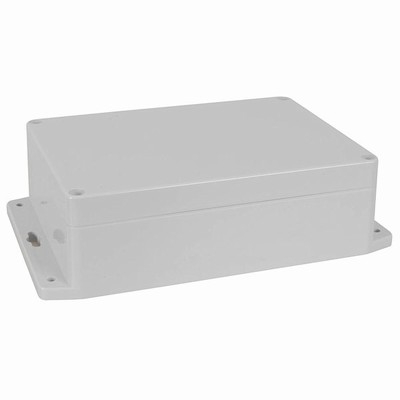

Sealed Polycarbonate Enclosures w/ Mounting Flange - 171 x 121 x 55mm

Ships Dec 6 - Dec 16

$34.99 NOW $29.99

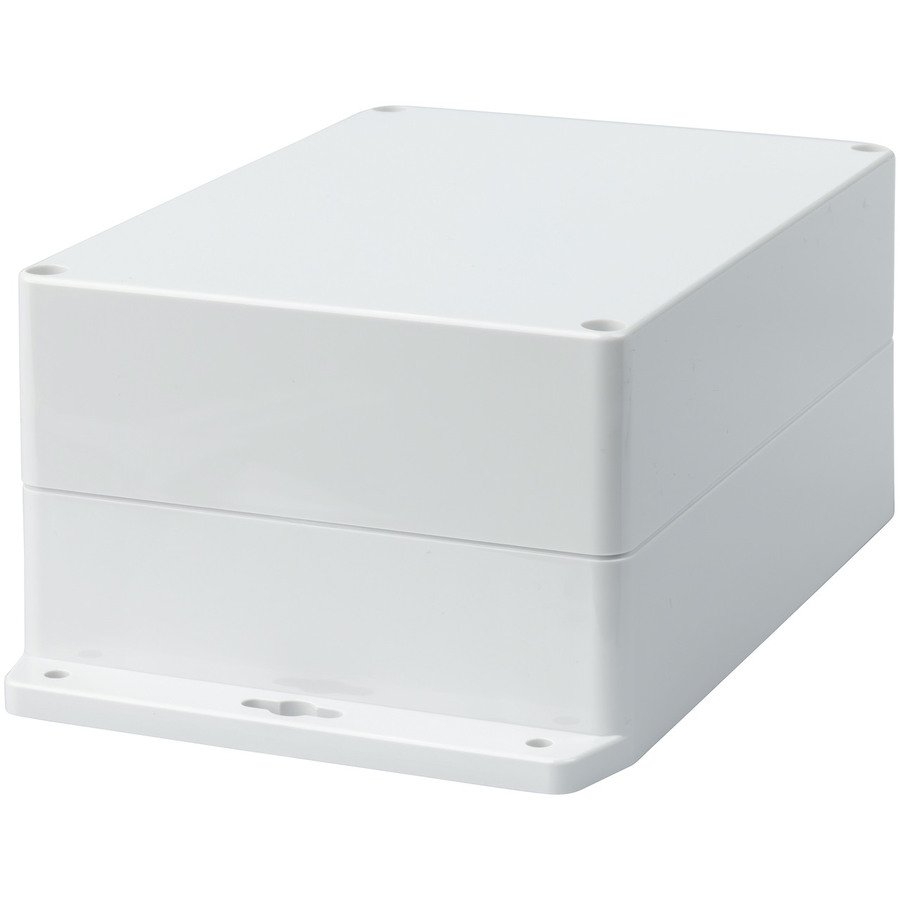

Sealed Polycarbonate Enclosures w/ Mounting Flange - 171 x 121 x 80mm

Ships Dec 6 - Dec 16

$39.99 NOW $32.50
Sealed Polycarbonate Enclosures w/ Clear Lid & Mounting Flange - 171 x 121 x 80mm

Ships Dec 6 - Dec 16

$37.99 NOW $32.50
Add Items to Cart

💬 Report incorrect product information

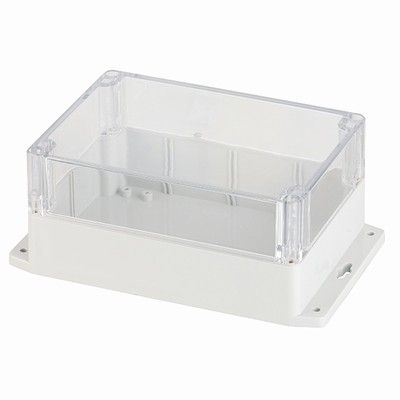

IP65 Sealed Polycarbonate Enclosures

Click on the image above to view full picture

More Views

Details

Details

IP65 Sealed Polycarbonate Enclosure Specifications:
  • Made with Polycarbonate material
  • Moulded in light grey
  • Operating temperature: -40 to +125C
  • The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
  • Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
  • Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
  • Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
  • Internal guide slots for mounting PCB assemblies vertically (not on HB6230)
  • Also available with clear lid or mounting flange

IP65 Sealed Polycarbonate Enclosure Dimensions:
  • HB6230: 82(W) x 80(D) x 55(H)mm
  • HB6212: 115(W) x 65(D) x 40(H)mm
  • HB6216: 115(W) x 90(D) x 55(H)mm
  • HB6218: 171(W) x 121(D) x 55(H)mm
  • HB6224: 171(W) x 121(D) x 80(H)mm
  • HB6220: 222(W) x 146(D) x 55(H)mm
  • HB6246 with Clear Lid: 115(W) x 90(D) x 55(H)mm
  • HB6248 with Clear Lid: 171(W) x 121(D) x 55(H)mm
  • HB6254 with Clear Lid: 171(W) x 121(D) x 80(H)mm
  • HB6258 with Clear Lid: 222(W) x 146(D) x 55(H)mm
  • HB6217 with Mounting Flange: Box - 115(W) x 90 (D) x 55(H)mm; Base - 145(W) x 90(D)mm
  • HB6219 with Mounting Flange: Box - 171(W) x 121(D) x 55(H)mm; Base - 201(W) x 121(D)mm
  • HB6221 with Mounting Flange: Box - 171(W) x 121(D) x 80(H)mm; Base - 201(W) x 121(D)mm
Some of our product deals are strictly limited - once they're gone, they're gone! Secure yourself this amazing deal while stocks last...by clicking the Add to Order button above.
