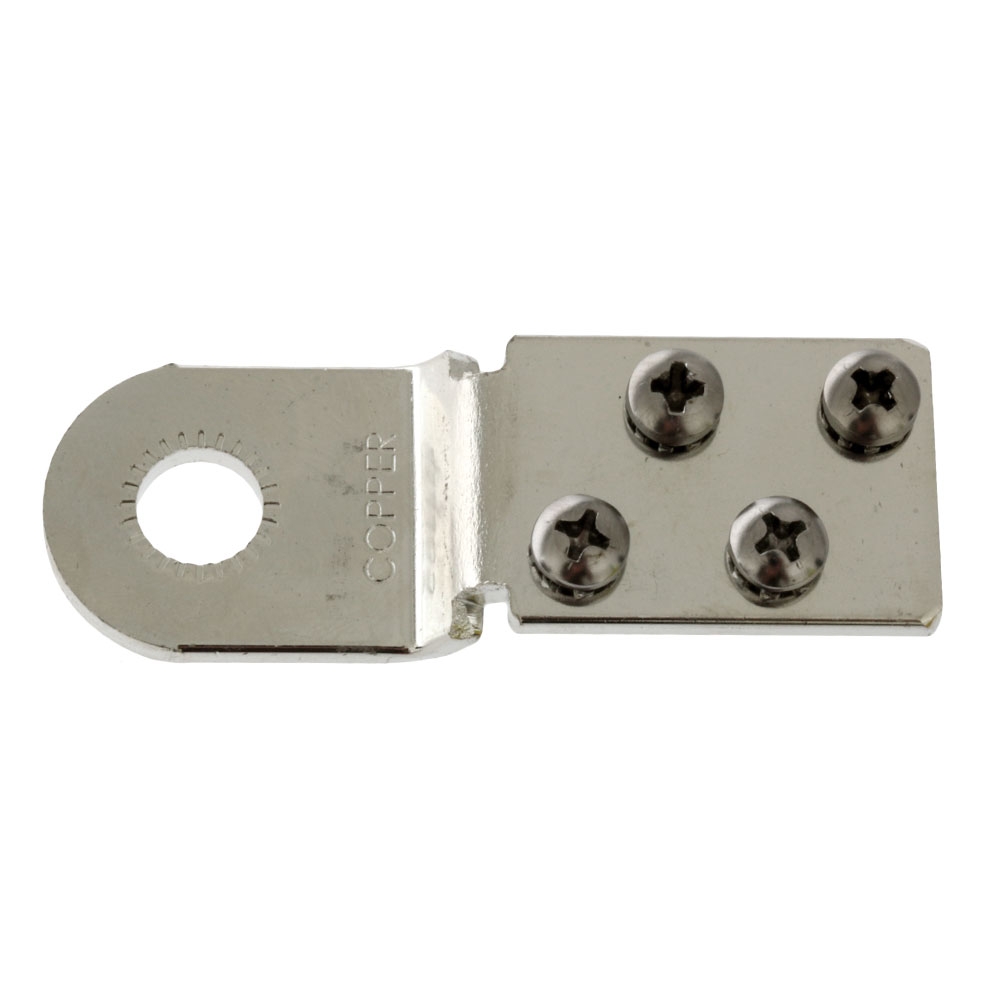

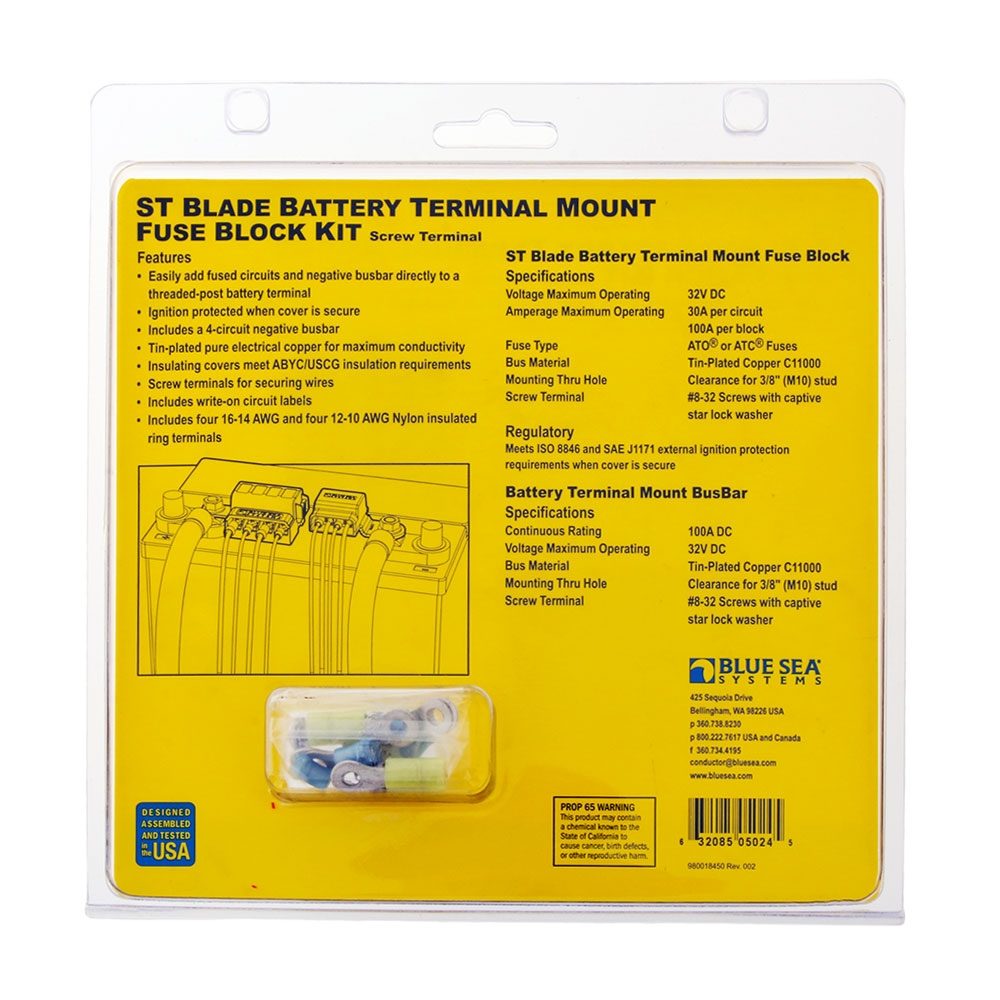

Blue Sea ST Blade Battery Terminal Mount Fuse Block Kit

Power up!

• Mounts on the battery terminal stud

• Screw terminals for securing wires

• Nylon insulated ring terminals included for each screw terminal

• Accepts small format circuit labels

• Insulating cover meets ABYC/USCG insulation requirements

• Ignition Protected–meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment

• Includes a 4-circuit negative busbar

• Includes write on labels

• Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals


• Circuits: 4

• Maximum Amperage: 100A per block, 30A per circuit

• Maximum Voltage: 32V DC

• Bus Material: Tin-Plater Copper C11000

• Mounting Hole: 3/8" (M10) Stud

• Screw Terminal Torque: 15 in-lb (1.69 Nm)

• Screw Terminal Type: #8-32

• Weight: 0.50lb (0.23 kg)
