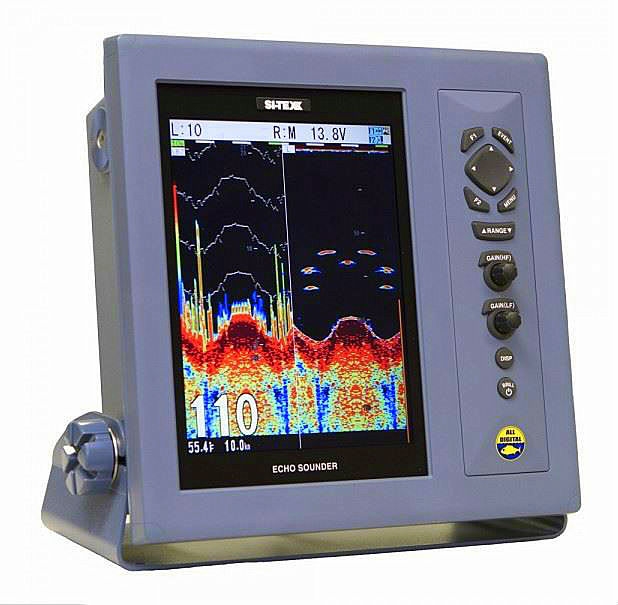

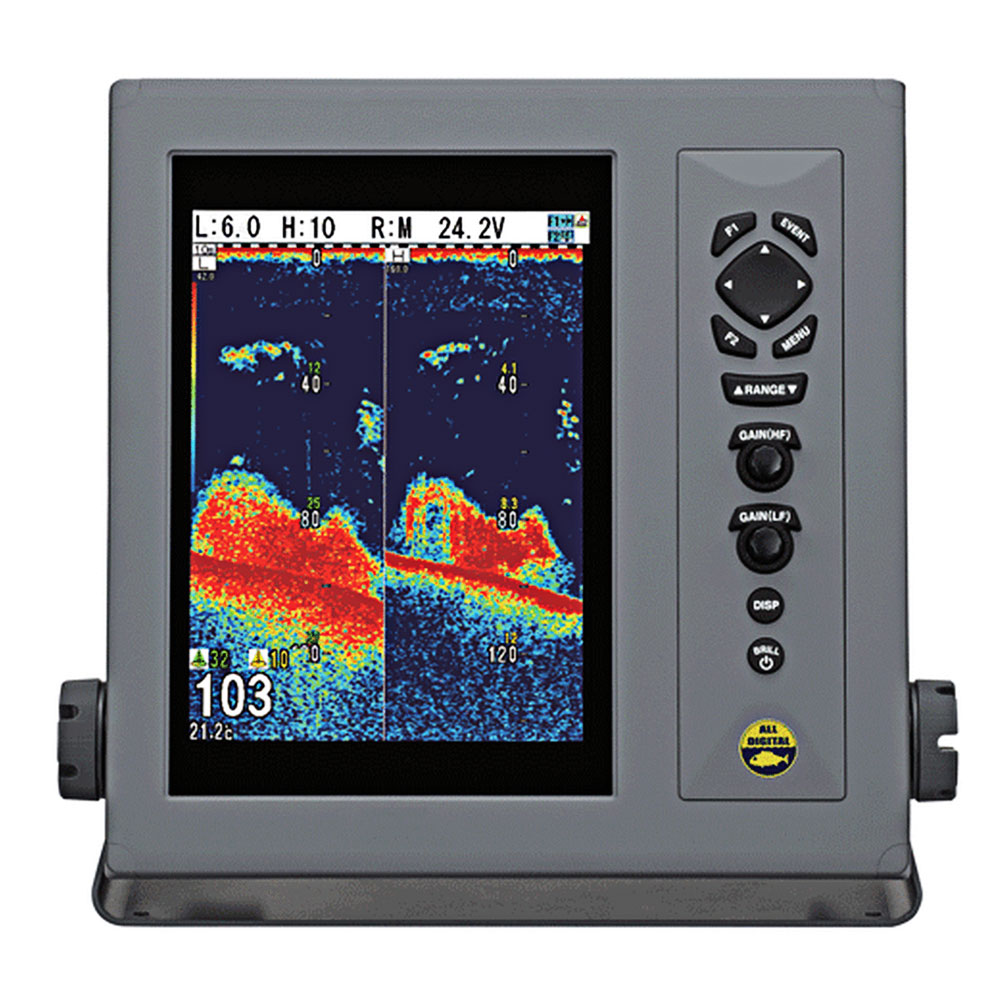

Si-Tex CVS1410 10.4'' Colour LCD Fishfinder 1kW

Provides a range of useful and unique features designed to enhance fishing success

The Si-Tex CVS1410 10.4'' Colour LCD Fishfinder is a professional-grade colour LCD echo sounder with advanced Digital Signal Processing and Digital Filtering for superior bottom-reading performance and clearer target images in all depths. It provides both professional and serious recreational fishermen with a range of important advantages, including depth range scales from 10 to 6,000 feet, superior clutter suppression and a faster transmission rate for enhanced shallow-water performance. Its digital design helps the CVS1410 detect fish close to the bottom in depths never before possible when using a high-frequency transducer. Bottom detail and fish targets are presented on the CVS1410's 10.4-inch colour TFT LCD display with 640X480 pixel resolution. Si-Tex offers the CVS1410 with several different transducer choices, allowing the boater to choose the ideal option for his preferred target fish, fishing methods and geographic region. The Si-Tex CVS1410 10.4in 1kW Colour LCD Sounder also offers an image storage feature that holds up to 10 “Snap-Shot” screen display images in its built-in memory for later recall with the touch of a button.

Si-Tex CVS1410 10.4'' Colour LCD Fishfinder Features:

• Koden Digital Filtering

• Standard or High Sensitivity

• 10.4-inch Digital Echo Sounder

• Detection area display

• Store Image

• Sona-Tone

• Auto Function

Si-Tex CVS1410 10.4'' Colour LCD Fishfinder Specifications:

• Output frequency: 50kHz/200kHz

• Output method: 50kHz/200kHz

• Output method: Single or alternate

• Output power: 1kW

• Output firing times: 3000 times/minute at maximum

• Display: Normal, Dual frequency, Zoom, NAV, A scope

• Range: 2.5m to 2000m; 8ft to 6500ft, maximum depth

• Range unit: m, fm, l.fm, ft

• Shift step: 1m, 10m, 1/8, 1/4; 3ft, 30ft

• Zoom range: 2.5m to 200m; 8ft to 650ft

• Image speed: 9 steps & stop

• Colour tone: Monochrome, 9 colour, 16 colour, 64 colour

• Power supply: 10.8 to 31.2vDC

• Power consumption: 30W or less (at 24vDC)

• Range of operating temperature: 15°C to +55°C

• Store temperature: 30° to +70°C

• Water Protection: IPX5

• Dimensions: 330.2mm X 364mm X 174.5mm (HxWxD)

• Weight: 16.4lbs

• Function registration: Image speed, A scope, Shift interference rejection, Colour rejection, Noise rejection, Zoom range, Zoom start, White line, Background colour

• Input data format & sentences: NMEA0183 Ver.1.5/2.0/3.0; GGA, GLL, HDT, MWV, RMC, VHW, VTG, ZDA

• Output data format & sentences: NMEA0183 Ver 2.0; DBT, DPT, GGA, GLL, HDT, MWV, RMC, TLL, VHW, VTG, ZDA


Note: Transducer not included.
