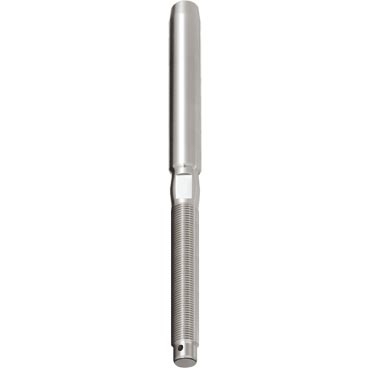

Ronstan O/B Swage Terminal 5/32in Wire 0.79cm Thread

#9156492
Warranty Badge - 12-Months
Ships Dec 17 - Jan 5
Calculate Shipping
Australia Wide
includes any items in cart
ONLY $34.99

Seen a lower price? Ask us to beat it

Add Items to Cart

Click on the image above to view full picture

Details

Details

Threaded swage terminals (1/8-5/8 wire) have rolled right hand UNF threads for greater strength.

Correct installation of a swage fitting requires that the shank of the fitting be formed down onto the wire with specialised dies and presses in accordance with the following dimensions
Features:
  • Cross drilled holes
  • Fine, rolled threads

Specifications:
Cable diameter4.0 mm
Suits TurnbuckleRF1531-0505
Thread 5/16' UNF
A6.2 mm
B45.5 mm
C123.0 mm
D60.0 mm
E8.8 mm
Weight40 g
