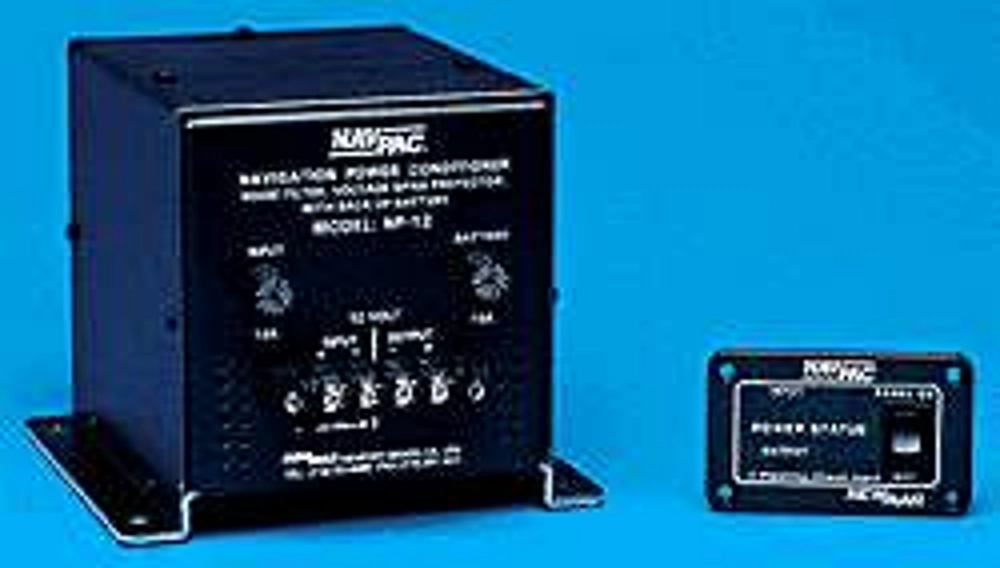

Newmar Nav-Pac DC Power Conditioner
Newmar Nav-Pac DC Power Conditioner
Deliver to:
Auckland 0626,
NZ
Estimated:
$0.00
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
DC UPS: Nav-Pac
Marine communication/navigation electronics such as programmable data transceivers, GPS and other microprocessor-controlled devices require clean and steady DC input power. Their sensitive circuitry is highly vulnerable to voltage drop from engine start, noise and line spikes from alternators and motors, and conducted noise from various other electronic devices. NAV-PAC prevents these conditions from affecting electronics.
Features- Prevents voltage ?drop-out? during engine start and/or other high intermittent loads such as Thrusters
- Absorbs line ?spikes?
- Filters out electrical interference
- Provides supplemental voltage/battery back-up for up to 15 min.
- Remote monitor panel provided, NP-12 only
Specifications Output:
12 Volt @ 20 amps max.Battery: Sealed Rechargeable 5.0 Amp-Hour, 5-7 years typical life, can be replaced. Low-voltage disconnect circuit protects battery from total discharge. Certified by DOT and IATA for shipment by air. Noise Filtering: Audio through 200 MHZVoltage Spike Protection: Transient energy capability; 100 Joules, 4,000 amps Max (8 x 20 micro seconds)
| Back-Up Power |
| 12V |
| 8A for 15 minutes |
| 12A for 8 minutes |
| 18A for 2 minutes |
| 20A for 1 minutes |
12V: 5.25 x 6.2 x 7.4 (13.3 X 15.7 X 18.8 cm) Weight:
12V: 5.9 lbs. (2.7 Kg.)Panel Dimensions: 3.5? W x 2? H (8.9 x 5.1 cm)
| Model | Description |
| NP-12 | Nav-Pac, 12V, 20 Amps |
