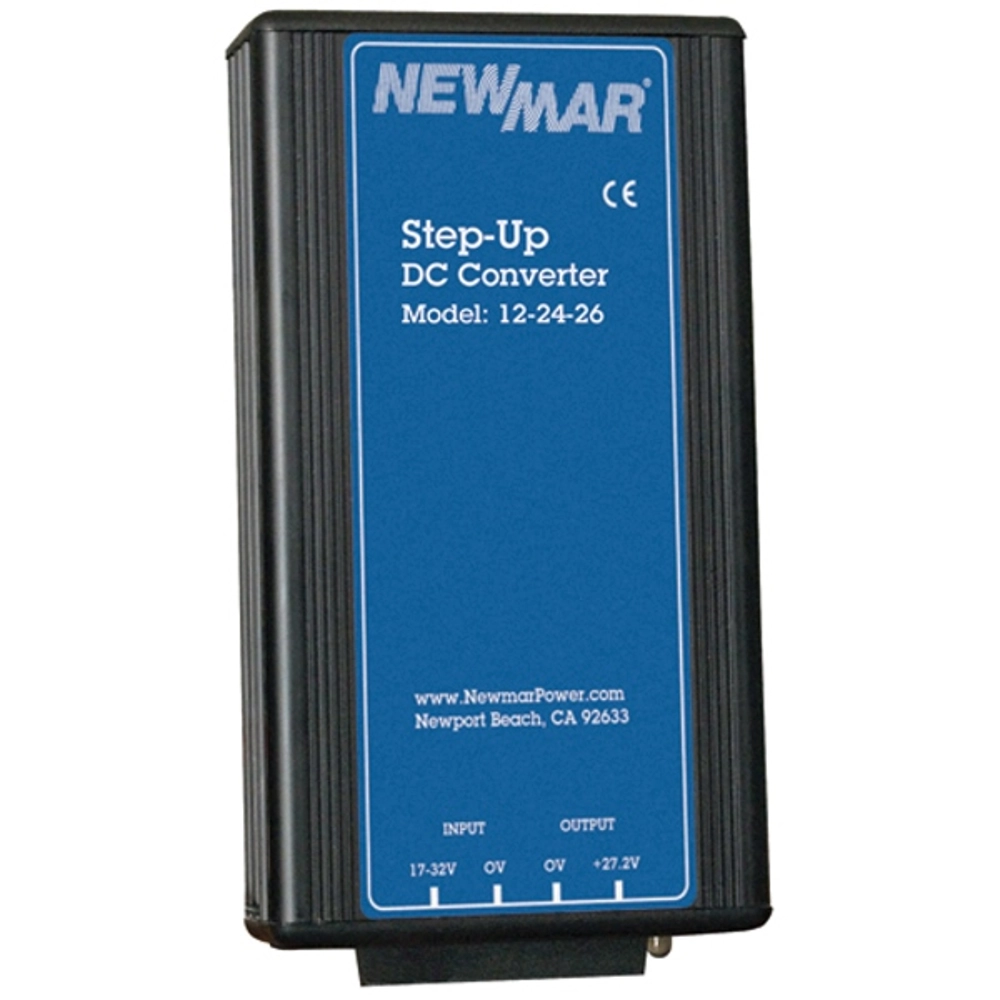

Newmar 12-24-25 Step Up DC Converter 25A Continuous
Newmar 12-24-25 Step Up DC Converter 25A Continuous
Deliver to:
Auckland 0626,
NZ
Estimated:
$0.00
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
These UP converters produce 24 volts from 12 volt systems and are ideal for managing dual voltage applications on marine vessels without having to install a 24 volt battery and dedicated charging system. Choose from two types depending on your application:
In the Standard, Non-Isolated Series the 12V input and 24V output share a common negative ground and are ideal when installing certain electronics that operate better on 24 volts when a robust 12 volt system exists. Models available in outputs of 7, 16 and 25 amps.
Standard, Non-Isolated Series- Intended for use on negative ground systems
- 10 -15 VDC input range
- Available in 7, 16 and 25 amp outputs
- Current limited, voltage spike suppression, automatic thermal shutdown and recovery
| Model | Input voltage |
Output voltage |
Output Amps Intermittent |
Output Amps Continuous |
Case Size |
Weight | |
| Lbs | Kg | ||||||
| Standard - Non-Isolated | |||||||
| 12-24-7 | 10-15 | 27.2 | 7 | 7 | C-1 | 1.4 | .64 |
| 12-24-16 | 10-15 | 27.2 | 16 | 16 | C-2 | 3.55 | 1.61 |
| 12-24-25 | 10-15 | 27.2 | 25 | 25 | C-3 | 4.1 | 1.86 |
| Case | Inches | Centimeters | |||
| H | W | D | H | W | D |
| C-1 | 3.5 | 3.5 | 1.75 |
