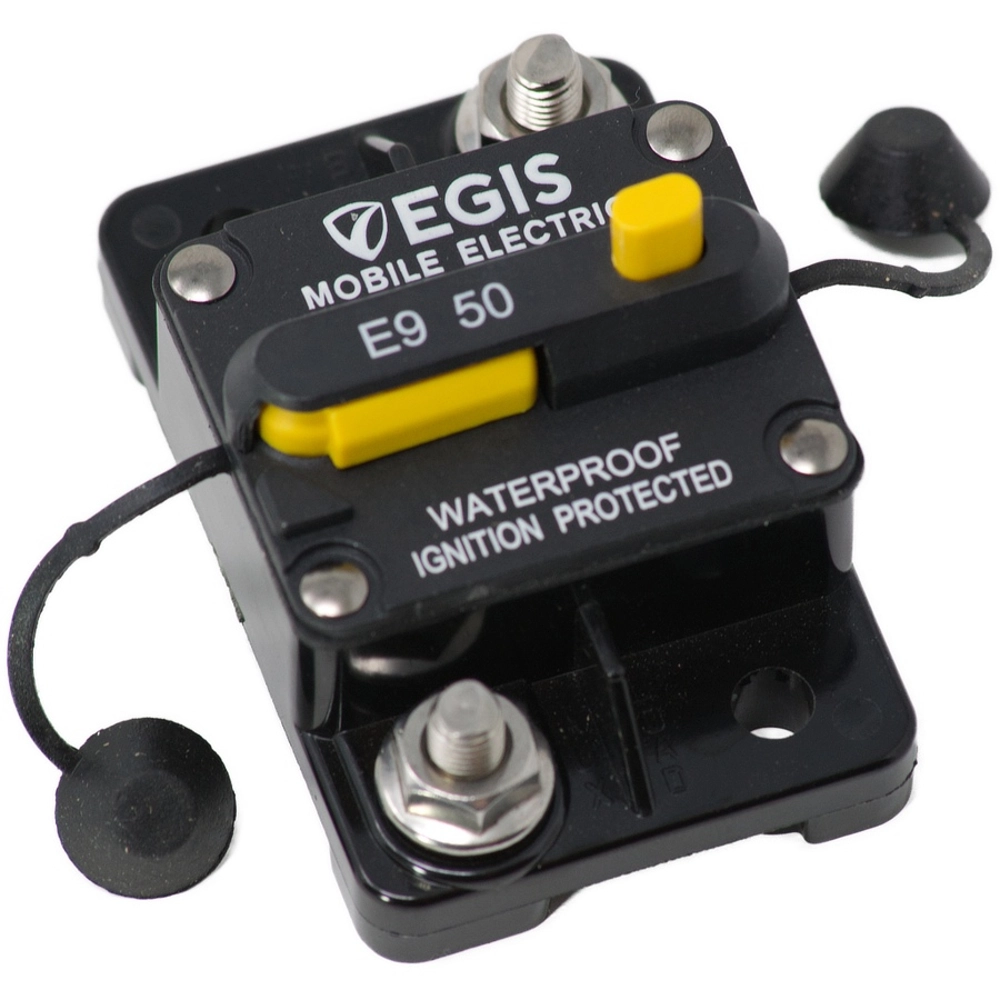

Egis Mobile Electric Thermal Circuit Breaker 50 A Surface Mount

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
BEP Heavy Duty Switchable Reset Circuit Breaker - Surface Mount

BEP Heavy Duty Switchable Reset Circuit Breaker - Surface Mount
Details

Details

Thermal Circuit Breaker 50 A, Surface Mount. Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Features:
  • Sealed Against Dust and Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
  • High Voltage (72 Vdc) Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications
  • High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
  • High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
  • Ignition Protected safe for installation in closed compartments with potential explosive gases
  • Harsh Environment design with stainless steel hardware, serrated flange nuts, and silicone terminal covers
  • Automatic Circuit Protection and Manual On/Off Switching combines dual functionality in one reliable and compact solution.
  • Visual Indication of Circuit Opened with bright yellow paddle, also used for re-setting to On.
  • Bullet-proof Construction: Sealed device, high temp materials for engine compartment applications, and stainless self-locking hardware.
  • 4 Year Industry Leading Warranty

Specifications:
  • Brand: Egis Mobile Electric
  • Country of Origin: China
  • Cross Reference: Blue Seas # 7183B
  • RoHS Compliant: Yes
  • Voltage: 12 or 24 VDC
  • Waterproof Rating: IP67 / IP6K9K
  • Max Current: 50 A
  • REACH Compliant: Yes
  • Number Of Circuits: 1
  • Ignition Protected: Yes
  • Interrupt Current: 5000 Amps
  • Operating Temperature: Up to 82 degreesC / 179 degrees F

Product Data Sheet
