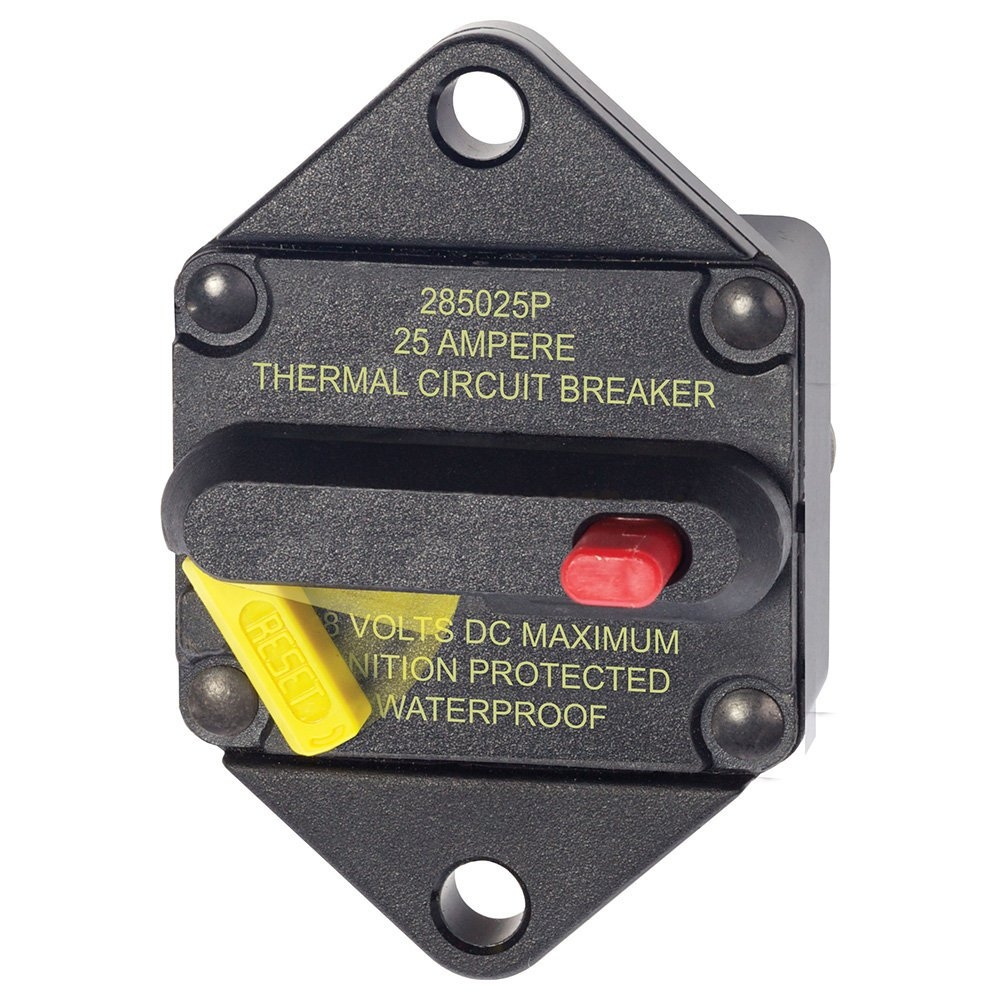

Blue Sea 285-Series Panel Mount Circuit Breaker 25A

Medium-duty circuit protection

The Blue Sea 285-Series Panel Mount Circuit Breaker is designed to protect the wire in electrical systems. Its robust design makes it ideal for marine, and vehicle AC and DC electrical systems. This thermal circuit breaker provides medium-duty circuit protection for 25 amp loads when switching and circuit protection are both required.

Blue Sea 285-Series Panel Mount Circuit Breaker Features:

• Drop in replacement for 185-Series Circuit Breakers
• Visible reset lever shows open condition
• Ignition protected: safe for installation aboard gasoline powered boats
• Meets SAE J1171 external ignition protection requirements
• Weather resistant
• Combines switching and circuit breaker function into one unit
• Trip-free: cannot be held closed after trip

Blue Sea 285-Series Panel Mount Circuit Breaker Specifications:

• Part number: 7080
• Amperage: 25A
• Maximum voltage: 48VDC
• Mounting: Panel Mount
• Circuit breaker type: Thermally responsive Bi-metal blade
• Terminal stud: M6 (accepts 1/4" Ring Terminal)
• Terminal stud torque: 50 in-lb (5.65 Nm)
• Interrupt capacity: 3000A @ 48V
• Minimum operating temperature: -40 °C
• Maximum operating temperature: 85 °C
• Circuit breaker class: Type III - switchable/manual reset - trip free
• Weight: 0.23kg

Note: Do not use as a switch where high inrush currents are expected.
