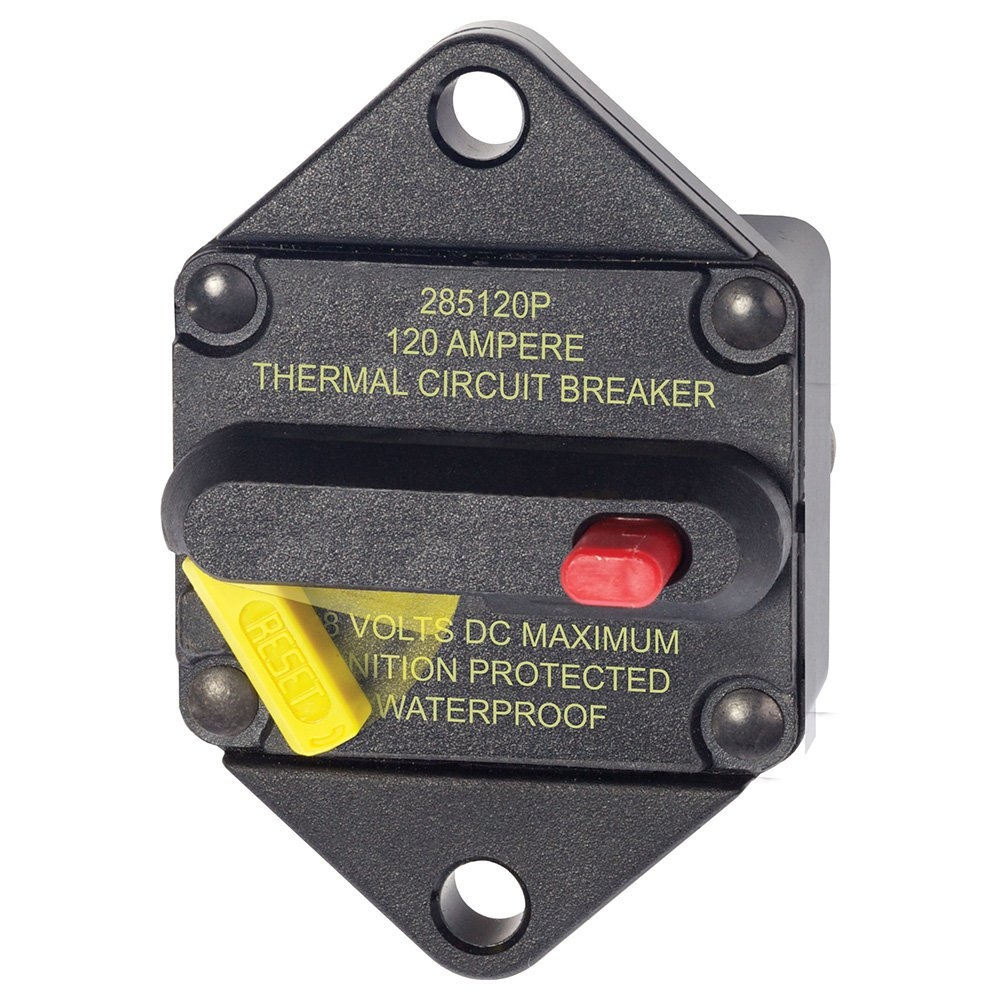

Blue Sea 285-Series Panel Mount Circuit Breaker 120A
Blue Sea 285-Series Panel Mount Circuit Breaker 120A
Deliver to:
Auckland 0626,
NZ
Estimated:
$0.00
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Medium-duty circuit protection
The Blue Sea 285-Series Panel Mount Circuit Breaker is designed to protect the wire in electrical systems. Its robust design makes it ideal for marine, and vehicle AC and DC electrical systems. This thermal circuit breaker provides medium-duty circuit protection for 120 amp loads when switching and circuit protection are both required.
Blue Sea 285-Series Panel Mount Circuit Breaker Features:
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected: safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather resistant
- Combines switching and circuit breaker function into one unit
- Trip-free: cannot be held closed after trip
Blue Sea 285-Series Panel Mount Circuit Breaker Specifications:
- Part number: 7088
- Amperage: 120A
- Maximum voltage: 48VDC
- Mounting: Panel Mount
- Circuit breaker type: Thermally responsive Bi-metal blade
- Terminal stud: M6 (accepts 1/4" Ring Terminal)
- Terminal stud torque: 50 in-lb (5.65 Nm)
- Interrupt capacity: 3000A @ 48V
- Minimum operating temperature: -40 °C
- Maximum operating temperature: 85 °C
- Circuit breaker class: Type III - switchable/manual reset - trip free
- Weight: 0.23kg
Note: Do not use as a switch where high inrush currents are expected.
