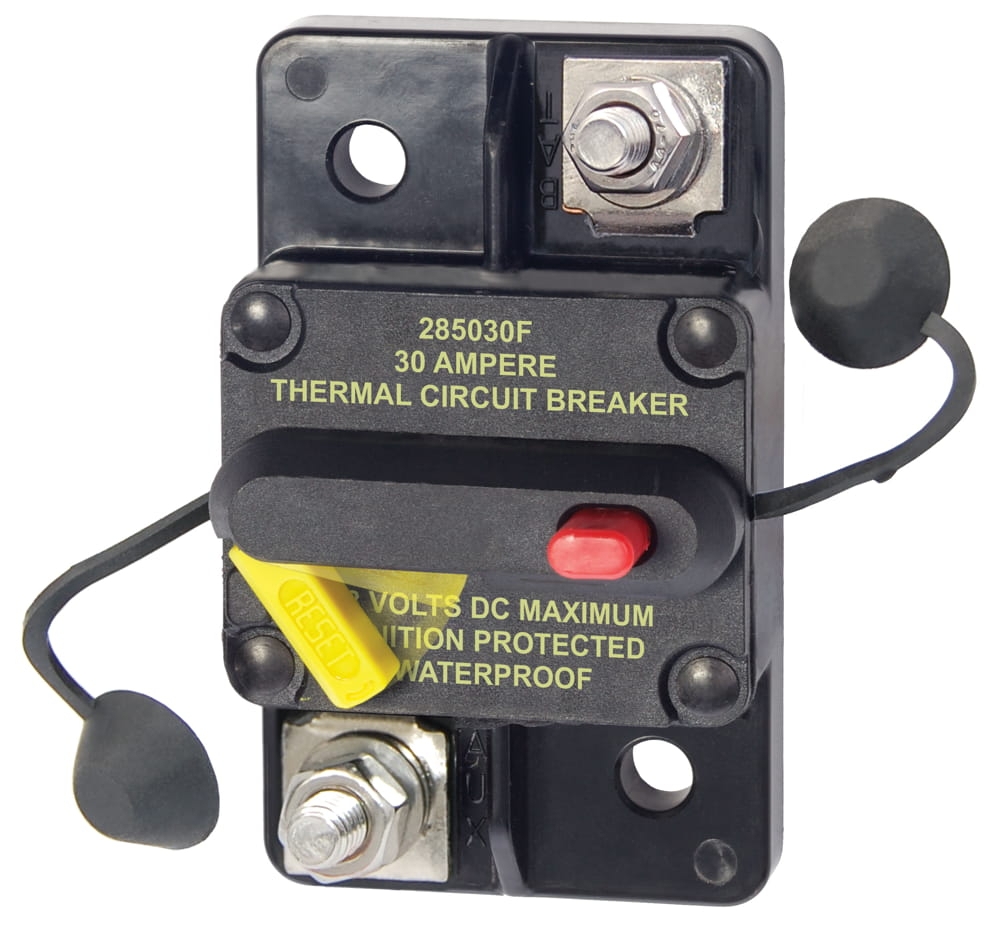

Blue Sea 285-Series Circuit Breaker Surface Mount 30 Amp

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
BEP CLB Series Push Reset Thermal Circuit Breaker - Unit Only

BEP CLB Series Push Reset Thermal Circuit Breaker - Unit Only
Details

Details

Ble Sea Systems 285-Series Circuit Breaker - Surface Mount 30A

Model: 7181-BSS

Features:
  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit
  • ''Trip Free'' - cannot be held closed after trip

Do not use as a switch where high inrush currents are expected

Specifications
Amperage30A
Maximum Voltage48V DC
MountingSurface Mount
Circuit Breaker TypeThermally responsive Bi-metal blade
Terminal Stud Torque50 in-lb (5.65 Nm)
Interrupt Capacity3000A @ 48V
Minimum Operating Temperature-40 degrees C
Maximum Operating Temperature85 degrees C
Circuit Breaker ClassType III - switchable/manual reset - trip free
Terminal StudM6 (accepts 1/4'' Ring Terminal)
