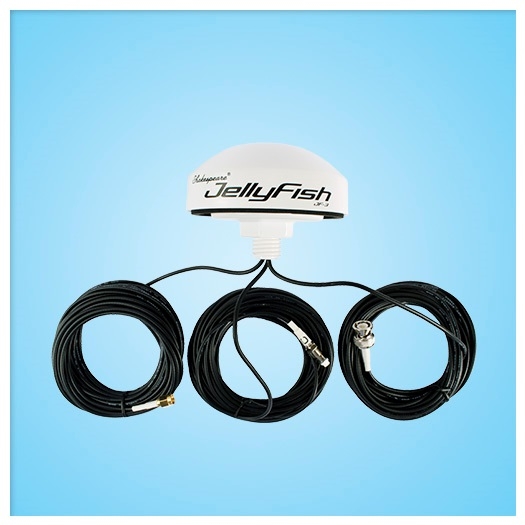

Shakespeare Marine JF-3 Classic Multi-Band Antenna

Click on the image above to view full picture

Details

Details

The JellyFish is a 3-way omni-directional, IP67 waterproof antenna for marine communication and transportation harsh environment applications. This antenna delivers advanced antenna technology for GPS/2G/3G/4G/WiFi in a compact package. The functions of WiFi include 802.11a, 802.11b/g/n and emerging 802.11ac. The antenna has its own ground-plane and can radiate on any mounting surface such as metal, plastic, or fiberglass without affecting performance.

Shakespeare JF-3 Galaxy® Multi-Band Antenna
  • 3-in-1 antenna functions
  • High performance for GPS/WiFi/2G/3G/4G
  • Resistant to harsh outdoor environment
  • Omni-directional for cellular system
  • 1 Cellular/LTE (2G/3G/4G) antennas
  • 1 WiFi (802.11abgn, ac) 2.4/5G antennas
  • 1 GPS antenna
  • Waterproof IP67
  • Mounting Thread: M20 x 2.5mm
  • Dimensions: 1.6? X 4?
  • ?Shakespeare Limited Warranty: 5 years

Specifications:
WiFi Specifications
Average peak gain 4.8dBi - 2.4approx. 2.5GHz
6.9dBi - 5approx. 5.4GHz
7.7dBi - 5.4approx. 5.9GHz
Average efficiency: 73% - 2.4approx. 2.5GHz
65% - 5approx. 5.4GHz
70% - 5.4approx. 5.9GHz
VSWR Max: 3.0:1
Impedance 50 ohm
Connector R/P SMA Male
GPS Specifications
Frequency band 1575.42 +/- 2MHz
VSWR 1.5 Max
bandwidth 20MHz Min. at -10dB
Axial ratio / Polarization: 3dB Max. on a 70mm x 70mm ground plane / Right hand
Peak Gain: 4dBic Min. at 0 degrees on a 70mm x 70mm ground plane
Gain & radiation coverage: ?-4dBic at -90 degrees ? ?90 degrees (over 75% volume)
Connector: BNC Male
