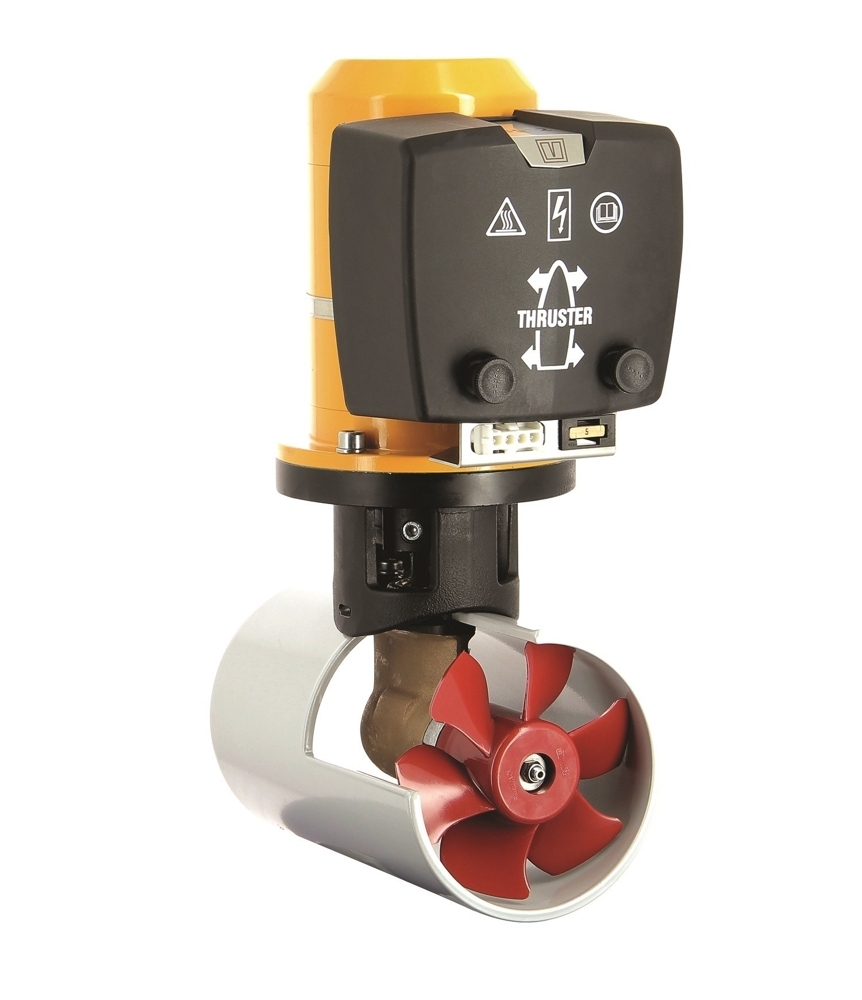

VETUS Bow Thruster 35kgf 12v 125mm

Click on the image above to view full picture

Frequently Bought Together

$0
Details

Details

Featuring all the updates of its larger brother, the BOW3512F is suitable for a 125 mm diameter tunnel. This means the powerful BOW3512F can be installed in even smaller boats. The flexible rubber coupling eliminates motor vibrations and the new motor is more energy efficient. To accommodate the flexible coupling, the flange height will increase by 30 mm. Apertures in the flange enable easy checking of the coupling. Last but not least, the flange face will change from triangular to round, allowing the motor to be rotated in steps of 90 degrees as opposed to the current steps of 120 degrees, and creating uniformity in the entire DC bow thruster range.

Features
  • Fits a 125 mm tunnel
  • Flexible coupling between tailpiece and motor eliminates noise
  • New motor is more energy efficient
  • Easy to install
  • Single propeller creates less flow disturbance in the tunnel
  • VETUS unique propeller blade design minimises cavitation noise
  • Strong synthetic propeller is resistant to corrosion and reduces weight
  • Spiral gears minimise transmission noise
  • Meets EMC requirements
  • VETUS presents the new BOW3512F.


Specifications:
Voltage (V) 12 V
Ignition protection No
Thrust (N / kgf) 350/35
Power (kW) 1,5
Motor, reversible D.C. Yes
Internal tunnel diameter (mm) 125
Weight (kg) 12
Current consumption (A) 205
Continuous operating time (min) 4
Max. operating time (minutes) 4
Main fuse 'slow blow' (A) 160
Batteries 12 V, min./max. Ah 1x55/1x105
Battery cables, length pos./neg. cables (m/mm) 0-11/35
Battery main switch: model BATSW / type BPMAIN 250/12
Size A in mm, see drawing 138
Size B in mm, see drawing 340
Size C in mm, see drawing 79
Size D min./max. in mm, see drawing 300/600
Size E in mm, see drawing 149
Size F, diameter in mm, see drawing 112
Size G min. in mm, see drawing 125
Size H, diameter in mm, see drawing 125


Product Data Sheet

Note: This listing is for the VETUS Bow Thruster ONLY. This is not a complete kit. Tunnel, data cable, control panel, fuse and fuse holder is still needed. Please note thruster packages are spec’d up individually to suit each customer’s needs. Please contact a Marine Deals sales specialist to ensure you get the complete and ideal components for your build. Contact our sales team via: 0800 633 257 / 09 281 3150 (NZ) or 1800 154 713 (AU)
