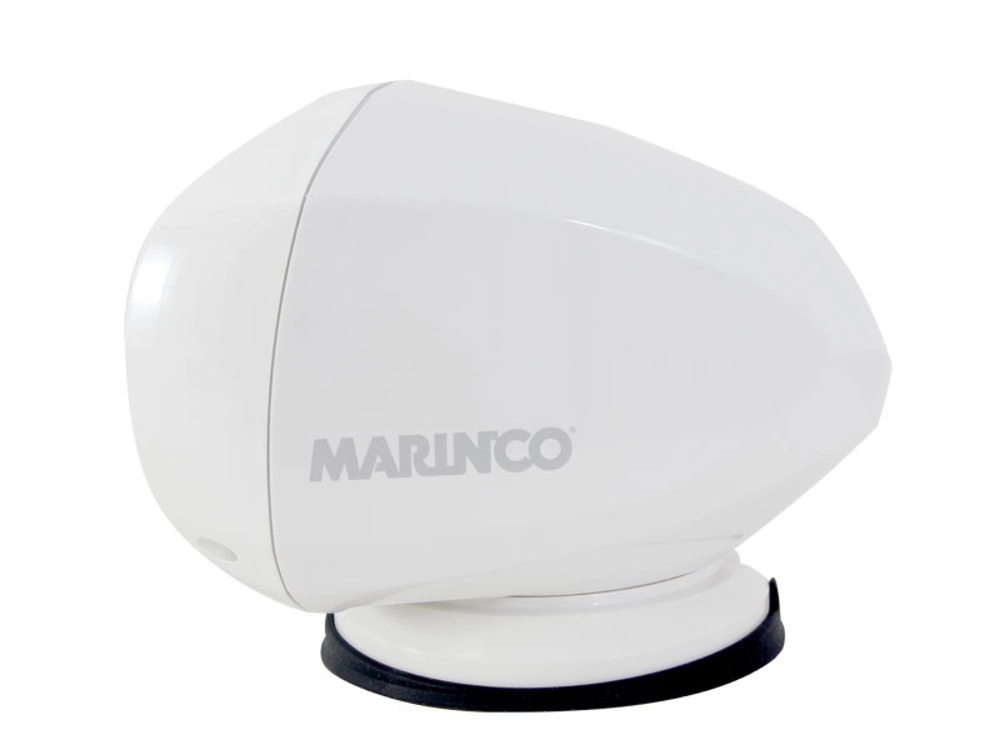

Marinco SPL-12W Precision Halogen Spotlight 12/24V 100W White

Reliable and powerful electronic spotlights

Marinco's innovative, new Marinco Precision Halogen Spotlight addresses the most common issues found in marine-grade spotlights. In doing so it has become the most versatile, durable, consistent and easy-to-use spotlight on the market. Its unique, totally enclosed housing design protects all critical components from moisture, salt, shock and vibration for long-lasting operation. Whether mounted upright or suspended upside down, you get 370° sweep rotation and 120° tilt (75° up, 45° down) in a durable IP56 weatherproof housing. Inside, a brilliant 100 Watt H3 Halogen lamp with an optimised parabolic reflector pierces the ultra clear lens to provide a consistent light pattern.

Marinco Precision Halogen Spotlight Features:

• Universal 12/24 Volt circuit (shipped with 12 Volt bulb installed / 24 Volt bulb included)

• Replaceable 100W, H3 halogen lamp

• Double O-ring sealed housing

• Dual-speed, ultra-quiet motor

• Easy snap-in mount system

• Polished Lexan lens

• Available colour: White finish


Marinco Precision Halogen Spotlight Specifications:

• Bulb: 100 Watt, H3 Halogen (replaceable) (12 Volt installed / 24 Volt included)

• Power: (Input voltage) 12 Volt or 24 Volt (note: must match bulb with voltage)

• Current draw (idle / in use): 0.03 Amps / 7.0 Amps

• Peak beam intensity: 210,000 cp

• Peak beam distance: 917 ft (280 m)

• Lux @ 66' (20m): 525 Lux

• Coverage at 66' (20 m): 132 sq Ft (12 sq m)

• Rotatation: 370° (built in limit stops)

• Tilt: 120° Tilt (75°◦up and 45° down)

• Wireless range: 200 ft (65m)

• Dimensions: 7.5"W x 7.5"H x 9.25"D (19cm x19cm x 23.5cm)

• Weight: 3.30 lbs (1.5 kg)

• Housing material: UV resistant PC/ASA

• Lens material: UV resistant Lexan

• Wire type: 16 AWG power 24 AWG control

• Operating temp range: 5°F to 113°F (-15°C to 45°C)

• IP Rating: IP56

• Tested in accordance with ANSI/NEMA standard FL1


What's in the box:

• Spotlight with 12 Volt bulb installed

• Mounting bracket (no fasteners included)

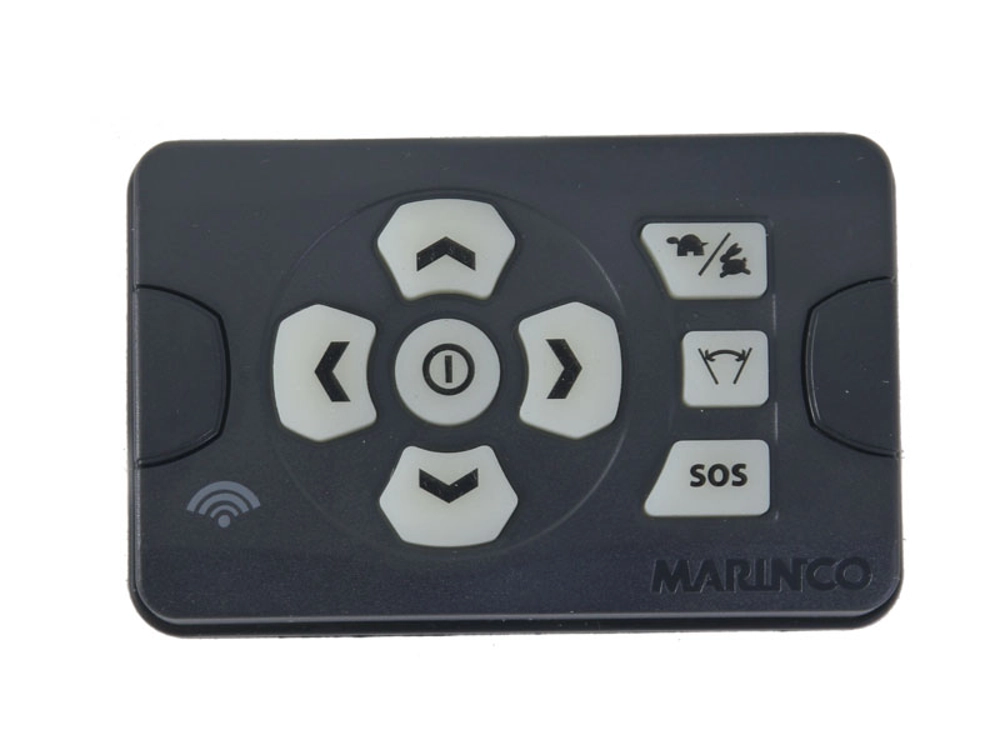

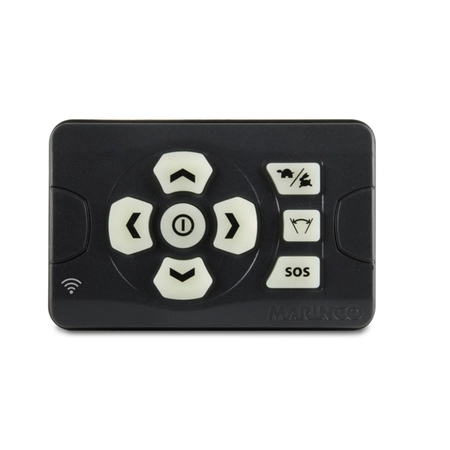

• Wireless Bridge Remote (SPLR-2)

• Instruction manual

• Additional 24 Volt bulb
