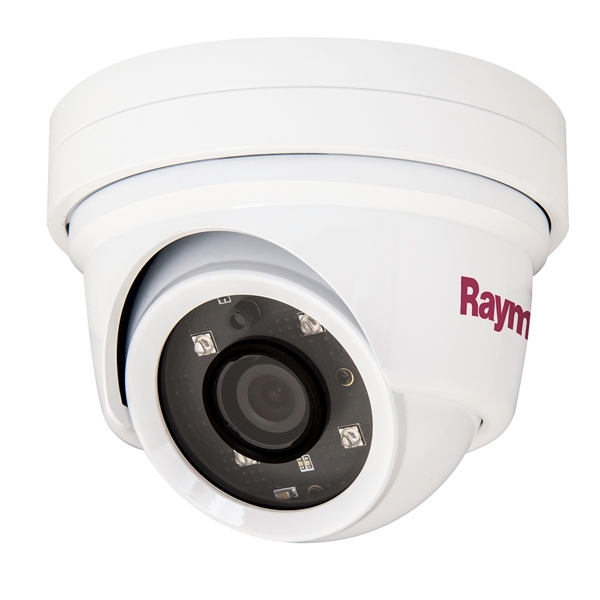

Raymarine CAM220 IP Marine Network Dome Camera
Raymarine CAM220 IP Marine Network Dome Camera
Deliver to:
Auckland 0626,
NZ
Estimated:
$0.00
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.
Features:- Plug and play integration with Raymarine MFD's running Lighthouse II
- Power over Ethernet (PoE) or direct 12v DC power supply
- High bright IR LEDs for operation in total darkness
- Simple mechanical frame allows the camera to be locked, rock steady, into position
Specifications:
| System | |
|---|---|
| CPU | 32-bit ARM9 RISC CPU up to 432MHz |
| Flash / SDRAM | 128MB / 128MB |
| Camera | |
| Image Sensor | 2.0 Megapixel 1/2.8inch SONY progressive scan CMOS(Exmor) |
| Total Pixels | 1952(H) x 1116(V) 2.18 Megapixel |
| Effective Pixels | 1944(H) x 1104(V) 2.15 Megapixel |
| S/N Ratio | More than 50dB |
| Minimum Illumination | 0Lux (IR On) |
| IR Distance | 20M (4 Built-in High Power LED's) |
| Day and Night | ICR |
| Lens | 3.6mm Wide angle Megapixel Board Lens |
| Field of View | Horizontal = 93.0 deg +/- 3 deg Vertical = 51.0 deg +/- 3 deg |
| Video | |
| Video Compression | H.264 High Profile@4.0, MJPEG -Image quality: 3 Steps |
| Resolution | Up to 1920 x 1080 (Full HD) |
| Frame Rate | H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution |
| Video Streaming | Support multi stream with H.264, MJPEG, Adjustable frame rate, CVBR/CBR in H.264 |
| Image Setting | Day and Night Auto White Balance Shutter Speed (1/4approx. 1/2,000) DSS BLC Brightness, Contrast, Sharpness, Mirror |
| System Integration | |
| Security | Password protection, User access log, HTTPS encryption |
| Supported Protocol | HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP |
| Intelligent Video | Motion detection up to 1920x1080 with 12x12 blocks |
| Physical | |
| Power Source | DC12V/1.5A, PoE(Power over Ethernet): 802.3af |
| Power Consumption | Max. 5.4W with IR |
| Net Weight | 230g (camera only) |
| LED's | Power, Network Connection |
| Dimensions | 100mm(D) x 80mm(H) |
| General Operation Temperature | -10 degreeapprox. 50 degree Celsius(14Fapprox. 122F) |
| Storage Temperature | -20 degreeapprox. 60 degree Celsius(-4Fapprox. 140F) |
Some of our product deals are strictly limited - once they're gone, they're gone! Secure yourself this amazing deal while stocks last...by clicking the Add to Order button above.
