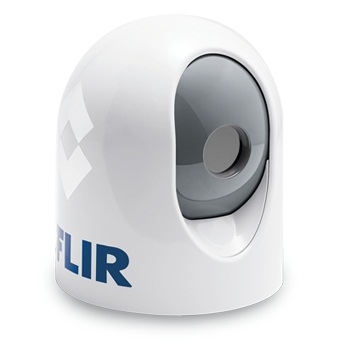

FLIR MD324 Thermal Imager 320X240 Resolution 30Hz

Affordable fixed-mount thermal imaging camera

The FLIR MD324 Thermal Imager provides four-times the thermal resolution and more than twice the range performance compared to other systems. This fixed-mount thermal night vision system helps with steering around obstacles, collision avoidance and finding people in the water at night. It also features a 2X digital zoom allowing you to magnify distant targets for enhanced viewing and identification.

FLIR MD324 Thermal Imager 320 X 240 Resolution 30Hz Features:

• 320 X 240 thermal imaging

• Easy to install and control

• 2X digital zoom

• Slim profile

• Double shielded

• FLIR Digital Detail Enhancement (DDE)

• Can be mounted right side up or upside down

• Simple Ethernet connections and IP addressability

FLIR MD324 Thermal Imager 320 X 240 Resolution 30Hz Specifications:

• Detector type: 320 x 240 VOx Microbolometer

• FOV: 24° x 18° (NTSC)

• Focal length: 19mm

• Image processing: FLIR DDE

• E-zoom: 2x

• Weight: 3lbs

• Pan coverage: +/- 30° per key

• Tilt coverage: +34°/ -27° locked in at installation

• Video output: NTSC or PAL, 30Hz or <9Hz

• Power consumption: 4.8W nominal; 12.5W, max

• Operating temperature range: -25°C to +55°C

• Storage temperature range: -40°C to +85°C

• Automatic window defrost: Standard at power-up

• Sand/Dust: Mil-Std-810E

• Water ingress: IPx6

• Shock: 15g vertical, 9g horizontal

• Lightening protection: Standard

• Salt mist: IEC60945

• Wind: 100 knot (115.2 mph)

• EMI: IEC 60945

What's in the box:

• Single payload camera with 320 x 240 pixel microbolometer

• 25ft analog video cable (308-0164-25)

• 25ft shielded Ethernet cable (308-0163-25)

• Weather proof Ethernet coupler (4115028)

• PoE Injector (4113746)

• Mounting Hardware

• Operator's manual, Installation guide on CD
