Style, function and durability

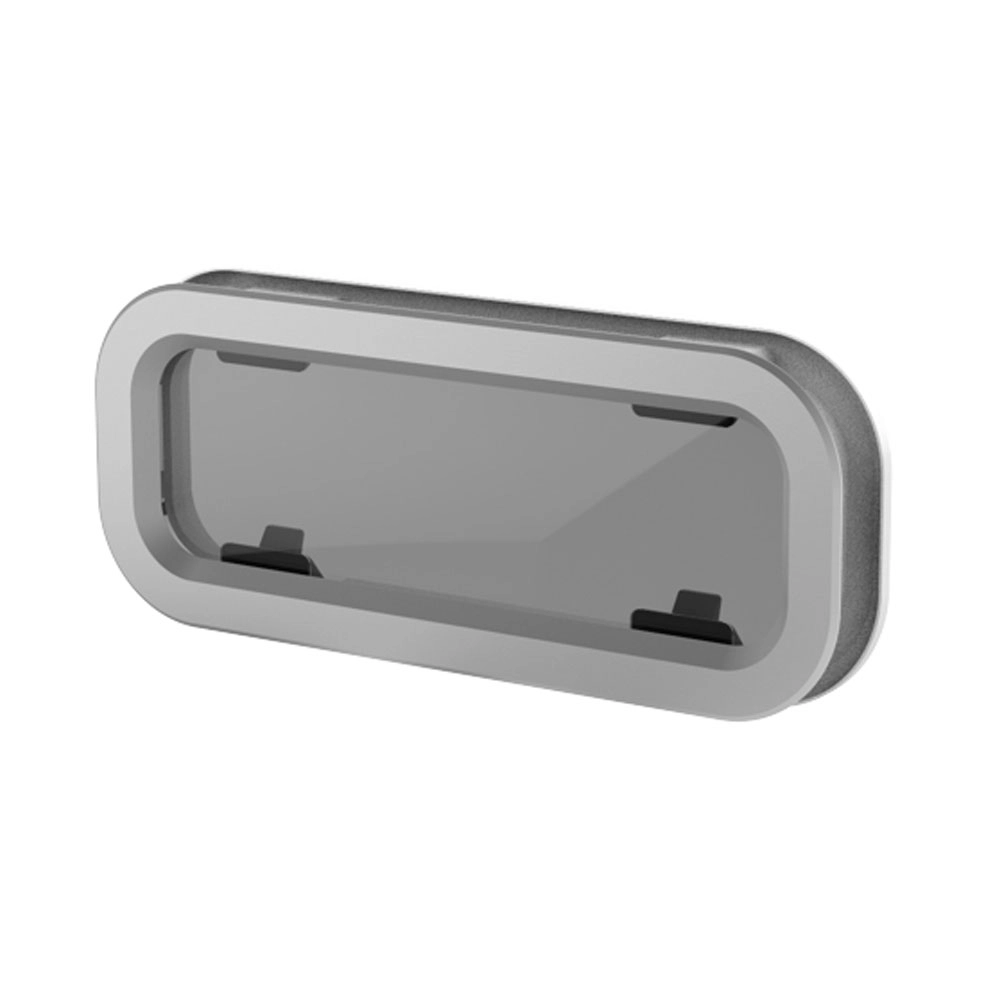

The Lewmar Standard Opening Portlight perfectly matches any hatch in the Lewmar range. It’s stylish, competitively priced and easy to both use and install. The white ABS plastic trim is designed for excellent durability in the rough marine environment. This opening portlight is easily fitted by clamping the cabin sides between the inner and outer frame with the screws provided.
Lewmar Standard Opening Portlight Features:
- Easy to use and install
- White ABS plastic trim
- Can be installed with sealant or closed cell PVC tape
- Includes flyscreen
Lewmar Standard Opening Portlight Specifications:
| Size | X (Width) | Y (Length) | Z (Height) | R (Radii) | X1 (Cut-out width) | Y1 (Cut-out length) | R1 (Cut-out radii) |
|---|---|---|---|---|---|---|---|
| 2 | 176mm | 425mm | 4mm | 62mm | 156mm | 405mm | 52mm |
| 3 | 191mm | 449mm | 4mm | 62mm | 171mm | 429mm | 52mm |
| 4 | 191mm | 646mm | 4mm | 62mm | 171mm | 627mm | 52mm |
| 5 | 264mm | 449mm | 4mm | 62mm | 244mm | 429mm | 52mm |
Lewmar Standard Opening Portlight Fitting Guide
