Blue Sea E-Series Battery Switch On-Off with AFD

#9191375
Warranty Badge - 12-Months
Ships Dec 25 - Jan 23
Calculate Shipping
Australia Wide
includes any items in cart
ONLY $115.00

Seen a lower price? Ask us to beat it

Add Items to Cart

💬 Report incorrect product information

Blue Sea E-Series Battery Switch On-Off with AFD

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Blue Sea M-Series Mini Dual Circuit Plus Battery Switch 300A On/Off Red

Blue Sea M-Series Mini Dual Circuit Plus Battery Switch 300A On/Off Red
Why pay $129.00
ONLY $97.99
SAVE $31.01!
Details

Details

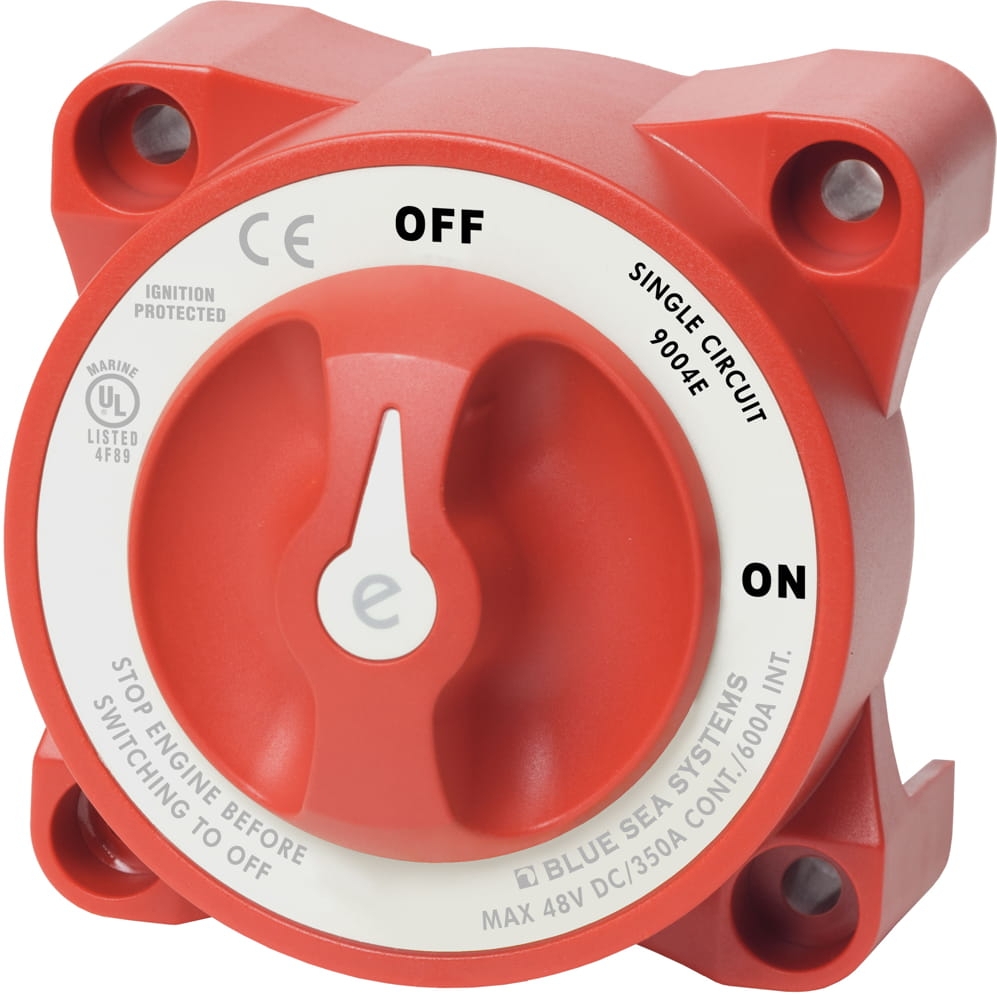

Blue Sea Systems e-Series On-Off Battery Switch with AFD

Model: 9004E-BSS

Features:
  • 350 Amps continuous rating for inboard gasoline or diesel engines.
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Accepts up to 4/0 AWG battery cables
  • Studs accepts 3/8'' (M10) ring terminals
  • 7/8'' (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Fits most Perko and Guest low amperage battery switch hole patterns
  • Case design allows surface or rear panel mounting
  • Tactile indicator conveys knob position by feel
  • Waterproof — rated IP66 from water projected in powerful jets
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Includes AFD (Alternator Field Disconnect)

Switches a single battery to a single load group

Specifications
Switch TypeSingle Circuit ON-OFF
ColorRed
Switch Positions2
Battery CombineNo
Alternator Field DisconnectYes
Maximum Voltage48V DC
Terminal Stud Torque140 in-lb (15.82 Nm)
Continuous Rating350A
Intermittent Rating600A (5 min)
Cranking Rating 30 sec1200A per circuit
Battery Inputs1
Cable Clearance For 4/0 AWG Cables1.10in (27.94 mm)
Cable Size to Meet Ratings4/0 AWG (120mm )
Mounting HolesAccept 1/4'' (M6) Screw
Stud MaterialTinned Copper
Terminal Stud Size3/8'' - 16 (M10)
