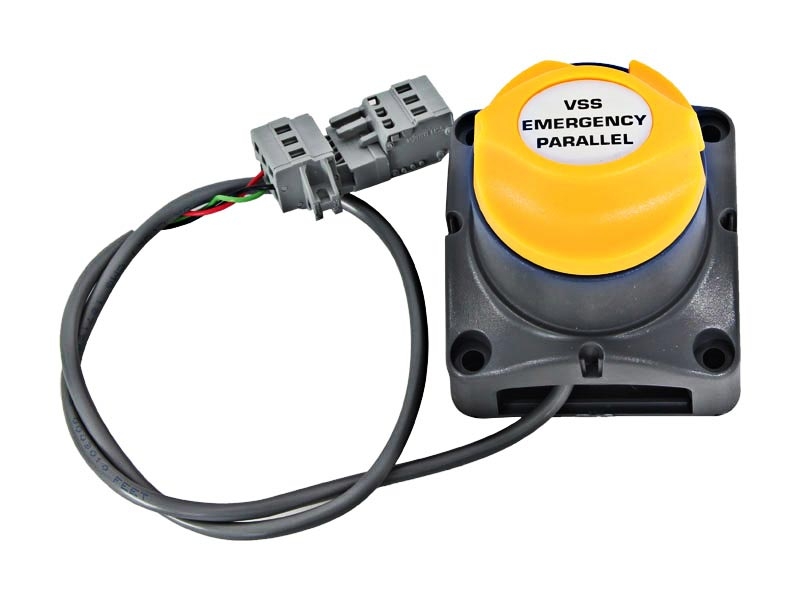

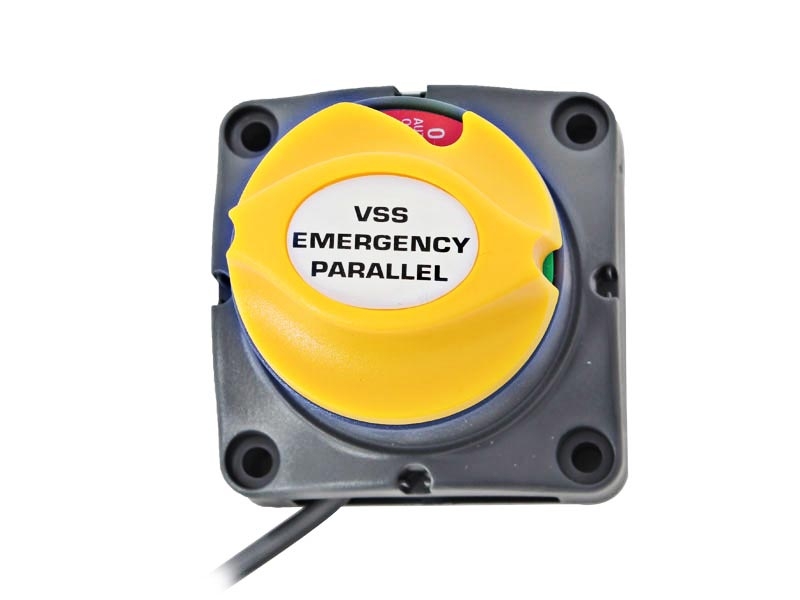

BEP 701 Dual Operation VSS and Emergency Parallel Switch

Uses the same operation as the motor driven battery switches

The BEP 701 Dual Operation VSS and Emergency Parallel Switch supports dual battery sensing and remote emergency parallel function. It can be operated through a momentary button on the dash which will parallel the batteries for a preset time of 10 minutes. Once this 10 minutes has passed, if the voltage is up high enough for the voltage sensitive switch to operate, it will stay engaged. If not, it will disengage. Plus, it features manual override option using a high current VSR is covers your dual battery charging requirements and emergency parallel operation in one unit.

Engine Run Sensing System
This battery switch engages when the voltage on either start or house battery reaches 13.7 volts. If the combined battery voltage drops below 13.0 volts and the engine is not running, after 5 seconds the contacts will open and stay open until the start or house battery voltage exceeds 13.7 volts. If the combined battery voltage drops below 12.2 volts and the engine is running, after 5 minutes the contacts will open and stay open until the start or house battery voltage exceeds 13.7 volts. If voltage drops below 13 volts and stays above 12.2 volts on either start or house battery while engine is running, the VSR will stay engaged.

BEP 701 Dual Operation VSS and Emergency Parallel Switch Specifications:

• Volts: 12V

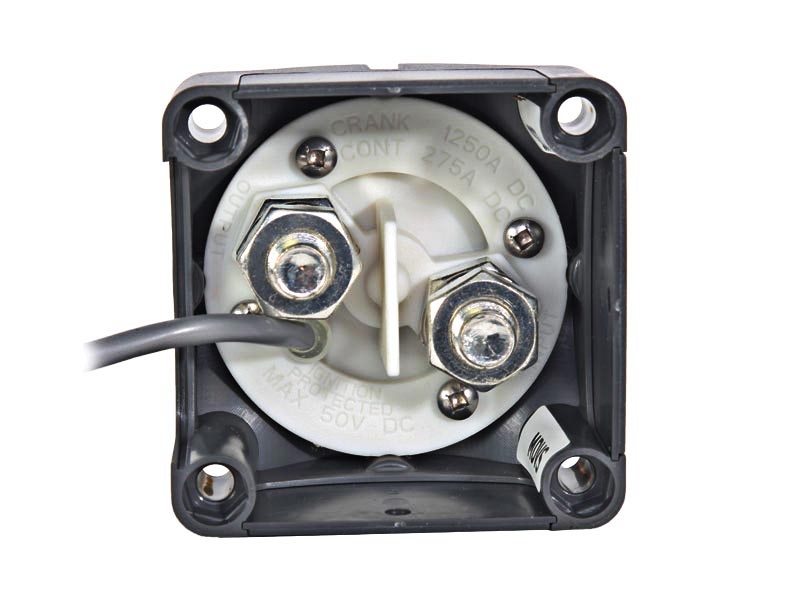

• Rating: 275Amps

• Engages: 13.7

• Disengages: 12.2 - 13.00

• Dimensions(mm): 68 x 68 x 101

Optional Accessory:

BEP Marine Remote for Emergency Parallel Switch is for the remote operation of the 701-MDVS and 720-MDVS voltage sensitive battery switches. This momentary switch is used to activate the 10 minute emergency parallel function, a built-in of the BEP Marine battery switches. It can conveniently be placed within easy reach of the operator. And, it also features an LED battery switch status indicator.

BEP Marine Remote for Emergency Parallel Switch Features:

• Durable construction

• Convenient remote use of the battery switches

• Activates the 10 minute emergency parallel function

• Can be mounted standalone or within the Contour Connect panel range

• Measures 2 11/16" x 2 11/16"

• Works with 12V or 24V systems
