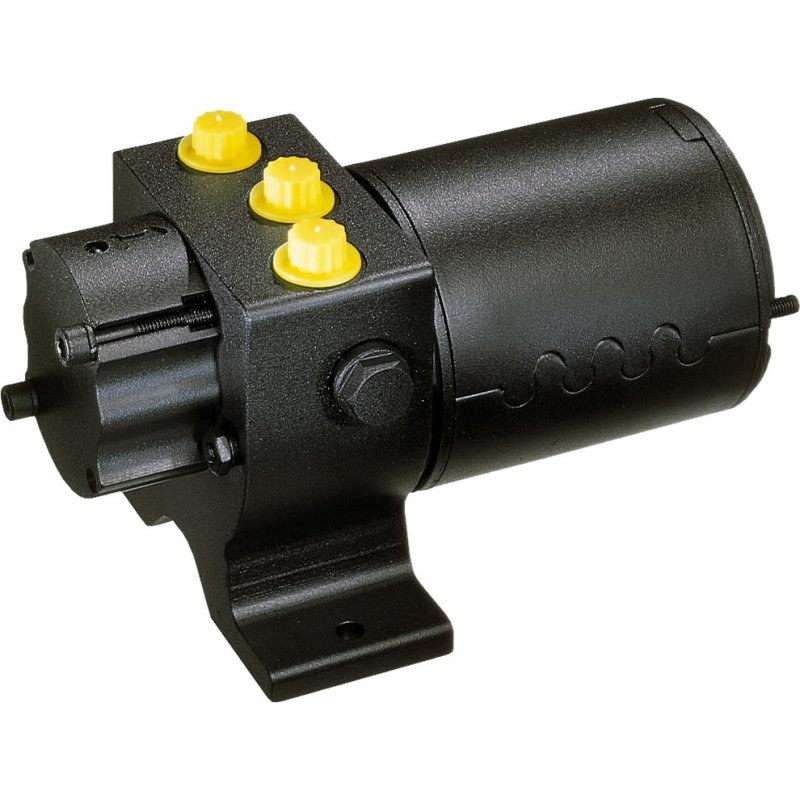

Raymarine Type 1 Autopilot Pump 12v

Click on the image above to view full picture

Details

Details

Outstanding steering control

Built with precise and reliable components, the Raymarine Type 1 Autopilot Pump is designed to control a vessel’s steering mechanism as part of the Raymarine autopilot system. It operates with a precision gear pump and a check valve controlled by a servo motor which prevents the pump to be back driven by the manual steering system. The T1 pump’s motor can be removed from the pump without air flowing into or fluid escaping from the hydraulic system, avoiding system damages.

Raymarine Type 1 Autopilot Pump Features:
  • Easy installation
  • Primarily designed for use on boats with existing hydraulic steering system
  • Operates with precision gear pump and a check valve
  • Ideal for rams from 4.9 to 14 CUI

Raymarine Type 1 Autopilot Pump Specifications:
  • Voltage: 12v
  • Peak pressure at 12v: 750psi
  • RAM capacity: 4.9-14 CUI
  • Peak flow rate: 67 CUI/min
  • Average power consumption: 24w
  • Dimensions (LxWxH): 175 x 103 x 89mm

Note:If your system is hydraulic, you'll need to find out the size (in cc) of the hydraulic cylinder ram(s) mounted to the rudder or inboard engined boats, or to the drive unit on outboard engined boats. Your steering system documentation will have this information.
