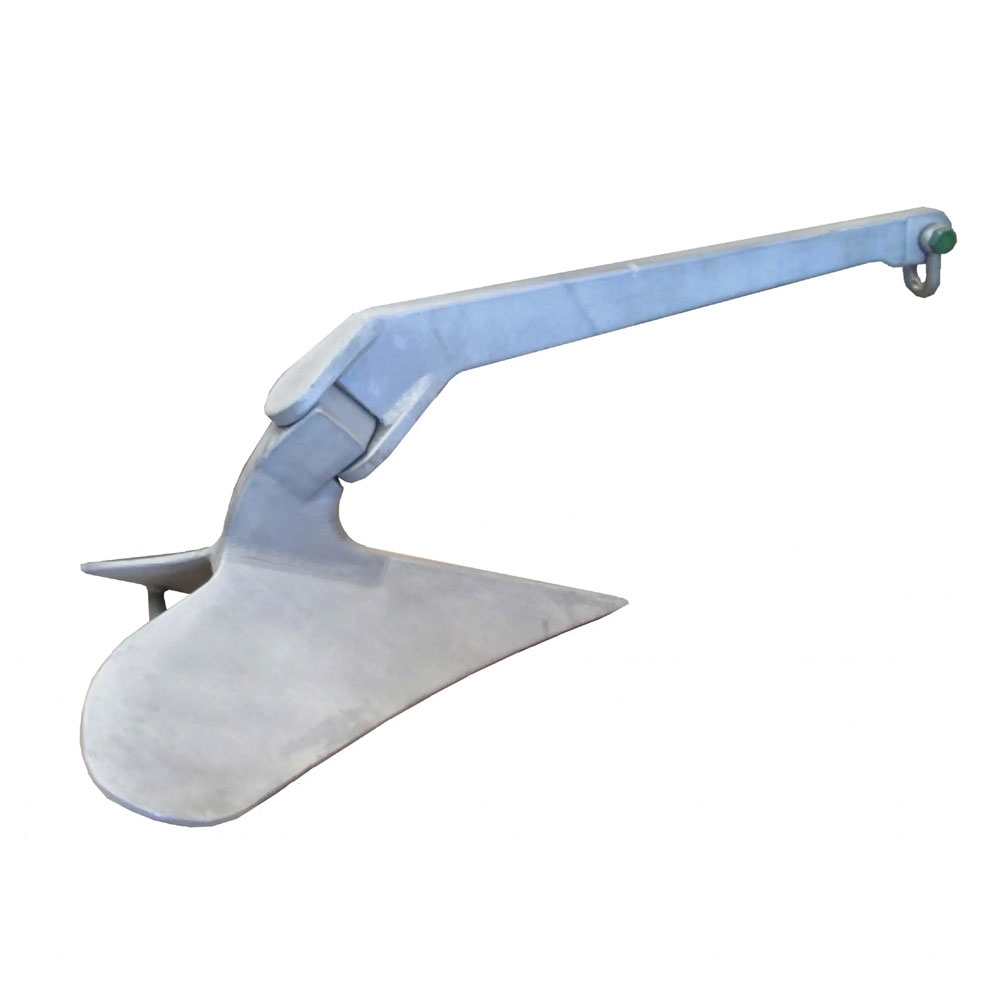

Manson Plough Anchor Galvanised

Anchors you can rely on

Originally designed in 1933, Plough anchors have been proven all over the world providing the best holding in the widest variety of weather and seabed conditions. The Plough's versatility and holding power in most circumstances will out perform all other types of traditional anchors if set correctly. Manson began manufacturing the Plough anchor in 1977 and the Manson Plough has now become Australasia's anchor of choice - synonymous with safe anchoring. It's built tough to withstand the rigours of the southern ocean, it's respected as the ideal all purpose anchor.

The Manson Plough Anchor is certified to Lloyd's Register as a High Holding Power anchor (HHP). This process involves design approval of the anchor drawings, extreme scrutinising of the manufacturing process and finally, seabed testing of the anchor in three different soil substrates. Its hinged shank improves the scope of movement of chain, and a weighted tip delivers a secure hold in sand, weeds and mud.

Manson Plough Anchor Features:

• Fantastic all round anchor

• Material: Galvanised steel

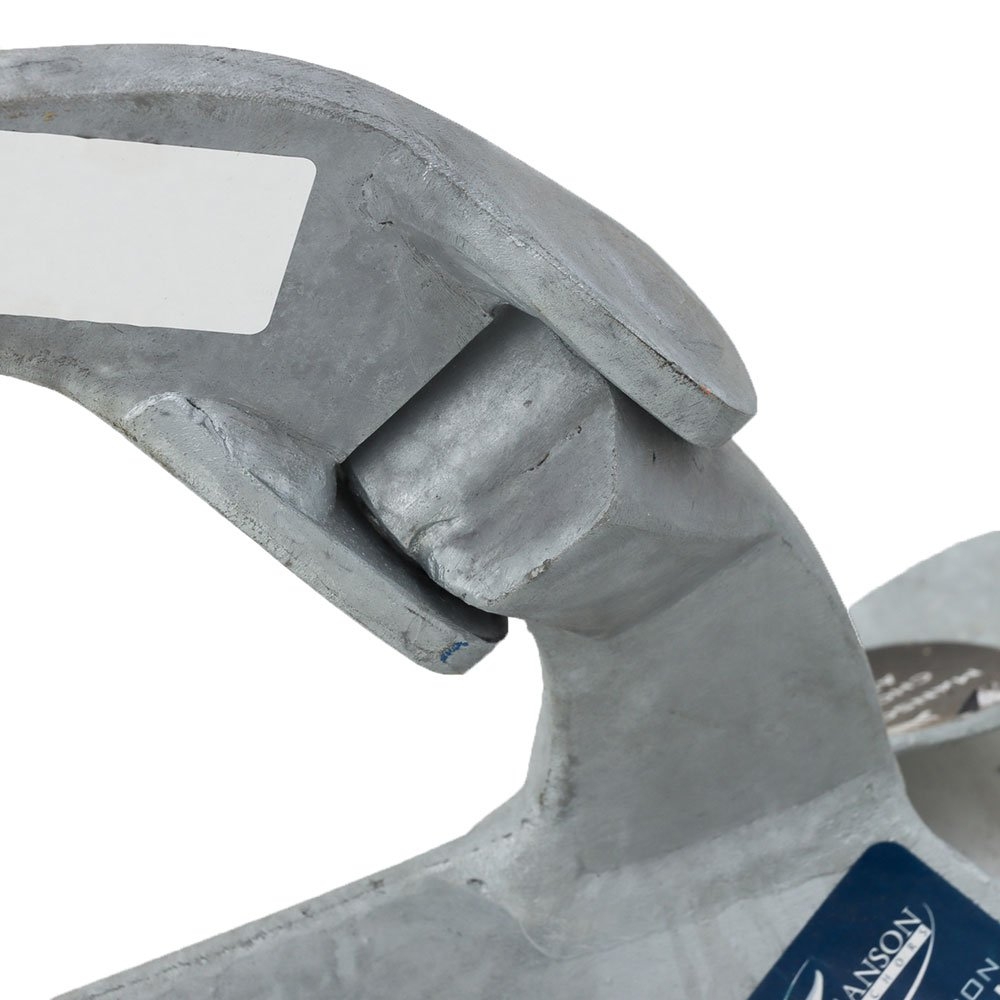

• Hinged shank improves the scope of movement of chain and weighted tip

• Deliver great holding power in sand, weed and mud

• Quickly re-sets in strong wind of current shifts

• The Manson Plough certifies to Lloyd's Register as a High Holding Power anchor

• Each anchor is hand crafted at Manson's specialist facility in Auckland, New Zealand


Manson Plough Anchor Specifications:

Galvanised	LBS	KGS
P010	10 lb	4.5 kg
P015	15 lb	6.7 kg
P020	20 lb	8.9 kg
P025	25 lb	11.2 kg
P030	30 lb	13 kg
P035	35 lb	16 kg
P040	40 lb	18 kg
P045	45 lb	20 kg
P050	50 lb	22 kg
P060	60 lb	27 kg
P080	80 lb	36 kg
P100	100 lb	45 kg
P120	120 lb	54 kg
P150	150 lb	67 kg
P180	180 lb	80 kg
P200	200 lb	89 kg

Manson Plough Anchor Dimensions
