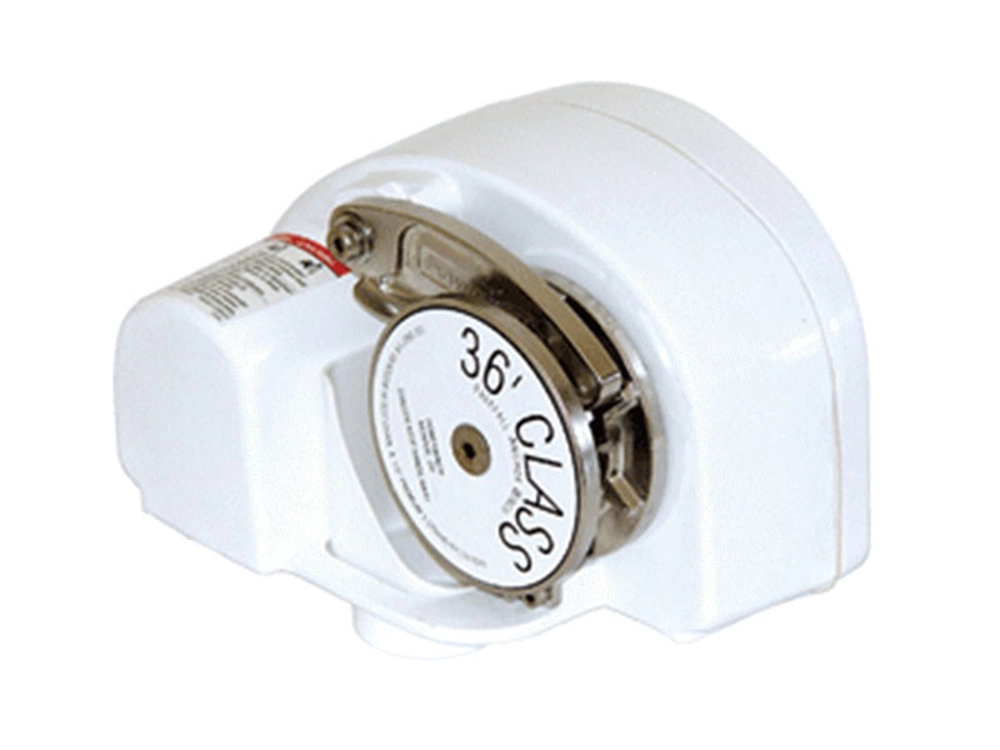

Powerwinch 36' Class Windlass

Automatic helm-operated free-fall windlass

The Powerwinch 36' Class Windlass features a free-fall system that anchors up to 300'/min - up to four times faster than powering down! Its exclusive stainless steel rope and chain guidance system is made to stand up to years of use. One-piece motor plate ensures a smooth power transmission and improved gear life.

Powerwinch 36' Class Windlass Features:

• Free-Fall System anchors up to 300'/min

• Exclusive stainless steel rope & chain guidance system

• Ultra smooth motor uses less amps

• Free-fall does not need battery power so it preserves your battery

• Built with durable stainless steel fasteners

• Watertight seals

• One piece motor plate

• Heat treated oil-impregnated gear systems

• Smoother operation, resists corrosion, lasts longer

• Stainless steel drive shafts

• Replaceable Rode-Glide

• Use tapered back splice


Powerwinch 36' Class Windlass Specifications:

• Unit Weight: 22 lbs

• Retrieval Speed: 80' / minute

• Line Size: 1/2" Powerwinch Premium Medium Lay Nylon

• Overall Dimensions: 10-9/16" L x 7" W x 6-5/16" H

• Pulling Power: 775 lbs

• Anchoring Speed: Up to 250' / minute

• Chain Size: 1/4" Hi-test ACCO G4

• Rope & Chain System: Electro-Plated Stainless Steel

• Replaceable Rode-Glide: Engineered Resin

• Helm Operated Control Switch: Rocker

• Avg. Amp Draw (during retrieval): 8-12 amps

• Install Kit: P55800

• Required Wire Size to Battery:8 gauge (50' run) 6 gauge (over 50' run)

• Standard Equipped Thermal Circuit Breaker: 25amp auto reset
