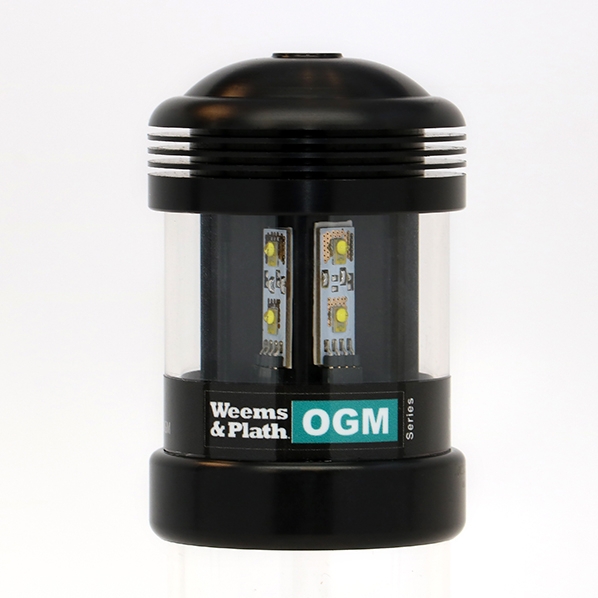

Weems & Plath Q Steaming/Anchor Deluxe LED Navigation Light Black Housing

The Q Collection's Steaming/Anchor DELUXE LED Navigation Light is waterproof and uses 5 times less power than comparable incandescent lights. When used as a steaming/masthead light, it is visible for more than 5 nautical miles and when used as an anchor light, it is visible for more than 2 nautical miles. Like those in the LX Collection, this light is made using solid aluminum construction and a cast acrylic lens to make it last for years without yellowing. O-rings at the top, bottom, and middle of the light ensure a tight, waterproof enclosure. Easy to install and certified for use on power vessels up to 164 feet in length.

New to the Weems and Plath OGM Series, the Q Collection is the next generation of LED Navigation lights and incorporates the latest LED technology using a modular, modern design. All Q Collection lights are upgradeable and more efficient.

Includes a waterproof, quick-disconnect plug with 6-foot mating cable assembly featuring a PVC jacket. Mounting bracket sold separately.

• Visibility: 5+NM Steaming/2+NM Anchor
• Voltage Range: 4-48V DC
• Current Draw: 0.5 Amps at 12V DC for Steaming/Masthead; 0.42 Amps at 12V DC for Anchor
• Power Consumption: 6.5 Watts
• Horizontal Viewing Angle: 225 degrees
• Vertical Viewing Angle: +/- 36 degrees
• Wiring: 3-pin waterproof, quick-disconnect plug with 6-foot mating cable (3 wire)
• Housing Colour: Black
• Certifications: USCG 5NM/2NM, ABYC-A16, COLREGS '72
• Construction: Solid Aluminum, UV Resistant Cast Acrylic
• Made in the USA
• Limited LIFETIME Warranty ()
