Built for durability and quality performance

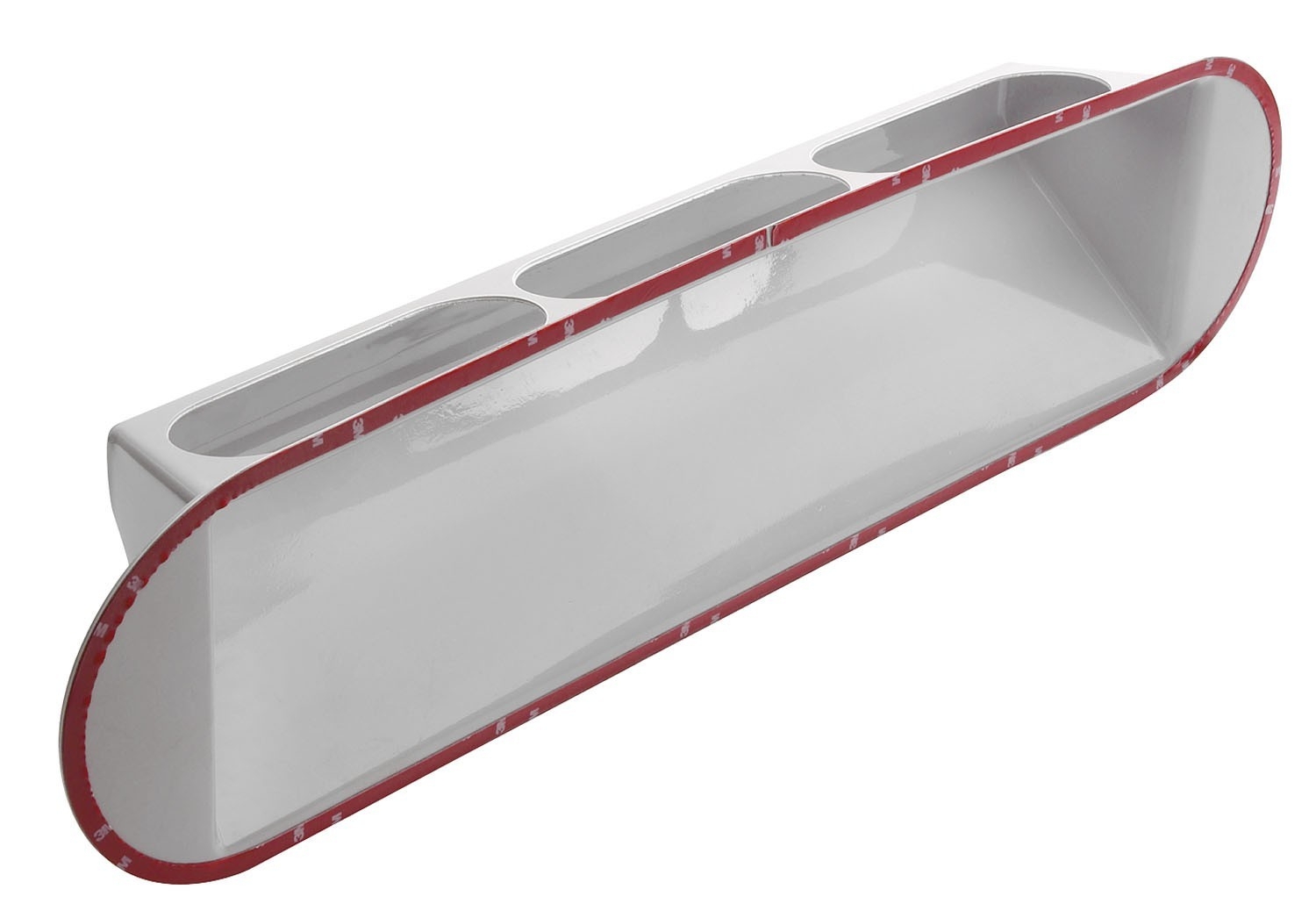

The VETUS Dorade Box is expertly designed for use with ASV vents. Choose from a range of sizes to suit your needs.
VETUS Dorade Box Features:
- Self adhesive attachment
- Designed for ASV suction vents
- Suits ASV Types: 20, 25, 30, 40, 50, 60, 70, 80, 90, 100, 125, 150
ASV Type Dimensions:
| Type | A (mm) | B Cutout (mm) | C (mm) | D Cutout (mm) | E Cutout Radius (mm) | Free Flow Area (sq cm) |
|---|---|---|---|---|---|---|
| ASV 20A | 300 | 280 | 117 | 97 | 48.5 | 83 |
| ASV 25A | 350 | 330 | 117 | 97 | 48.5 | 100 |
| ASV 30A | 360 | 340 | 130 | 110 | 55 | 122 |
| ASV 40A | 450 | 430 | 130 | 110 | 55 | 159 |
| ASV 50A | 490 | 470 | 146 | 126 | 63 | 202 |
| ASV 60A | 570 | 550 | 146 | 126 | 63 | 241 |
| ASV 70A | 590 | 570 | 159 | 139 | 69.5 | 283 |
| ASV 80A | 660 | 640 | 159 | 139 | 69.5 | 321 |
| ASV 90A | 670 | 650 | 172 | 152 | 76 | 363 |
| ASV 100A | 730 | 710 | 172 | 152 | 76 | 400 |
| ASV 125A | 750 | 730 | 198 | 178 | 89 | 503 |
| ASV 150A | 890 | 870 | 198 | 178 | 89 | 603 |
